2-1
2. DISASSEMBLY
2. DISASSEMBLY
2. DISSASSEMBLY
DSC-R1_L2

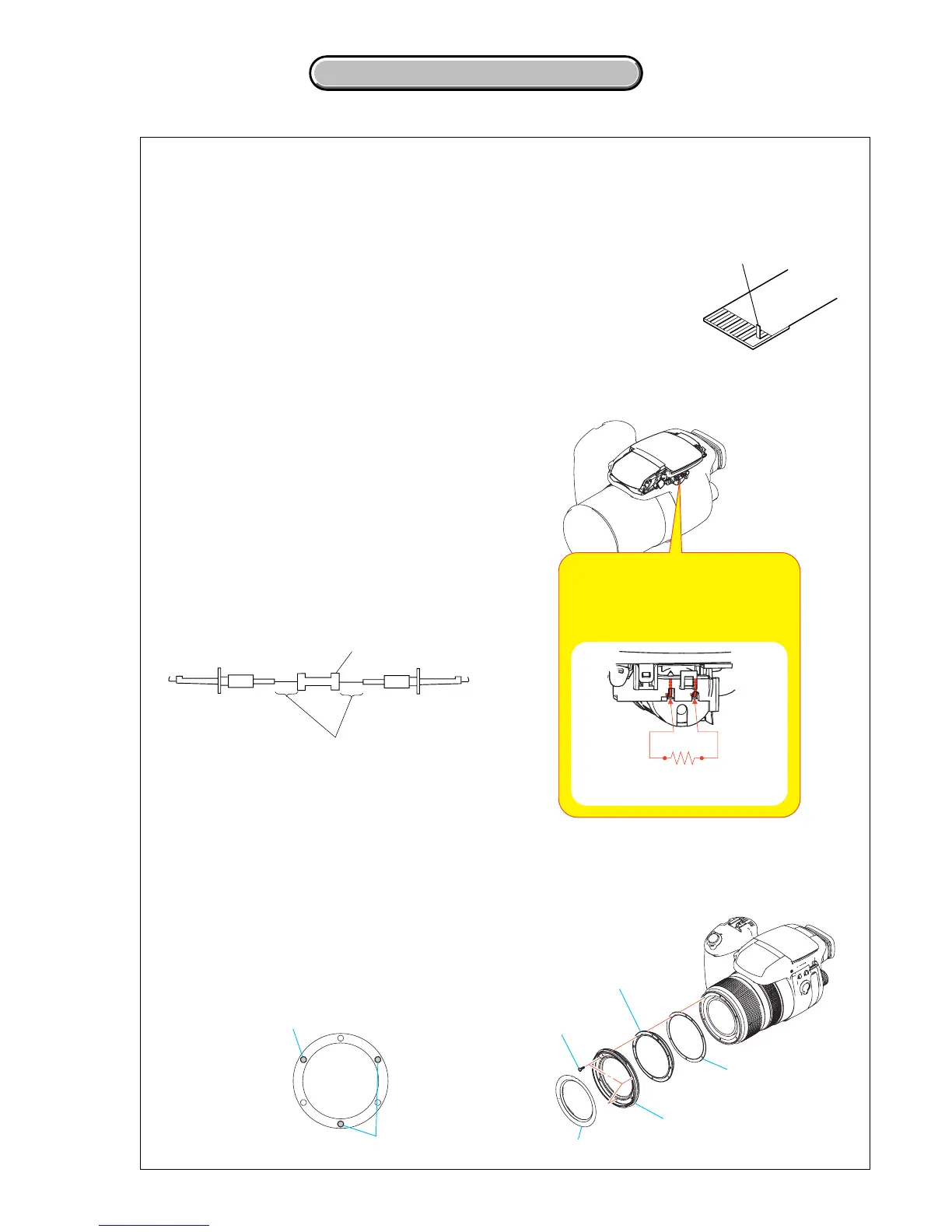

NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, dont’ pull at wire of connector. It is possible that a wire is snapped.
• When installing a connector, dont’ press down at wire of connector.
It is possible that a wire is snapped.
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
DISCHARGING OF THE ST-128 BOARD’S CHARGING CAPACITOR (C104)
The charging capacitor (C104) of the ST-128 flexible board is
charged up to the maximum 300 V potential.
There is a danger of electric shock by this high voltage when the
capacitor is handled by hand. The electric shock is caused by
the charged voltage which is kept without discharging when the
main power of the unit is simply turned off. Therefore, the
remaining voltage must be discharged as described below.
Preparing the Short Jig
To preparing the short jig, a small clip is attached to each end of
a resistor of 1 kΩ /1 W (1-215-869-11).
Wrap insulating tape fully around the leads of the resistor to
prevent electrical shock.
1 kΩ/1 W
Wrap insulating tape.
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between the two points
with the short jig about 10 seconds.
R:1 kΩ/1 W
(Part code: 1-215-869-11)
NOTE FOR DISASSEMBLE LENS ASSEMBLE REPAIR (EK01A)
P2 tapping screw
Position of the screw
Position of the screw
Ornamental plate
1 group lens
1 group spacer
Filter screw frame
When the lens block is disassembled, be sure to disassemble it
with the set erected.
The 1 group lens and the 1 group spacer will be removed, if the
lens block is disassembled with the set laid down as shown in
the right figure.
To Next Page
