Sony DVP-FX97 - 5-2. CIRCUIT VOLTAGE CHART

DVP-FX97/FX980/FX980WM
5-2

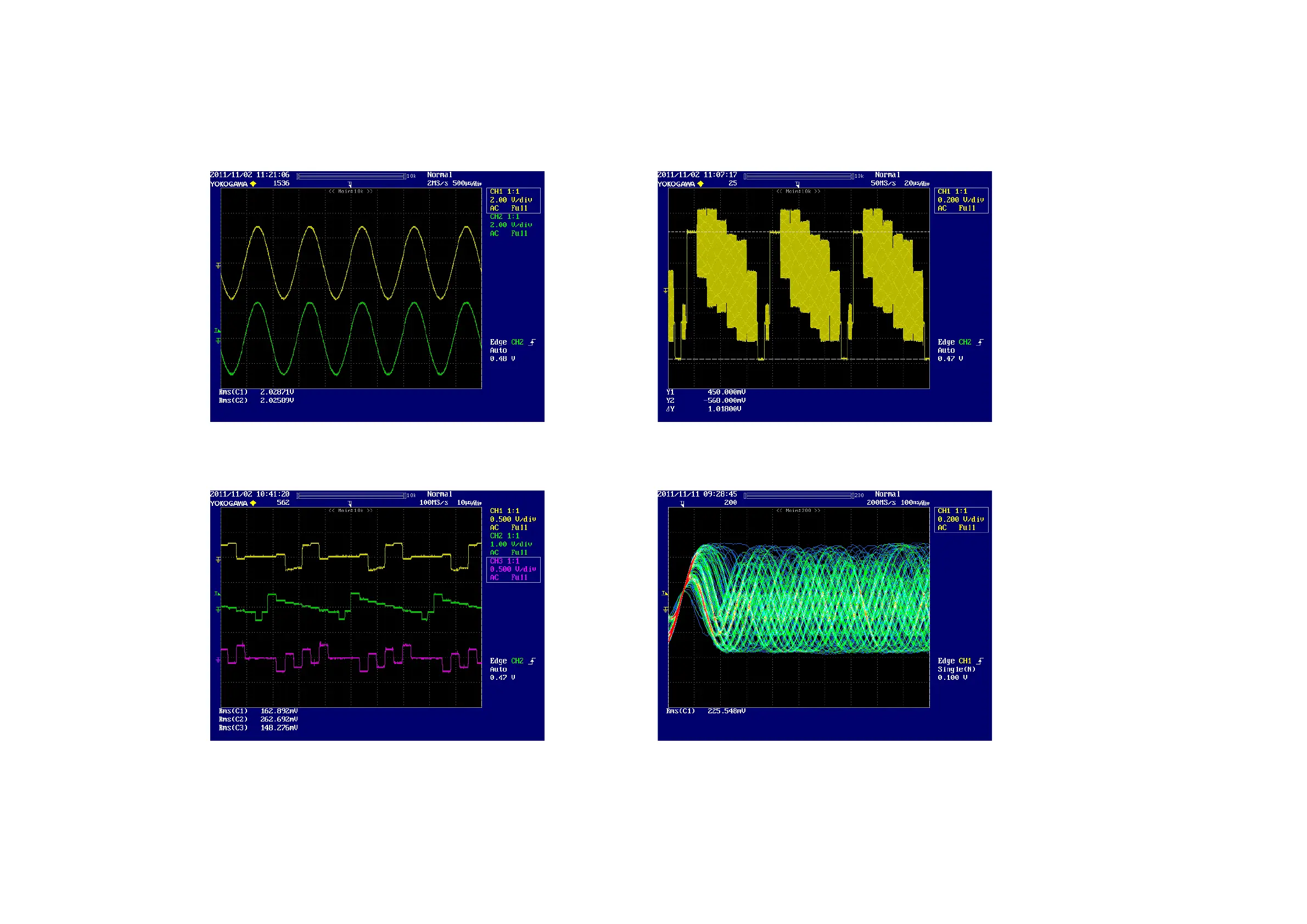

5.Video output waveform (CVBS)
6. Video output waveform (Pr/Y/Pb) 7.RF waveform
4.Audio output waveform (L/R)
AUDIO R(J4 PIN1)
CVBS(J4 PIN3)
Pb (FB20)
Pr ( FB16)
RFIP (U4 PIN 123)
AUDIO L(J4 PIN2)
Y (FB17)
