Sony DVP-FX97 - SECTION 9 REPAIR PARTS LIST; 9-1. EXPLODED VIEWS

DVP-FX97/FX980/FX980WM
SECTION 9
REPAIR PARTS LIST

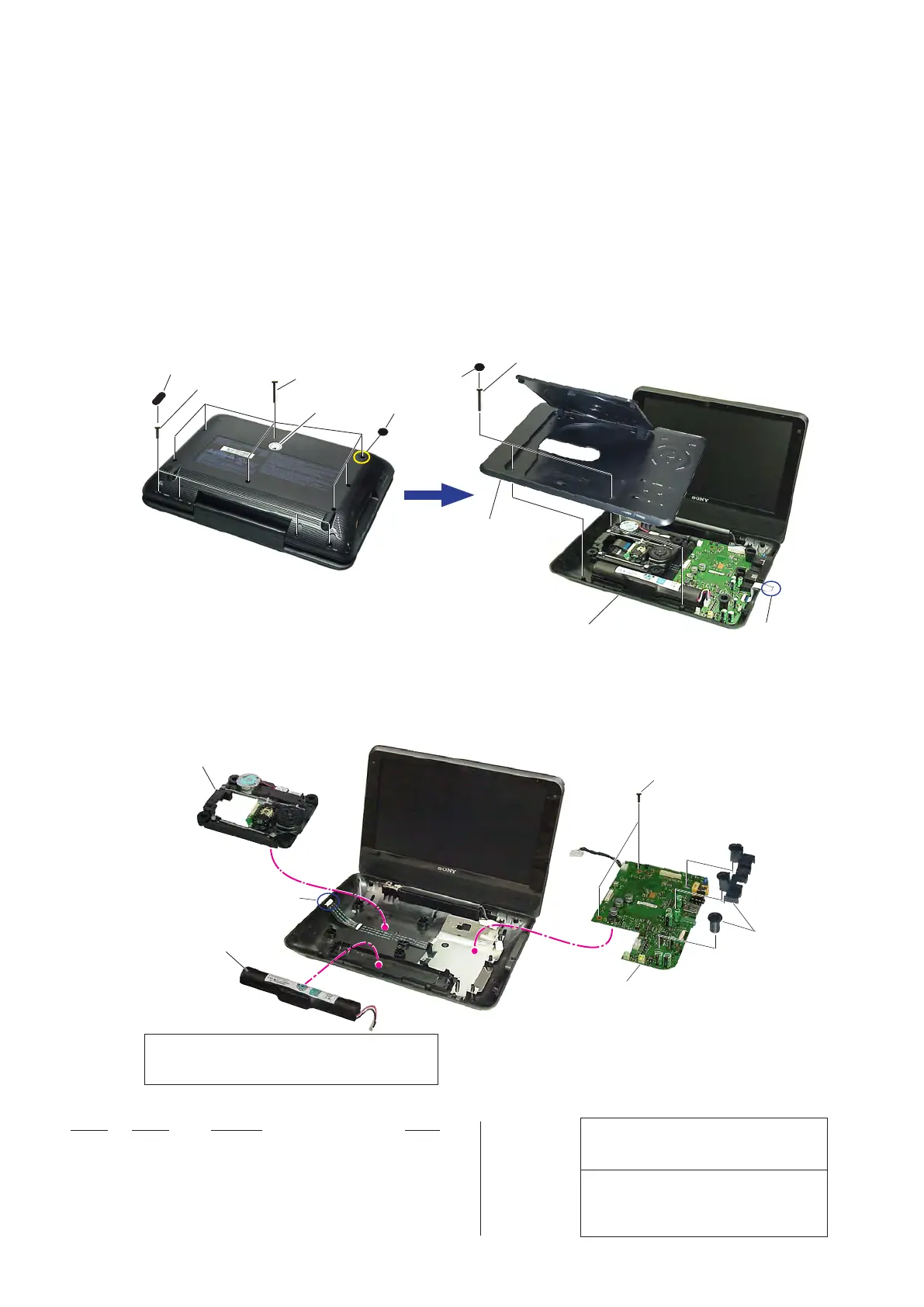

9-1. EXPLODED VIEWS
9-1
Ref. No. Part No. Description Remark
1 9-885-103-46 FOOT RUBBER (091-0001-261)
2 9-885-108-32 SHEET,OPEN PREVE(086-0001-041)
3 9-885-167-83 SCREW PAD (091-0001-1552)
0 4 9-885-167-61 TRAVERSE ASSY (CMS-S76CFV3G-M))
0 5 9-885-164-31 BATTERY (1002000004582)
6 9-885-167-65 MAIN BOARD ASSY(02-01049801-00
9-1-1. BOTTOM BLOCK
NOTE:
• -XXand -Xmeanstandardizedparts, so they
mayhavesomedifferencefromtheoriginalone.
• ColorIndicationofAppearanceParts
 Example:
 KNOB,BALANCE(WHITE)...(RED)
  ↑ ↑
  PartsColor  Cabinet’sColor
• Itemsmarked“*”arenotstockedsincetheyare
seldomrequiredforroutineservice.Somedelay
shouldbeanticipatedwhenorderingtheseitems.
• Themechanicalpartswithnoreferencenumber
intheexplodedviewsarenotsupplied.
• Accessoriesandpackingmaterialsaregivenin
thelastoftheelectricalpartslist.
not supplied
not supplied
not supplied
not supplied
not supplied
3
9-1-2. TRAVERSE UNIT/ MAIN BOARD/ BATTERY
4
not supplied
not supplied
6
not supplied
1
Thecomponentsidentifiedbymark0ordotted
linewithmark0arecriticalforsafety.
Replaceonlywithpartnumberspecified.
Lescomposantsidentifiésparunemarque0
sontcritiquespourlasécurité.
Nelesremplacerqueparunepièceportantle
numérospécifié.
• Abbreviation
 US :USAmodel
 CND :Canadianmodel
5
【
bottom
】
not supplied
2
1
CAUTION
Danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type.
