DVP-FX97/FX980/FX980WM
SECTION 1
DISASSEMBLY

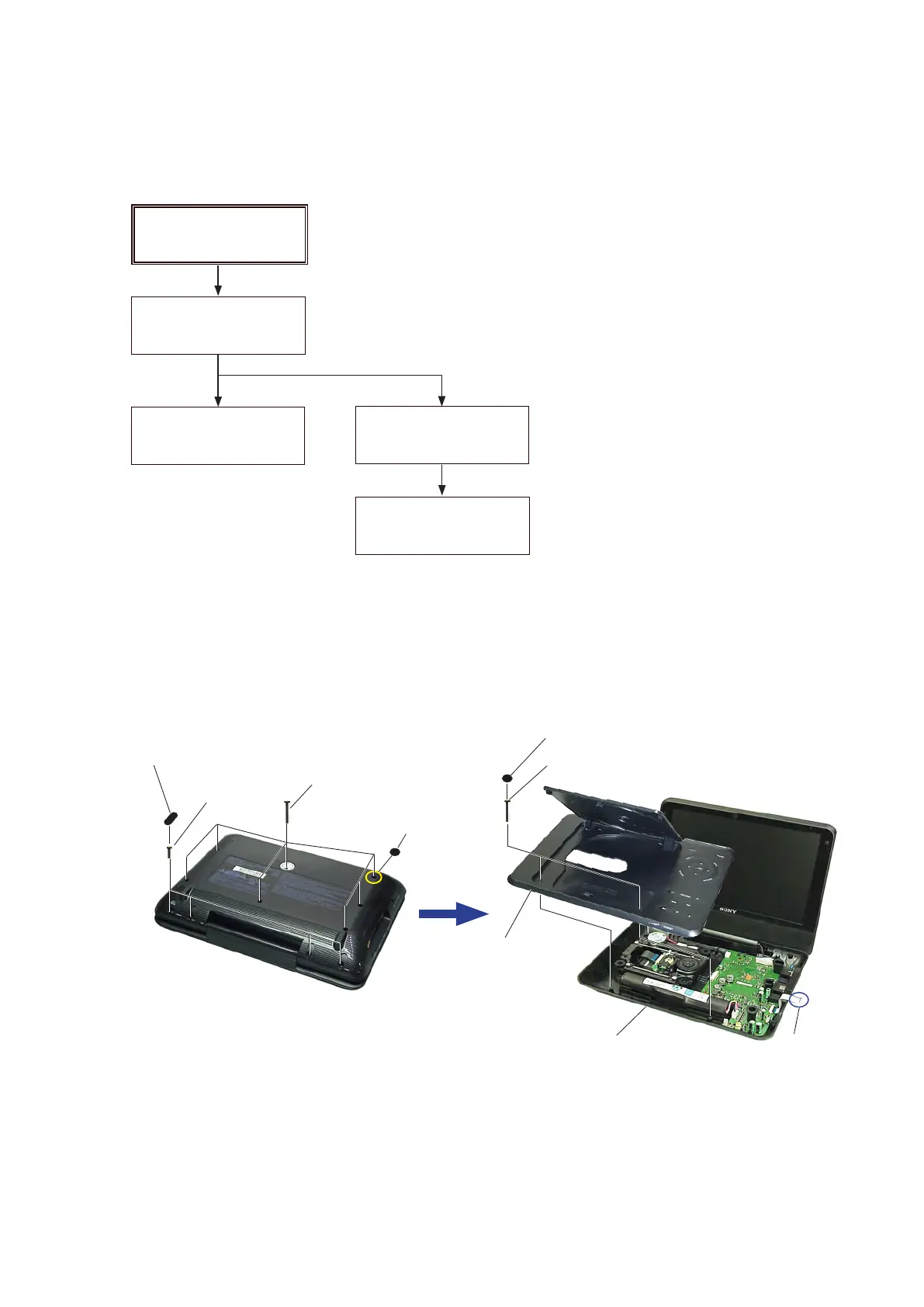

・This set can be disassembled in the order shown below.
1-1.

DISASSEMBLY FLOW
NOTE:
Follow the disassembly procedure in the numerical order given.
1-1

SET

1-2. BOTTOM BLOCK
(Page 1-1)

1-4. UPPER BLOCK
(Page 1-2)

1-3. TRAVERSE UNIT/
MAIN BOARD/
BATTERY (Page 1-2)
1-2.

BOTTOM BLOCK
①
four screw pads
②
seven screws
(TS2 x 16)
④
two screws(TS2 x 16)
③
two screw pads
【
bottom
】
①
one foot rubber
②
four screws
(TS2 x 6)
⑥
BTM cover
⑥
UP cover
⑤
FFC

1-5. LCD SCREEN/
LCD BOARD
(Page 1-3)
