Chapter 3 Preparations
Chapter 3 Preparations 3-5
Connections for recording from an external VTR (player)

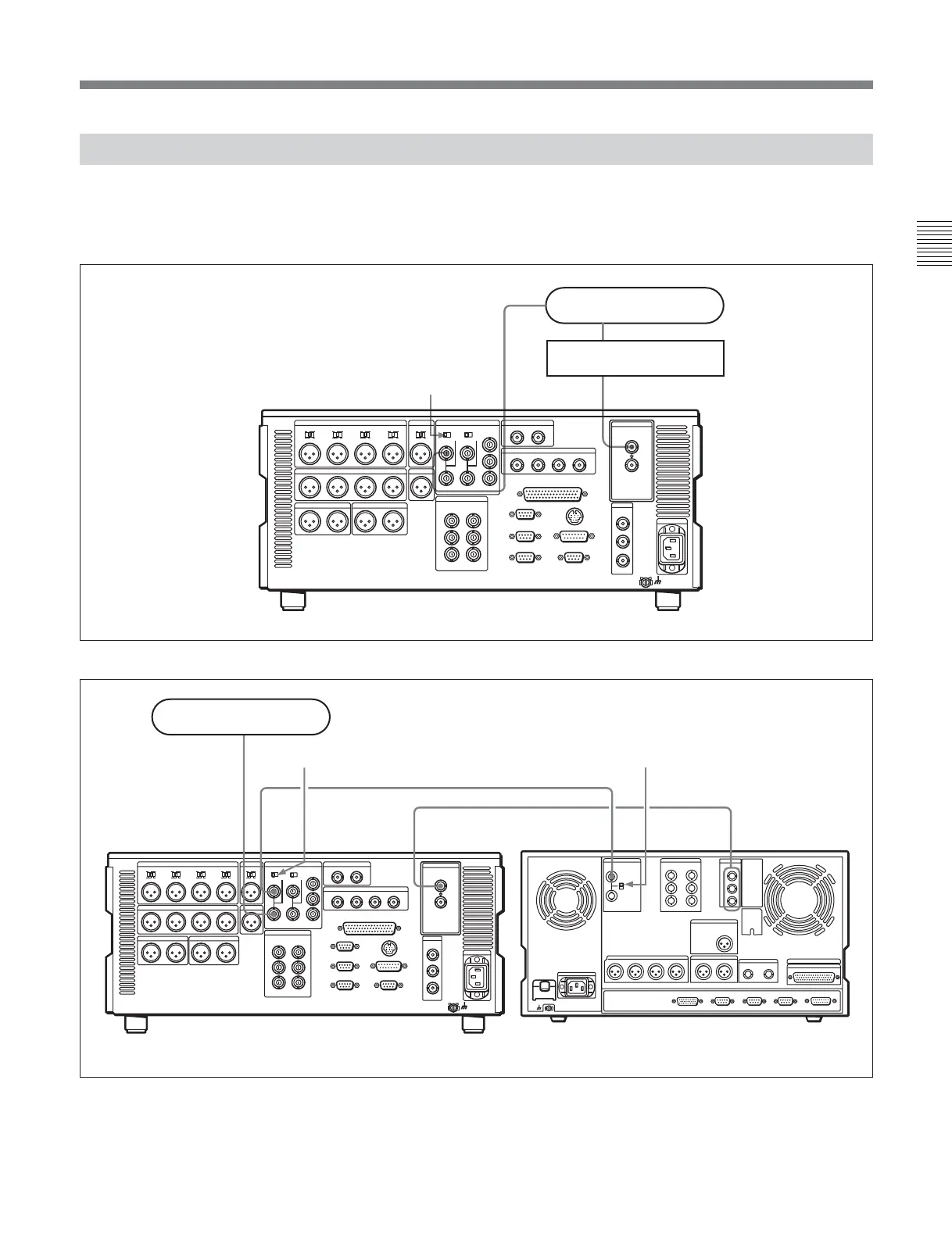

3-2-3 Connecting Reference Signals
Connect reference signals as shown below, according
to the way in which the unit is to be used.
Connections for recording from a switcher or signal generator
75Ω 75Ω
SDI INPUT
REF. VIDEO
INPUT
SDI OUTPUT
REF. VIDEO
INPUT
SDI INPUT
REF. VIDEO
INPUT
75Ω 75Ω
Reference signal
Switcher or signal generator
DVW-M2000/M2000P/2000/2000P
Reference signal
DVW-M2000/M2000P/2000/2000P (recorder)
75 Ω termination switch: OFF
75 Ω termination switch: ON
DNW-A65/A65P (player)
75 Ω termination switch: ON
To Next Page
