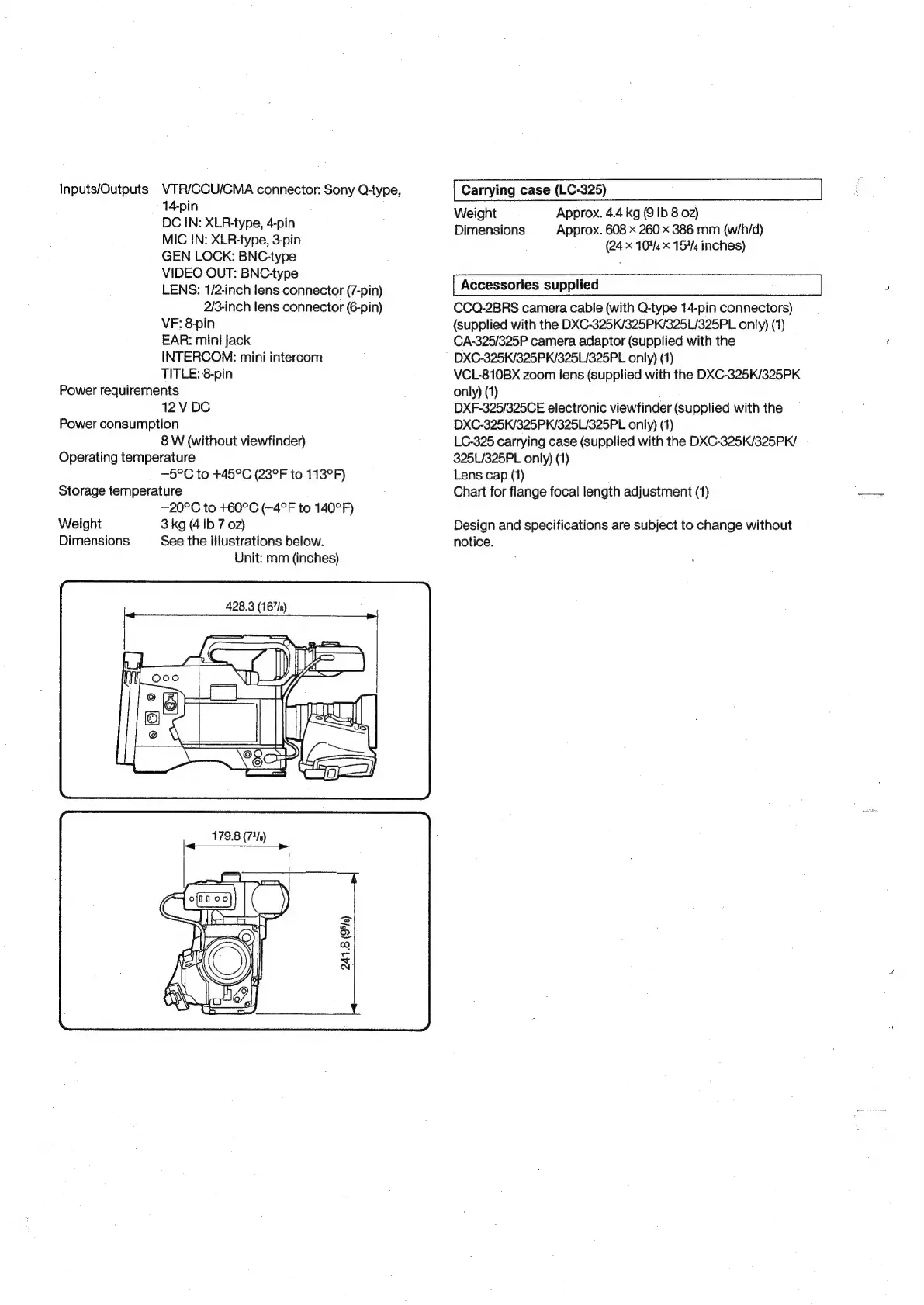

Sony DXC-325P - Page 2

Inputs/Outputs VTR/CCU/CMA connector: Sony Q-type,
14-pin
DC IN: XLR-type, 4-pin
MIC IN: XLR-type, 3-pin
GEN LOCK: BNC-type
VIDEO OUT: BNC-type
LENS: 1/2-inch lens connector (7-pin)
2/3-inch lens connector (6-pin)
VF: 8-pin
EAR: mini jack
INTERCOM: mini intercom
TITLE: 8-pin
Power requirements
12V DC
Power consumption
8 W (without viewfinder)
Operating temperature
—5°C to +45°C (23°F to 113°F)
Storage temperature
—20°C to +60°C (—4°F to 140°F)
Weight 3 kg (4 Ib 7 o2)
Dimensions See the illustrations below.
Unit: mm (inches)
428.3 (167/s)
179.8 (744)
—
241.8 (95s)
Carrying case (LC-325)
Weight Approx. 4.4 kg @ Ib 8 oz)
Dimensions Approx. 608 x 260 x 386 mm (w/h/d)
(24 x 1044 x 1544 inches)
Accessories supplied
CCQ-2BRS camera cable (with Q-type 14-pin connectors)
(supplied with the DXC-325K/325PK/325L/325PL only) (1)
CA-325/325P camera adaptor (supplied with the
DXC-325K/325PK/325L/325PL only) (1)
VCL-810BX zoom lens (supplied with the DXC-325K/325PK
only) (1) :
DXF-325/325CE electronic viewfinder (supplied with the
DXC-325K/325PK/325L/325PL only) (1)
LC-325 carrying case (supplied with the DXC-325K/325PK/
325L/325PL only) (1)
Lens cap (1)
Chart for flange focal length adjustment (1)
Design and specifications are subject to change without
notice.
