Sony ECM-929LT - Remote Control; Microphone Stand; Connections; More about Microphone Use

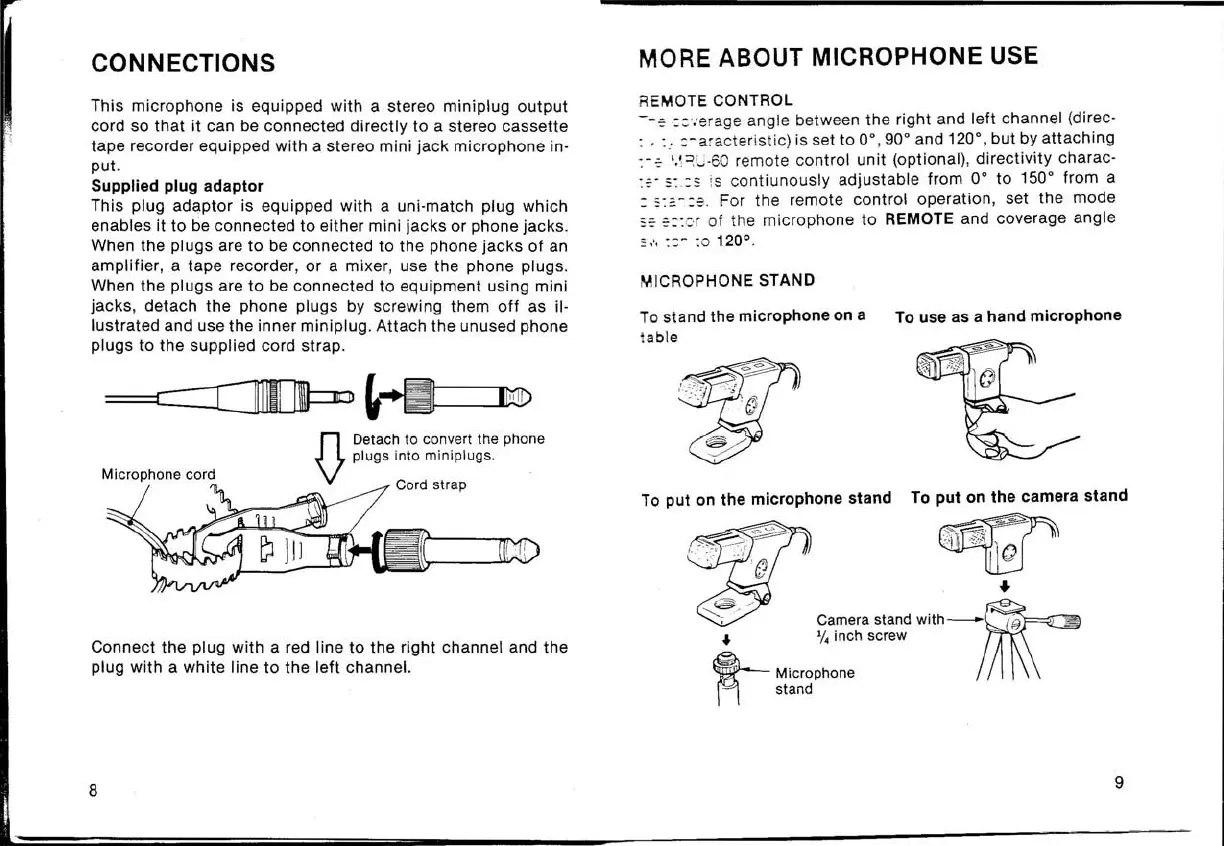

CONNECTIONS
This microphone is equipped with a stereo miniplug output
cord so that it can be connected directly to a stereo cassette
tape recorder equipped with a stereo mini jack microphone in-
put .
Supplied plug adaptor
This plug adaptor is equipped with a uni·match plug which
enables it to be connected to either mini jacks or phone jacks.
When the
plugs are to be connected to the phone jacks of an
amplifier, a tape recorder, or a mixer , use the phone plugs.
When the plugs are to be connected to equipment using mini
jacks , detach the phone plugs by screwing them off as il-
lustrated and use the inner mini plug. Attach the unused phone
plugs to the supplied cord strap .
Microphone cord
n Detach to convert the phone
V plugs into miniplugs.
Cord strap
Connect the plug with a red line to the right channel and the
plug with a white line to the left channel.
8
MORE ABOUT MICROPHONE USE
REMOTE CONTROL
--~:: ' ; er age angle between the right and left channel (direc-
:
. : .. : -a'a ct eristic) is set to 0°,90° and 120°, but by attaching
:- ~ ',\ ~ U ·6 0 remote control unit (optional), directivity charac-
::'- ~: , :s ~ s contiunously adjustable from 0° to 150° from a
: s:=.- :~, For the remote control operation, set the mode
s:' ~::: ' r of the microphone to REMOTE and coverage angle
:: ,'. ::- :0120°,
MICROPHONE STAND
To stand the microphone on a
l able
To use as a hand microphone
To put on the microphone stand To put on the camera stand
9
