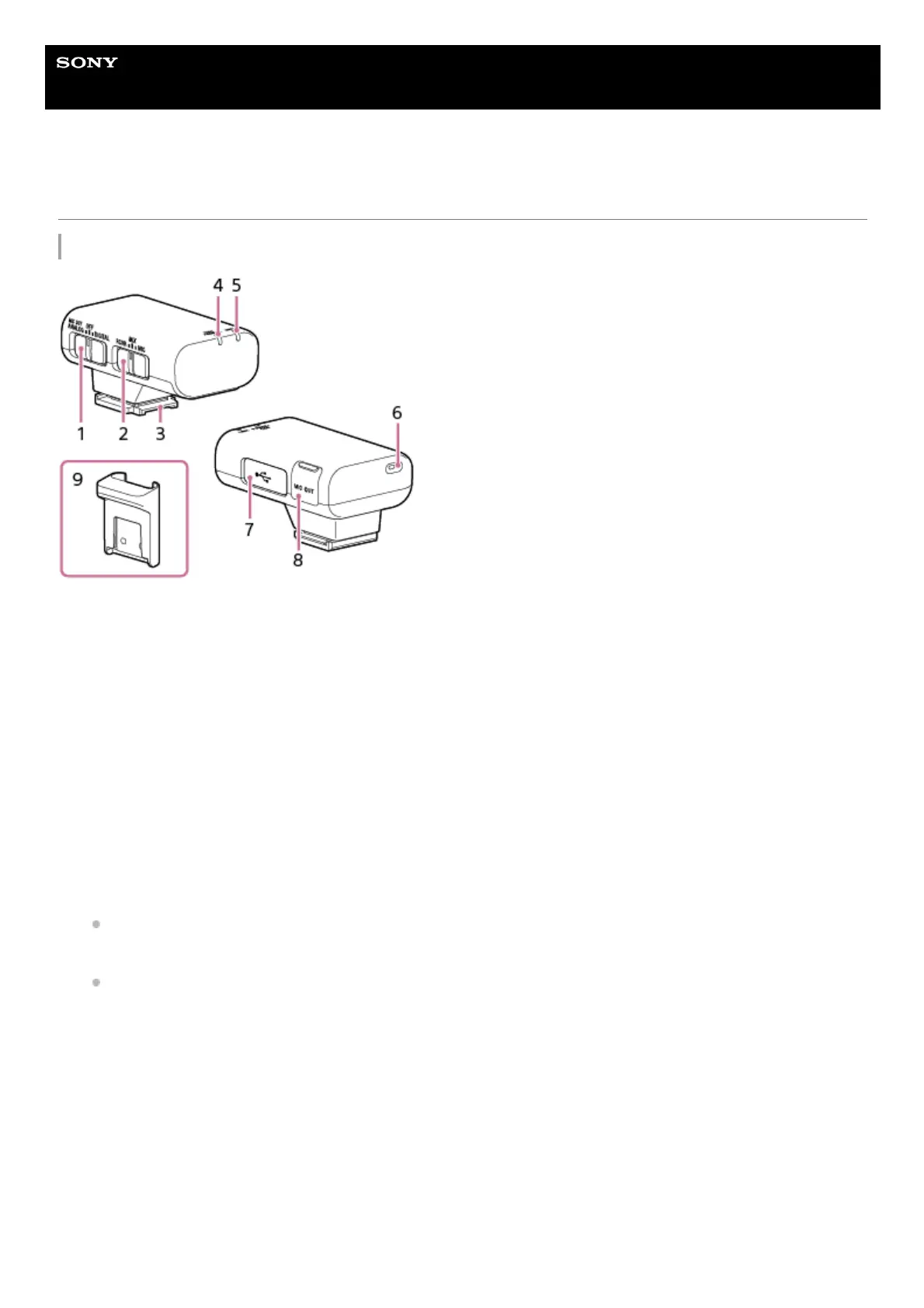

Locating parts and controls
Receiver
Slide switch (MIC OUT ANALOG/Power OFF/DIGITAL)
Select “MIC OUT ANALOG” (analog audio output), “OFF” (power off), or “DIGITAL” (digital audio output).
If your camera is compatible with the digital audio interface of the Multi Interface Shoe, set the switch to “DIGITAL.”
This allows the receiver to pass the received audio to the camera with digital signals and provides audio recording
with minimum noise insertion.
When you do not intend to use the receiver, select “OFF” with this switch to conserve the battery power.
1.
Mode switch (RCVR/MIX/MIC)
Before you start recording with the camera, select a receiver mode with this switch to specify the microphone to use
for recording.
2.
Multi Interface foot3.
Power lamp (Green: Powered, Orange: Charging the battery)
Indicates the power state of the receiver or the battery charge state.
While the receiver is turned off, connecting the receiver to a computer with the supplied micro USB cable starts
charging the receiver's built-in battery and turns on the power lamp in orange.
The orange blinking power lamp indicates that battery charging is needed.
4.
LINK lamp
Indicates the connection state between the receiver and the microphone.
5.
Internal microphone6.
Micro USB terminal
Connect the supplied micro USB cable to supply power to the receiver or charge the battery.
7.
Microphone out jack
You can record audio by connecting the receiver to a camera with the supplied recording cable.
To use this jack, be sure to select “MIC OUT ANALOG” with the slide switch.
8.
To Next Page
