Connections
[1-1]
VHF/UHF
IN
i ‘Fy
© © © VHF/UHF OUT
TV
[©] VHF
UHF ©
VHF/UHF
Notes
¢ Unplug each unit from the wail outlet before
making the following connections.
e Make sure the connections are secure. A loose
connection may cause a noisy picture.

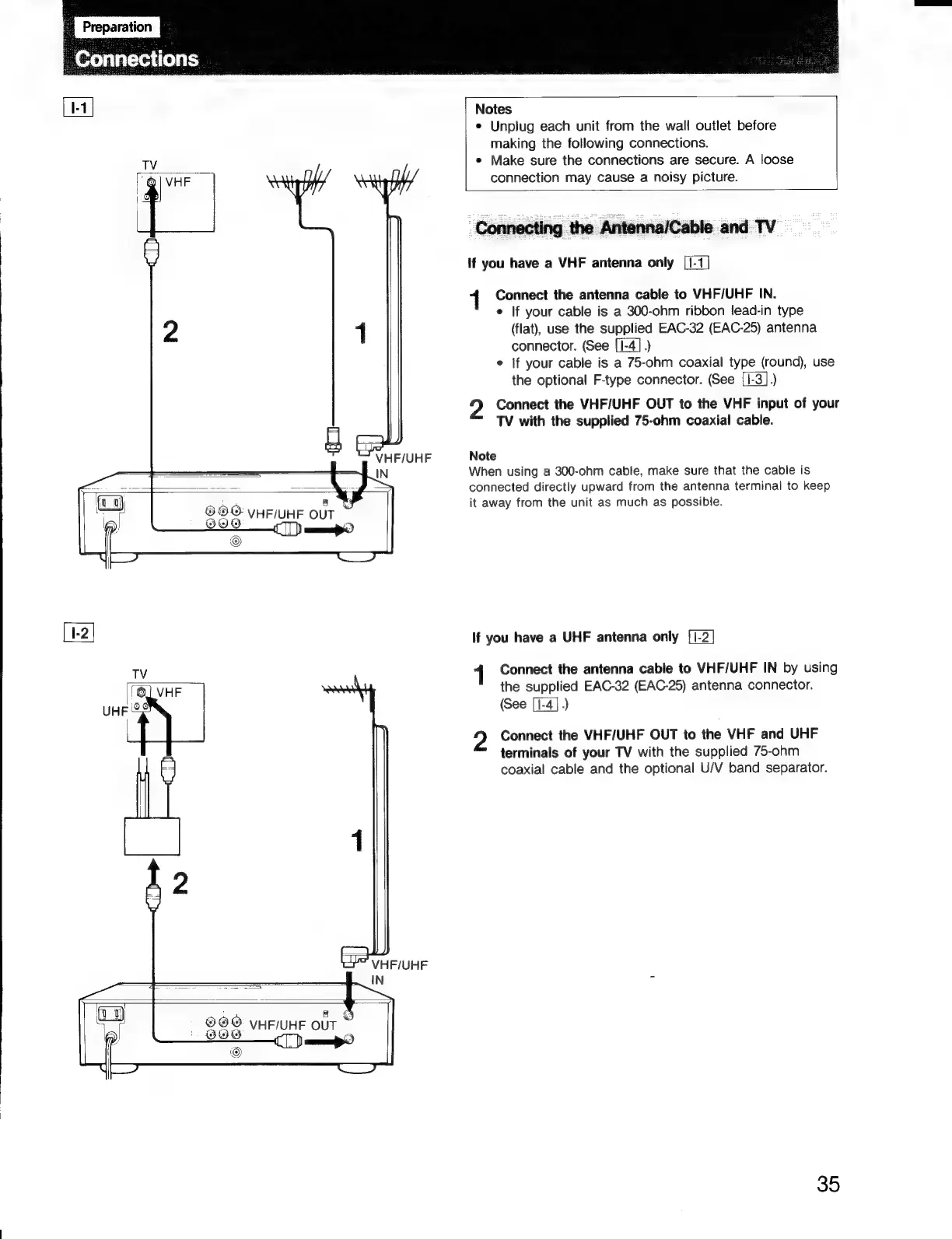

Connecting the Antenna/Cable and TV
4
If you have a VHF antenna only
Connect the antenna cable to VHF/UHF IN.
e If your cable is a 300-ohm ribbon lead-in type
(flat), use the supplied EAC-32 (EAC-25) antenna
connector. (See )
¢ If your cable is a 75-ohm coaxial type (round), use
the optional F-type connector. (See 1-3].)
2 Connect the VHF/UHF OUT to the VHF input of your
TV with the supplied 75-ohm coaxial cable.
Note
When using a 300-ohm cable, make sure that the cable is
connected directly upward from the antenna terminal to keep
it away from the unit as much as possible.
If you have a UHF antenna only
1 Connect the antenna cable to VHF/UHF IN by using
the supplied EAC-32 (EAC-25) antenna connector.
(See [1-4] .)
2 Connect the VHF/UHF OUT to the VHF and UHF
terminals of your TV with the supplied 75-ohm
coaxial cable and the optional U/V band separator.
35
