[1-3]

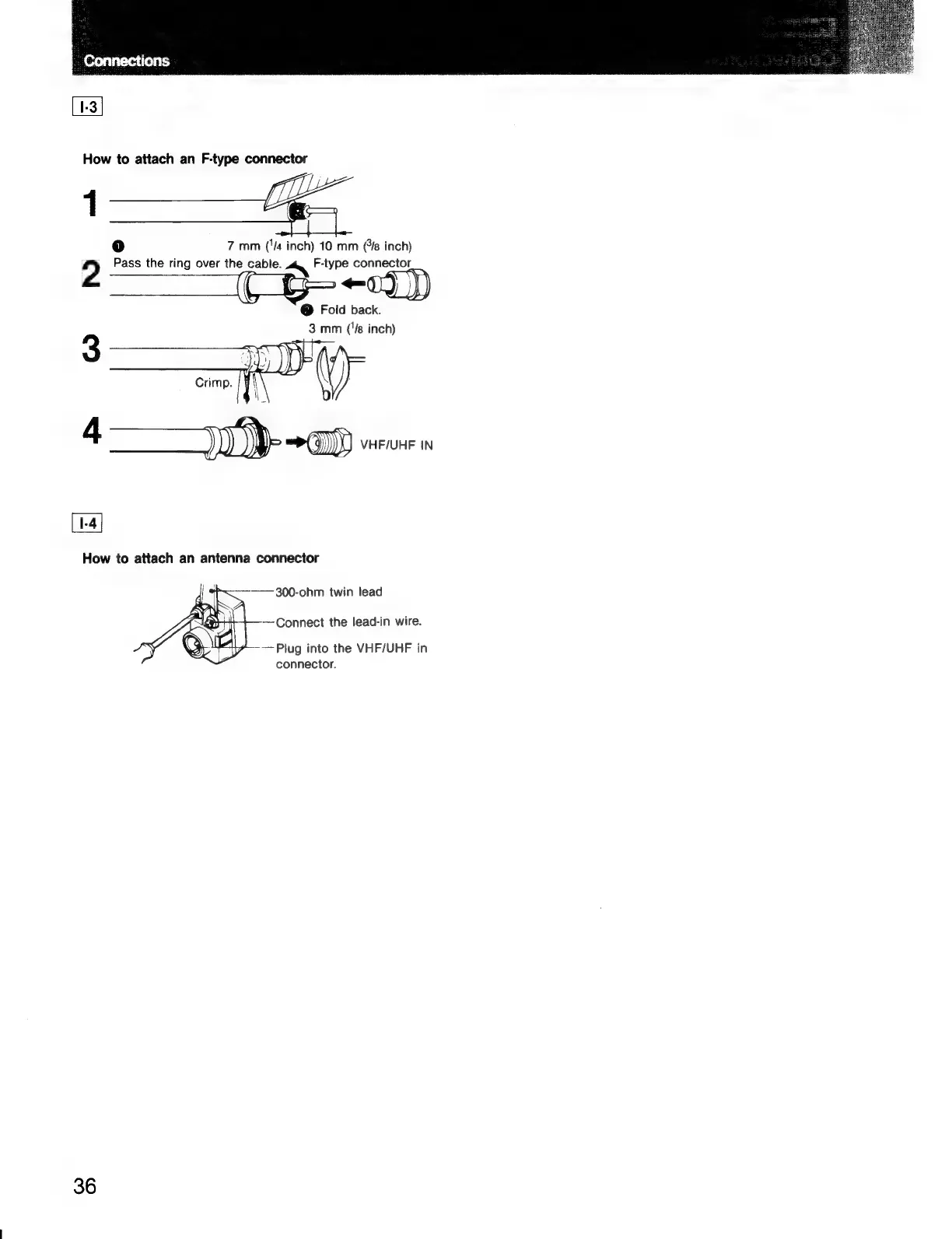

How to attach an F-type connector
1
7) 7 mm ('/4 inch) 10 mm (ye inch)
2 Pass the ring over the cable. an F-type connector.
=
@ Fold back.
3 mm (‘is inch)
1-4
How to attach an antenna connector
————— 300-ohm twin lead
—Connect the lead-in wire.
— Plug into the VHF/UHF in
connector.
36
