1. Charging/Notification light
2. Headset jack
3. NFC™ detection area
4. Front camera lens
5. Ear speaker/Second loudspeaker
6. Second microphone
7. Proximity/Light sensor
8. Power key/Fingerprint sensor*
9. Volume/Zoom key
10. Camera key
11. Main loudspeaker
12. Main microphone
13. Charger/USB Type-C™ cable port
14. Wi-Fi®/Bluetooth antenna area
15. Main camera lens
16. Laser AF sensor
17. RGBC-IR sensor
18. Flashlight
19. GPS antenna area
20. Nano SIM/Memory card slot cover
Fingerprint functionality is not available in the US market.
Assembly
Your device only supports nano SIM cards. The nano SIM card and the memory card
have separate slots in the same holder. Make sure you don’t confuse the two. The
combined SIM/Memory card slot allows you to use either a memory card or an
additional SIM card.
To prevent data loss, make sure you turn off your device or unmount the memory card before
you drag out the holder to remove the nano SIM card (or cards) or memory card from the
device.
To insert one or two nano SIM cards
1
Using your fingernail, drag out the SIM/Memory card tray.
2

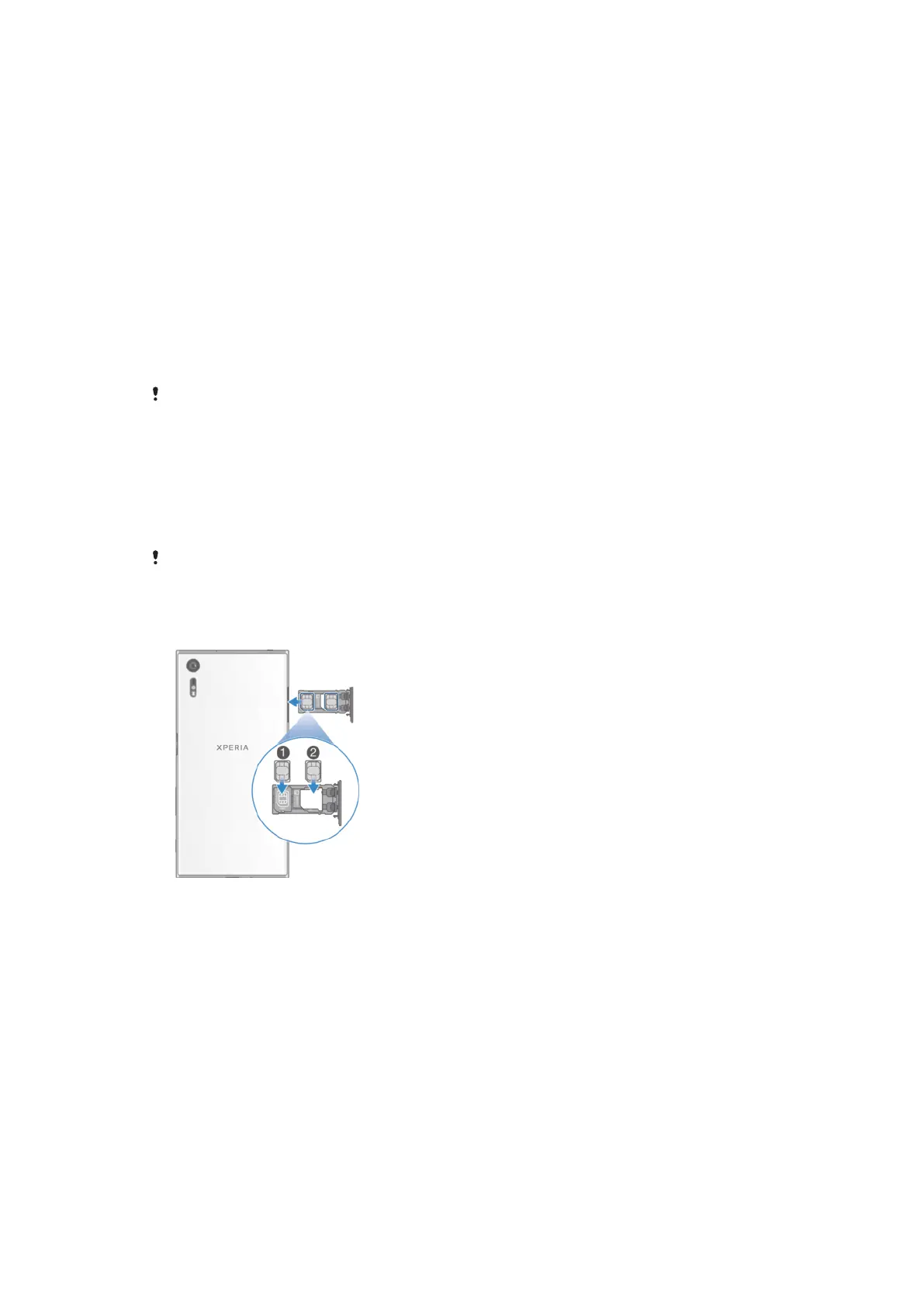

Firmly place the primary SIM card (SIM 1) in the correct orientation in position
(1) as shown in the illustration.
3
Firmly place the additional SIM card (SIM 2) in the correct orientation in
position (2) as shown in the illustration.
4
Gently push the tray back into the slot until it fits into place.
