Specifications
FCB-EH6500(GB) A-EEP-100-11(1)
LVDS receiver IC (example: THC63LVD104C)
Pin assignment LVDS input - CMOS/TTL output
Pin No. Description Signal Pin No. Description Signal
1 GND1 33
2 TEST 34
3 35 RB3 FLD
4 36 RB2 VD
5 37 VCC3
6 38 RB1 HD
7 39 RB0 Y7
8 40 RA6 Y6
9 41 RA5 Y5
10 42 RA4 Y4
11 43 RA3 Y3
12 44 GND4
13 45 RA2 Y2
14 46 RA1 Y1
15 47 RA0 Y0
16 48 VCC4
17 RD4 49 RA− RXIN0−
18 RD3 50 RA+ RXIN0+
19 RD2 51 RB− RXIN1−
20 RD1 52 RB+ RXIN1+
21 RD0 C7 53 LVCC
22 RC6 C6 54 RC− RXIN2−
23 VCC2 55 RC+ RXIN2+
24 RC5 C5 56 PCLK− RXCLKIN−
25 RC4 C4 57 PCLK+ RXCLKIN+
26 RC3 C3 58 LGND
27 RC2 C2 59 RD− RXIN3−
28 RC1 C1 60 RD+ RXIN3+
29 RC0 C0 61 RE−
30 GND3 62 RE+
31 CLKOUT CLK 63
32 64

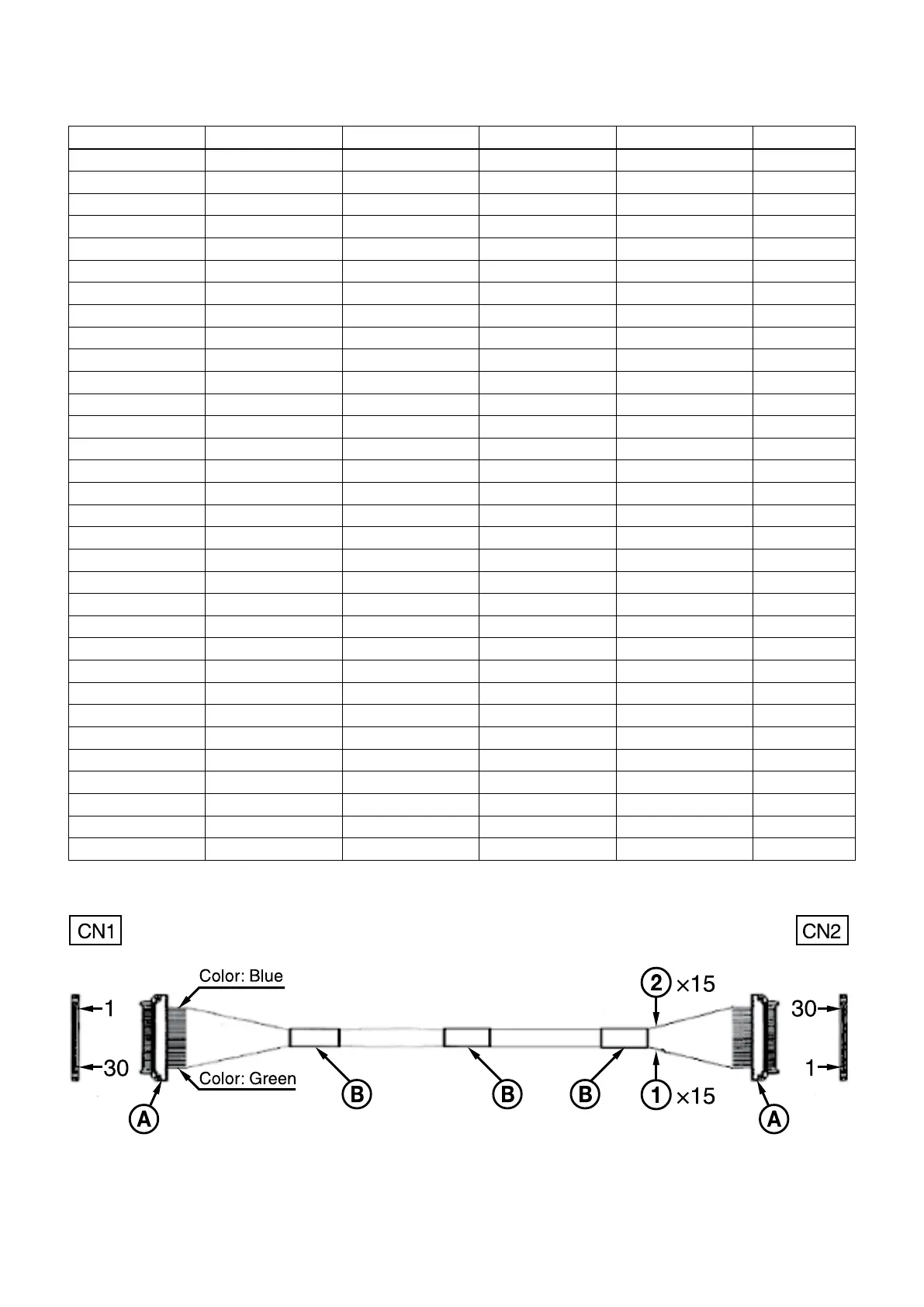

Cable reference specifications (crossover)
• Recommended connectors and cables
Cable green: #42 thin coaxial cable
Cable blue: #42 thin coaxial cable
Connector: USL20-30S (KEL)
Binding tape

