CONNECTIONS . . . . ,. · · · . · · .
,,

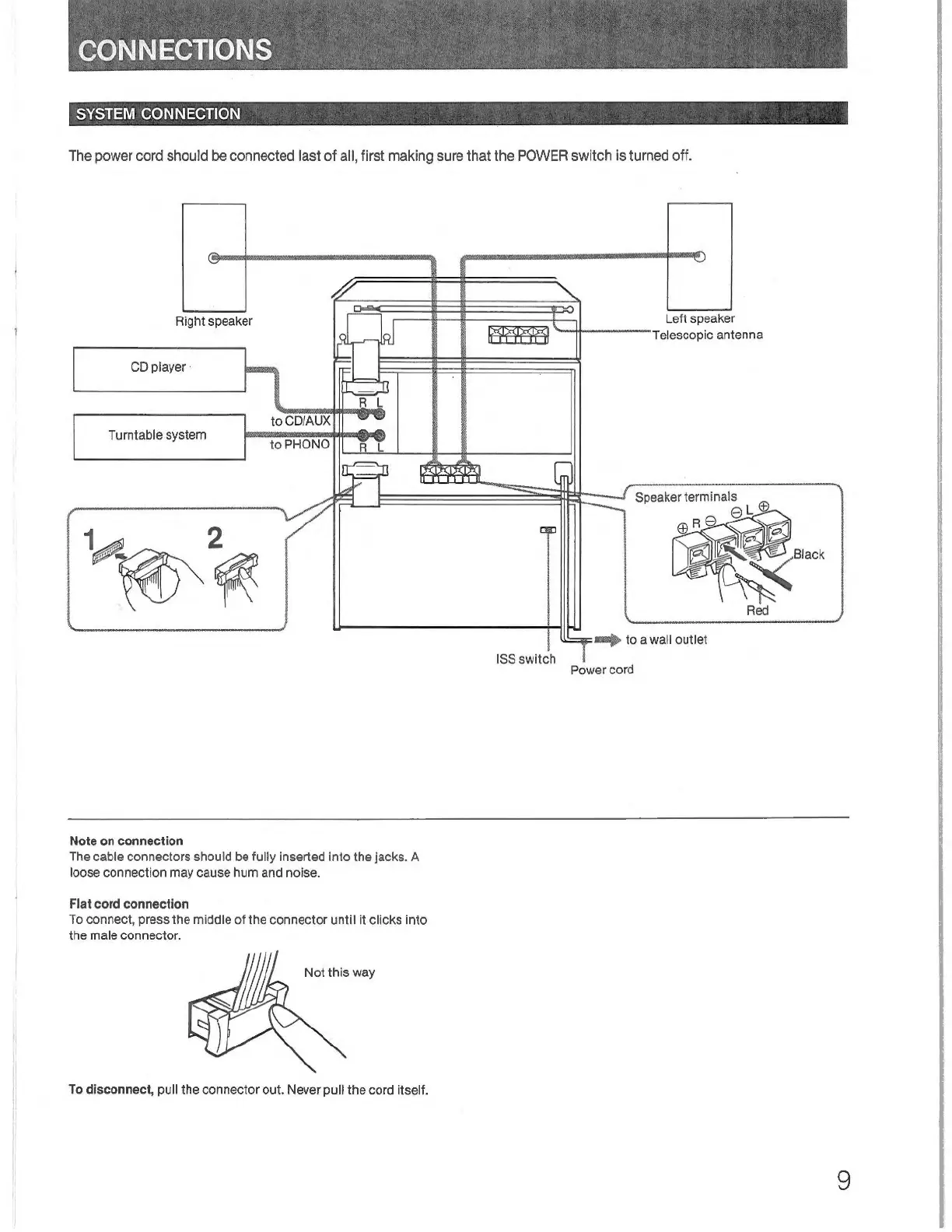

SYSTEM CONNECTION
The power cord should be connected last of all, first making sure that the POWER switch is turned off.
Right speaker
CD player·
to CD/AUX
Turntable system
Note on connection
The cable connectors should be fully inserted into the Jacks. A
loose connection may cause
hum and no ise.
Flat cord connection
To connect, press the middle of the connector until it clicks into
the male connector.
Not this way
To disconnect, pull the connector out. Never pull the cord itself.
ISS s
witch
Left speaker
Telescopic antenna
Speaker termina
ls
-+ to a wall outlet
Power cord
Black
Red
9
