Pin assignment

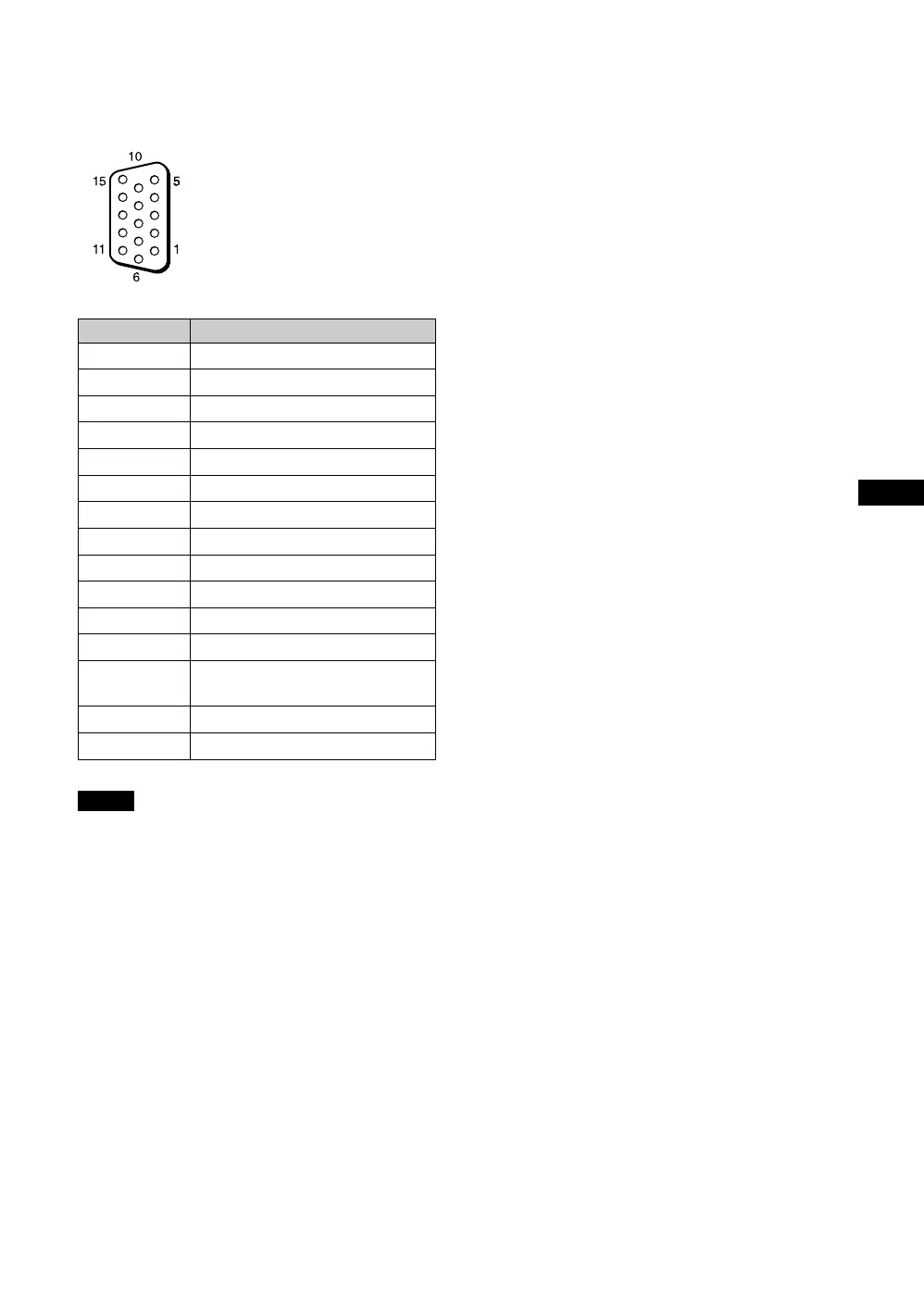

HD15 RGB/COMPONENT connector (D-sub 15-pin)
When inputting a component signal, be sure not to input sync
signals to pins 13 and 14. If you do so, the picture may not be
displayed properly.
Pin No. Signal
1 Red video or C
R
/P
R
2 Green video or Y
3 Blue video or C
B
/P
B
4 Ground
5 Ground
6 Red ground
7 Green ground
8 Blue ground
9 Not used
10 Ground
11 Ground
12 SDA
13 H sync or Composite Video (as sync
signal)
14 V sync
15 SCL
Note
