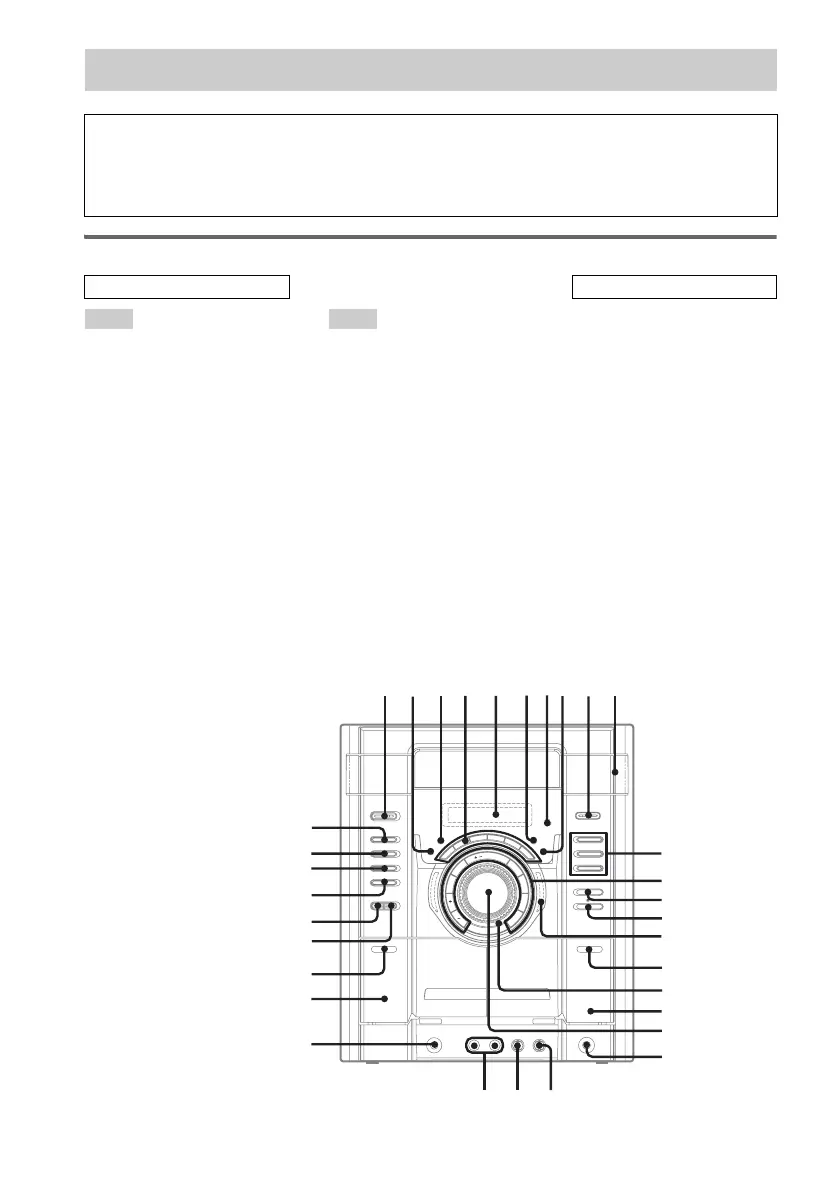

Main unit
ALBUM +/– qs (11, 13, 18)
AUDIO IN wl (18, 27)
AUDIO IN jack wf (27)
CD es (8, 10, 13, 18)
CD SYNC wj (18)
Deck A wg (17)
Deck B qk (17, 18, 21)
DISC 1 – 3 qa (11, 13, 30)
DISC SKIP/EX-CHANGE qd
(10, 11, 13, 18)
Disc tray 0 (10)
DISPLAY 3 (16, 24, 25)
Display window 5
ECHO LEVEL
1)
wa (21)
EFFECT ON/OFF 4 (19)
ENTER 4 (13, 14, 20)
EQ BAND qs (20)
GROOVE 4 (19)
ILLUMINATION 2 (26, 30)
MIC jack
2)
wd (21)
MIC LEVEL
2)
ws (21)
MULTIPLEX
1)
6 (21)
Operation Dial
(– EQ +/l L/
– TUNING +) qj (20/11, 13,
17/14, 15)
P FILE 4 (20)
PHONES jack w;
PLAY MODE 8 (11, 13, 17)
Power illuminator qg (26)
PRESET EQ 4 (19)
REC PAUSE/START wk (18, 21)
Remote sensor 7
SUBWOOFER ON/OFF
3)
9
(19)
SURROUND 4 (20)
TAPE A/B e; (17, 18, 21)
TUNER/BAND ea (14, 15, 18)
TUNING MODE 8 (14, 15)
VOLUME control ql (19)
?/1 (power) 1 (8, 15, 24, 28,
30)
X (pause) qs (11, 17)
x (stop) qs (11, 17, 21, 30)
M (fast forward) qs (11, 17)
N (play) qs (11, 17)
m (rewind) qs (11, 17)
Z (eject) qf (10)
PUSH Z (deck B) (eject) qh (17)
Z PUSH (deck A) (eject) wh (17)
1)
Mexican model only
2)
Latin American model only
(Mexican model comes with
2 microphone jacks)
3)
MHC-GX555/RG575S/
RG475S only
List of button locations and reference pages
