HBD-DZ330/DZ710/DZ730
101 3-077-331-21 +BV3 (3-CR)
102 1-832-579-21 CABLE, FLEXIBLE FLAT (13 CORE)
(DZ330/DZ730)
102 1-832-589-21 CABLE, FLEXIBLE FLAT (15 CORE) (DZ710)
103 A-1746-449-A FL BOARD, COMPLETE (DZ710)
103 A-1746-473-A FL BOARD, COMPLETE (DZ330/DZ730)
ND5001 1-483-107-21 FLUORESCENT INDICATOR TUBE
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

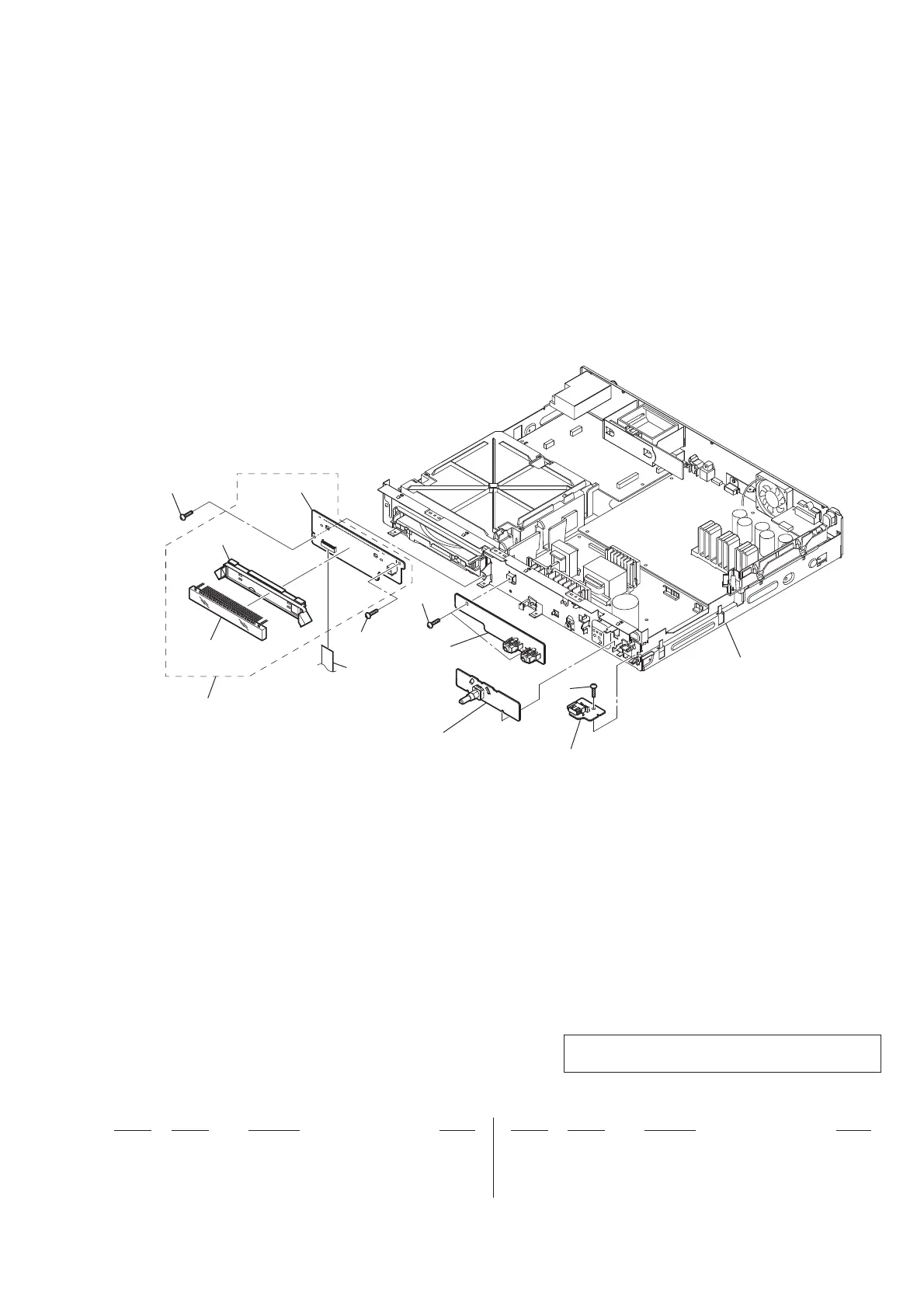

6-3. FRONT BOARDS SECTION
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
not supplied
not supplied
not supplied
(USB board)
back panel section
not supplied
(JACK board)
not supplied
(ENCODER board)
ND5001
101
101
101
102
103
101
