Sony HBD-E190 - Switching Regulator (SWR1); AMP Board

HBD-E190/E290/E490/E690
18
1 one screw (+BV3 (3-CR))
6 five screws (+BV3 (3-CR))
3 CN1 (2P)
4 CN101 (4P)
5 CN4 (2P)
2 insulation, top (S)
3RZHUFRUGVHWWLQJ
rear side
switching
regulator
(SWR1)
7 switching regulator (SWR1)
(3L382W-1) (E290: AEP, UK, SAF, SP, AUS, TW, TH, CH/
E490: CND, AEP, UK, SP, TW, TH, CH/
E690: AEP, SP, AUS, TH)
(3L382W) (E290: RU, E3, EA, PX, E12, E32/
E490: RU, MX6, E3, EA, E12, E15/
E690: RU, E3, EA, E12, E15)
(3L383W-1) (E190: CND, AEP, UK, SAF, SP, AUS)
(3L383W) (E190: RU, MX6)

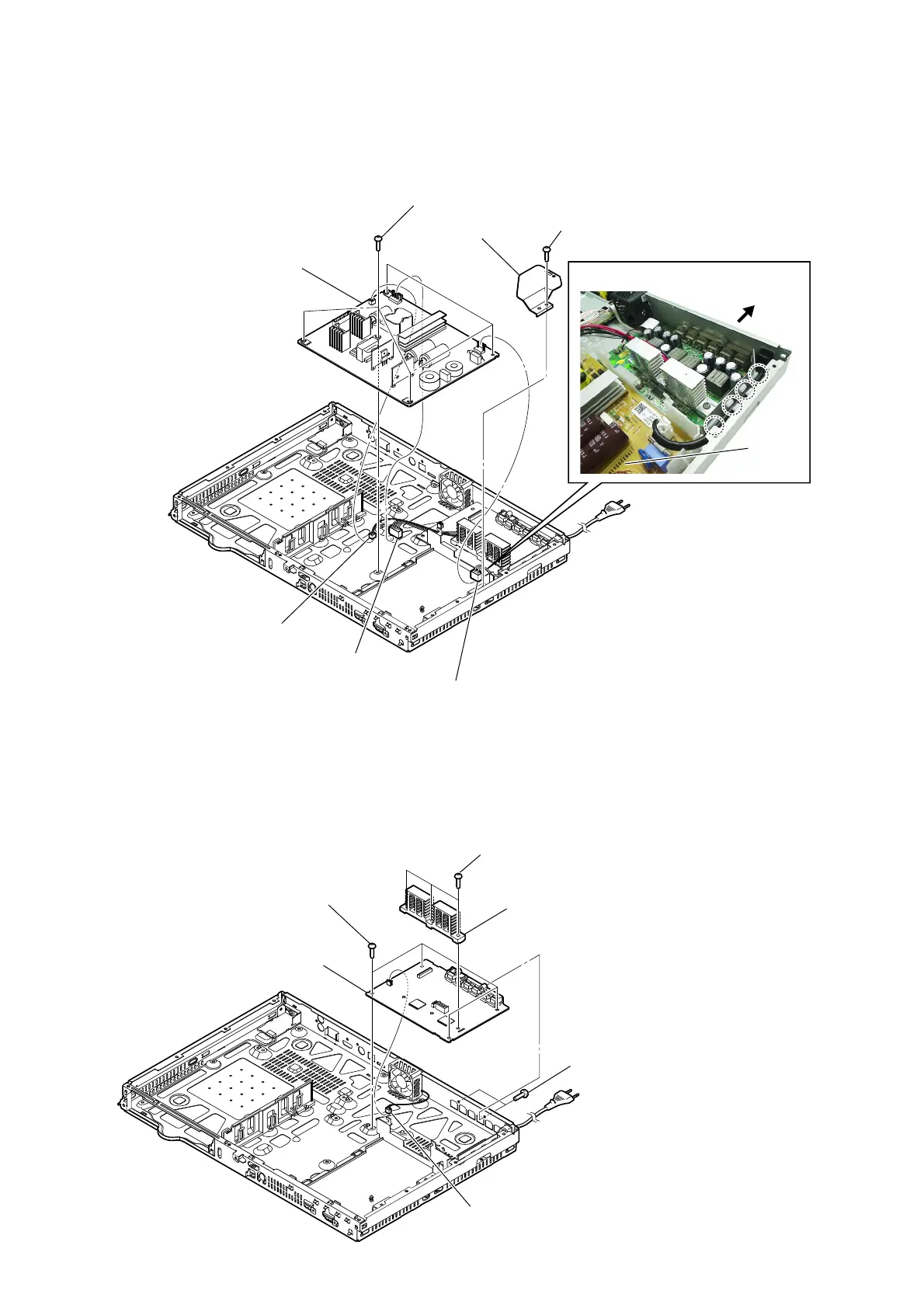

2-9. SWITCHING REGULATOR (SWR1)
2-10. AMP BOARD
3 three screws (+BV3 (3-CR))
2 two screws (+BV3 (3-CR))
5 four screws (+BV3 (3-CR))
6 AMP board
4 heat sink (AMP)
1 CN3501 (2P)
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110-240 V AC area in E model
EA : Saudi Arabia model
MX6 : Latin-American model
PX : PX model
RU : Russian model
SAF : South African model
SP : Singapore model
TH : Thai model
TW : Taiwan model
Ver. 1.1
