82
HBD-E190/E290/E490/E690
9 106 A-1871-183-A MB148 BOARD, COMPLETE (E490: CND)
9 106 A-1871-184-A MB148 BOARD, COMPLETE (E490: AEP)
9 106 A-1871-185-A MB148 BOARD, COMPLETE (E490: UK)
9 106 A-1871-186-A MB148 BOARD, COMPLETE (E490: RU)
9 106 A-1871-187-A MB148 BOARD, COMPLETE (E490: E12)
9 106 A-1871-188-A MB148 BOARD, COMPLETE (E490: E3)
9 106 A-1871-189-A MB148 BOARD, COMPLETE (E490: E15)
9 106 A-1871-190-A MB148 BOARD, COMPLETE (E490: EA)
9 106 A-1871-191-A MB148 BOARD, COMPLETE (E490: SP)
9 106 A-1871-192-A MB148 BOARD, COMPLETE (E490: CH)
9 106 A-1871-193-A MB148 BOARD, COMPLETE (E490: TH)
9 106 A-1871-194-A MB148 BOARD, COMPLETE (E490: TW)
9 106 A-1871-195-A MB148 BOARD, COMPLETE (E490: MX6)
9 106 A-1871-198-A MB148 BOARD, COMPLETE (E690: AEP)
9 106 A-1871-199-A MB148 BOARD, COMPLETE (E690: RU)
9 106 A-1871-200-A MB148 BOARD, COMPLETE (E690: E12)
9 106 A-1871-201-A MB148 BOARD, COMPLETE (E690: E3)
9 106 A-1871-202-A MB148 BOARD, COMPLETE (E690: E15)
9 106 A-1871-203-A MB148 BOARD, COMPLETE (E690: EA)
9 106 A-1871-204-A MB148 BOARD, COMPLETE (E690: SP)
9 106 A-1871-205-A MB148 BOARD, COMPLETE (E690: TH)
9 106 A-1871-206-A MB148 BOARD, COMPLETE (E690: AUS)
9 106 A-1885-664-A MB148 BOARD, COMPLETE (E290: UK)
9 106 A-1887-812-A MB148 BOARD, COMPLETE (E290: EA)
107 A-1846-432-A TUNER2 BOARD, COMPLETE (AEP, UK, SAF)
107 A-1846-434-A TUNER2 BOARD, COMPLETE (CND, PX)
107 A-1848-566-A TUNER2 BOARD, COMPLETE
(EXCEPT CND, AEP, UK, SAF, PX)
108 1-828-799-51 WIRE (FLAT TYPE) (30 CORE)
109 3-077-331-81 +BV3 (3-CR)
110 A-1848-679-A AMP BOARD, COMPLETE
0 M1 1-855-134-11 FAN, DC
#1 7-682-546-09 SCREW +B 3X5

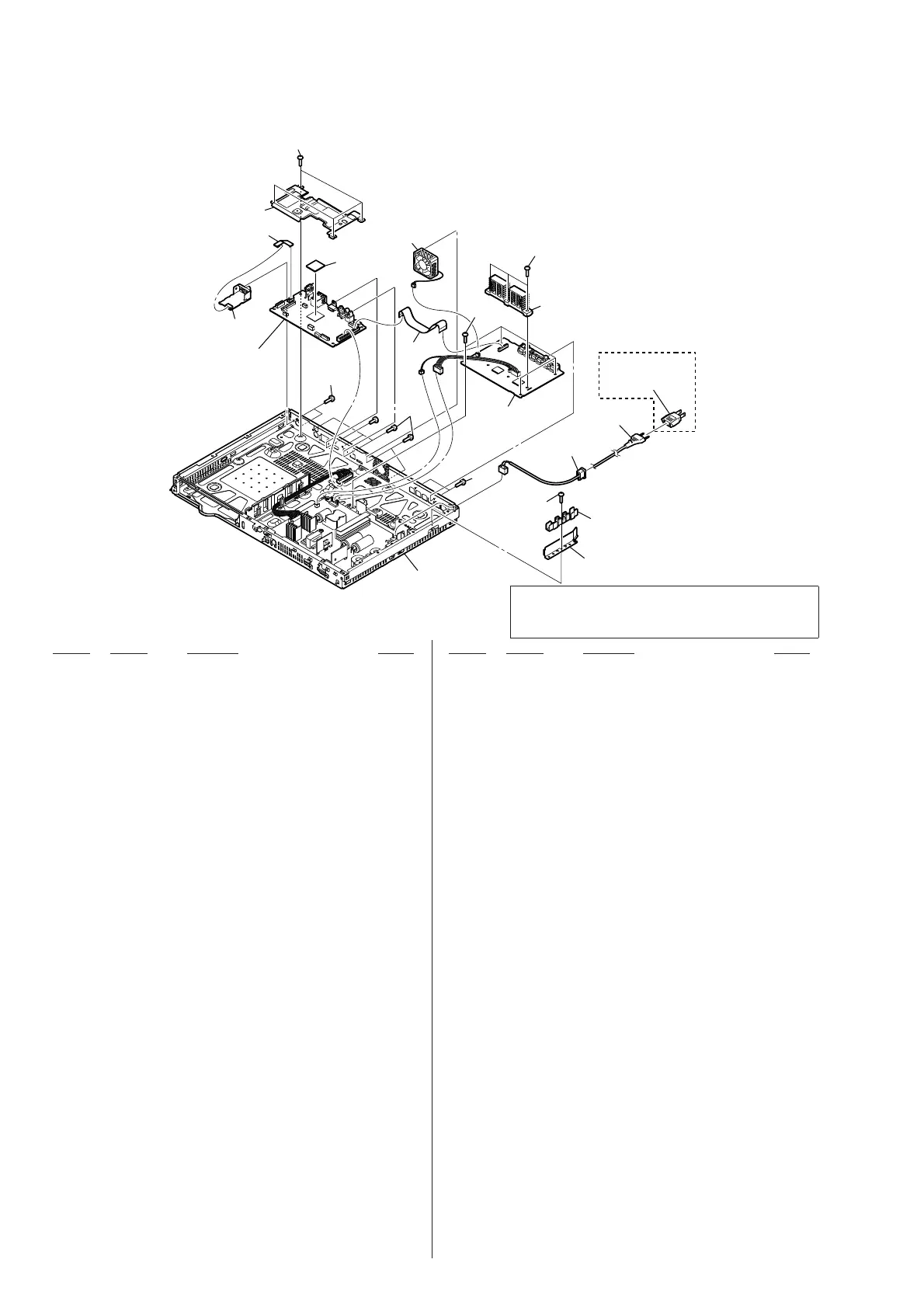

6-3. CHASSIS BOTTOM SECTION
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC”
on page 13 when you install it in the unit.
0 101 4-966-267-12 BUSHING (FBS001), CORD
0 102 1-777-071-23 CORD, POWER (PX)
0 102 1-777-071-83 CORD, POWER
(AEP, RU, SAF, SP, MX6, E3, E32, E15)
0 102 1-835-068-21 CORD, POWER (AUS)
0 102 1-837-308-11 CORD, POWER-SUPPLY (CND)
0 102 1-837-309-21 CORD, POWER-SUPPLY (UK, EA)
0 102 1-837-345-11 CORD, POWER-SUPPLY (TW)
0 102 1-837-822-21 CORD, POWER-SUPPLY (CH)
0 102 1-839-012-11 CORD, POWER-SUPPLY (E12)
0 102 1-839-940-21 POWER-SUPPLY CORD (TH)
0 103 1-569-008-33 ADAPTOR, CONVERSION (MX6, PX, E32)
104 3-077-331-71 +BV3 (3-CR)
105 1-828-296-61 WIRE (FLAT TYPE) (7 CORE)
9 106 A-1871-133-A MB148 BOARD, COMPLETE (E190: CND)
9 106 A-1871-134-A MB148 BOARD, COMPLETE (E190: AEP)
9 106 A-1871-135-A MB148 BOARD, COMPLETE (E190: UK)
9 106 A-1871-136-A MB148 BOARD, COMPLETE (E190: RU)
9 106 A-1871-137-A MB148 BOARD, COMPLETE (E190: SP)
9 106 A-1871-138-A MB148 BOARD, COMPLETE (E190: AUS)
9 106 A-1871-139-A MB148 BOARD, COMPLETE (E190: SAF)
9 106 A-1871-140-A MB148 BOARD, COMPLETE (E190: MX6)
9 106 A-1871-142-A MB148 BOARD, COMPLETE (E290: PX)
9 106 A-1871-143-A MB148 BOARD, COMPLETE (E290: AEP)
9 106 A-1871-144-A MB148 BOARD, COMPLETE (E290: RU)
9 106 A-1871-145-A MB148 BOARD, COMPLETE (E290: E12)
9 106 A-1871-146-A MB148 BOARD, COMPLETE (E290: E3)
9 106 A-1871-147-A MB148 BOARD, COMPLETE (E290: SP)
9 106 A-1871-148-A MB148 BOARD, COMPLETE (E290: TH)
9 106 A-1871-149-A MB148 BOARD, COMPLETE (E290: TW)
9 106 A-1871-150-A MB148 BOARD, COMPLETE (E290: E32)
9 106 A-1871-151-A MB148 BOARD, COMPLETE (E290: CH)
9 106 A-1871-152-A MB148 BOARD, COMPLETE (E290: AUS)
9 106 A-1871-176-A MB148 BOARD, COMPLETE (E290: SAF)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.4
101
102
chassis section
#1
105
107
106
108
110
109
104
103
104
104
104
104
104
not supplied
not supplied
not supplied
not supplied
not supplied
M1
(MX6, PX, E32 )
To Next Page
