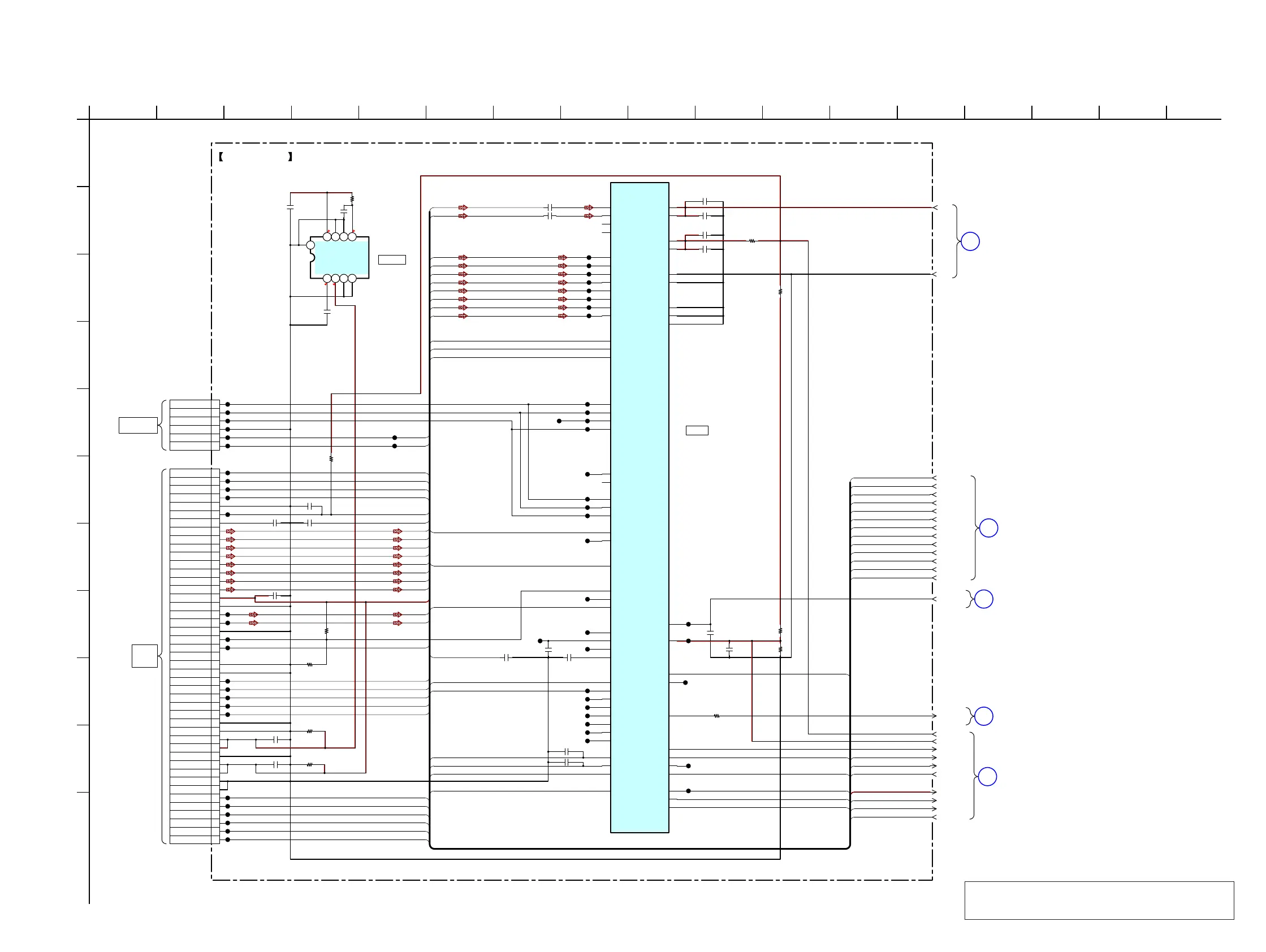

5-14. SCHEMATIC DIAGRAM - MB148 Board (7/9) - • See page 61 for IC Pin Function Descriptions.
Ver. 1.1
1
A
B
C
D
E
F
G
H
I
J
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
MB148 BOARD (7/9)
12
8
12
8
FE_IN_A
FE_RFO+
FE_RFO-
FE_RFO-
FE_GIO5
FE_FPDODVD
FE_LDD_SEN
FE_LDD_SDIO
FE_LDD_CLK
FE_GIO7
FE_RFO+
FE_IN_E
FE_SW5V
FE_IN_B
FE_IN_D
FE_IN_F
FE_IN_G
FE_IN_A
FE_IN_C
FE_IN_H
FE_AUX1
FE_FPDODVD
FE_VHAVC
FE_AUX1
FE_IN_B
FE_IN_C
FE_IN_D
FE_IN_E
FE_IN_F
FE_IN_G
FE_IN_H
FE_LDD_SDIO
FE_LDD_SEN
FE_LDD_CLK
FE_VHAVC
FE_8V
FE_MUTE1
FE_FMO
CL1147
FE_FR+
FE_TILT+
CL1137
CL1144
GND
FE_TRAYIN
FE_TYPWM
FE_FG
JL1119
JL1128
CL1142
FE_TR+
FE_FR-
JL1120
JL1174
C1175 0.01
C1121 1
CL1193
FE_TILT-
JL1117
CL1107
FE_TRAYOUT
C1178 0.01
JL1131
CL1194
C1174
1
FE_CO_A+
CL1149
CL1136
CL1138
FE_TR-
C1110 0.1
CL1140
JL1132
C1176 1
FE_CO_A-
CL1145
CL1143
CL1106
JL1133
CL1141
FE_CO_B-
CL1146
CL1139
FE_CO_B+
FE_FR-
FE_FR+
FE_TR+
FE_TR-
FE_TILT+
FE_TILT-
FE_CO_A+
FE_CO_A-
FE_CO_B-
FE_CO_B+
FE_CO_A+
FE_CO_A-
FE_CO_B-
FE_FMO2
FE_FMO
FE_MUTE1
FE_FMO2
FE_SW5V
FE_SW5V
FE_GAINSW3
FE_TYPWM
FE_FG
FE_TYPWM
FE_GAINSW3
FE_FG
FE_CO_B+
FE_FR-
FE_FR+
FE_TR+
FE_TR-
FE_TIL
T+
FE_TILT-
FE_TRAYIN
FE_LOAD_SW
FE_TRAYOUT
FE_TRAYOUT
FE_TRAYIN
FE_LOAD_SW
4.7k
R1112
CL1108
CL1105
CL1134
2.2k
R1110
JL1130
CL1148
CL1104
JL1171
C1177 0.01
CL1191
FE_GAINSW3
FE_FMO
FE_FMO2
FE_RXD
FE_TXD
CL1196
CL1195
CL1124
CL1123
C1190
0.1
1.2V
C1101 0.1
C1105 0.1
C1102 0.001
C1106 0.001
JL1121
JL1122
JL1123
JL1124
JL1125
JL1126
JL1196
FAST_EJECT
FE_GIO5
FE_MUTE1
FE_RXD
FE_TXD
FE_GIO7
FE_LOAD_SW
0R1199
JL1190
JL1198
6P
CN1191
JL1199
JL1173
JL1175
JL1176
JL1134
JL1135
JL1136
JL1137
JL1138
JL1139
JL1197
FE_GIO4
JL1291
C1152
1
C1153
0.1
C1155
1
JL1129
10k
R1153
C1123
0.1
C1122
0.1
C1134 0.1
C1118 0.1
C1129 0.1
C1112 0.1
4.7k
R1192
FE_3.3V_D
CL1121
CL1122
33kR1121
5.1k
R1191
10k
R1134
CN1101
45P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
1
VOUT
2
FB
3
GND
4
NC
5
EN
6
NC
7
NC
8
VCC
9
FIN
EJECT_KEY
C1172
0.1
0
FB1190
0
FB1199
CL1150
G1
RFIP
G2
RFIN
H1
RFIP2
H2
RFIN2
C3
INA
B1
INB
C2
INC
C1
IND
E2
INE
E1
INF
D1
ING
D2
INH
L4
FECFREQ
L3
FECMOD
K3
FEOSCEN
A2
TRINA
B3
TRINB
A1
TRINC
B2
TRIND
C6
VWDC2O
A4
VWDC3O
F4
FEMPXOUT1
F2
FEMPXOUT2
F1
FEMPXOUT3
C4
FPDODVD
A3
FPDOCD
F5
AUX1
L2
FEGAINSW1
M2
FEGAINSW2
L1
FEGAINSW3
E5
VDAC0
H3
V14
B4
FVREF
E4
HAVC
N1
FEFMO
N2
FEFMO2
N3
FEFMO3
M3
FEFMO4
H4
FOO
J2
TRO
P3
FEDMO
J3
TLO
U4
FETRAYOUT_
T2
FE_TRAYIN_
P2
FETRAYPWM
R1
FE_FG
K5
AVDD12_1
J4
AVDD12_2
E3
AVDD33_1
J6
AVDD33_3
H5
AGND12_1
H7
AGND12_2
F6
AGND33_1
F7
AGND33_3
K7
AGND33_2
T1
FEEJECT_
E6
RSTI
R2
FEGIO0
R3
FEGIO1
U2
FEGIO3
R6
FEGIO4
N5
FEGIO5
N7
FEGIO6
N6
FEGIO7
R5
FEGIO9
T3
FEGIO10
U1
FEGIO11
F
RF-
RF+
5.0V
SCLK
SEN_LDD
A
GND
5.0V
MODE_B
GND
THERMO
SDIO
G
D
GND
TD
GND
8.0V
TR
FD2
5V_PD
FR1
TEST_V
GND
SA_A-
C
E
FR2
GND
MODE_A
FD1
B
GND
VC_PD
LDEN
GND
NC
GND
H
MPXOUT1
MPXOUT2
MPXOUT3
GND
RxD
TxD
SA_A+
SA_B-
SA_B+
8.0V
GND
1
2
3
4
5
6
IC101 (12/12)
*1
IC101
BD DECODER
(DRIVER/RE/FR_GIO)
IC1151
BD80GA3WEFJ-E2
IC1151
+8V REG
24
MB148
BOARD
(8/9)
(Page 44)
10
MB148
BOARD
(2/9)
(Page 38)
27
MB148
BOARD
(8/9)
(Page 44)
FLASH
PROGRAMMING
BD DRIVE
BPX-7
(1/3)
25
MB148 BOARD (9/9)
(Page 45)
26
MB148 BOARD (9/9)
(Page 45)
FE_5V_D
*1 IC101
CXD90008G-AA (EXCEPT SP, TW, TH, CH)
CXD90008G-AB (SP, TW, TH, CH)
47k
R1120
Note: IC101 on the MB148 board cannot exchange with single.
When this part is damaged, exchange the complete
mounted board.
