HBD-E190/E290/E490/E690
11
HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1: After the left panel is removed, this work is done.
Note 2: Please prepare the thin wire (clip etc. processed to the length of 8 cm or more).
SERVICE POSITION
Ver. 1.1
MB148 board
AMP board
BD drive
(BPX-7)
POWER KEY board
KARAOKE board
(RU)
PANEL board
switching regulator (SWR1)
(3L382W-1) (E290: AEP, UK, SAF, SP, AUS, TW, TH, CH/
E490: CND, AEP, UK, SP, TW, TH, CH/
E690: AEP, SP, AUS, TH)
(3L382W) (E290: RU, E3, EA, PX, E12, E32/
E490: RU, MX6, E3, EA, E12, E15/
E690: RU, E3, EA, E12, E15)
(3L383W-1) (E190: CND, AEP, UK, SAF, SP, AUS)
(3L383W) (E190: RU, MX6)

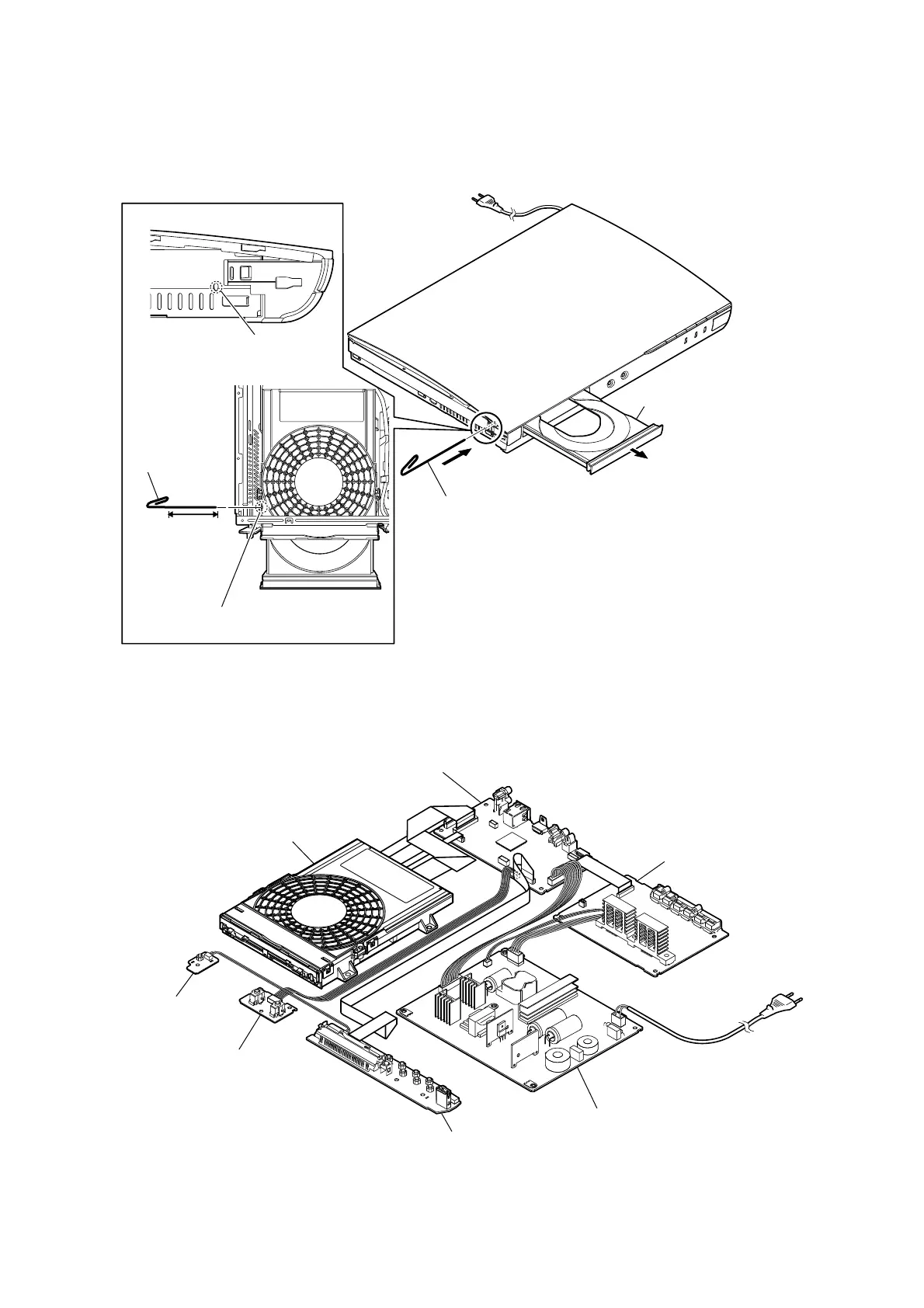

1 Remove the panel, left.
(Illustration of disassembly is omitted.)
2 Insert the clip etc.
3
tray
tray
BD drive
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
• Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
E3 : 240 V AC area in E model
E12 : 220-240 V AC area in E model
E15 : Iran model
E32 : 110-240 V AC area in E model
EA : Saudi Arabia model
MX6 : Latin-American model
PX : PX model
RU : Russian model
SAF : South African model
SP : Singapore model
TH : Thai model
TW : Taiwan model
