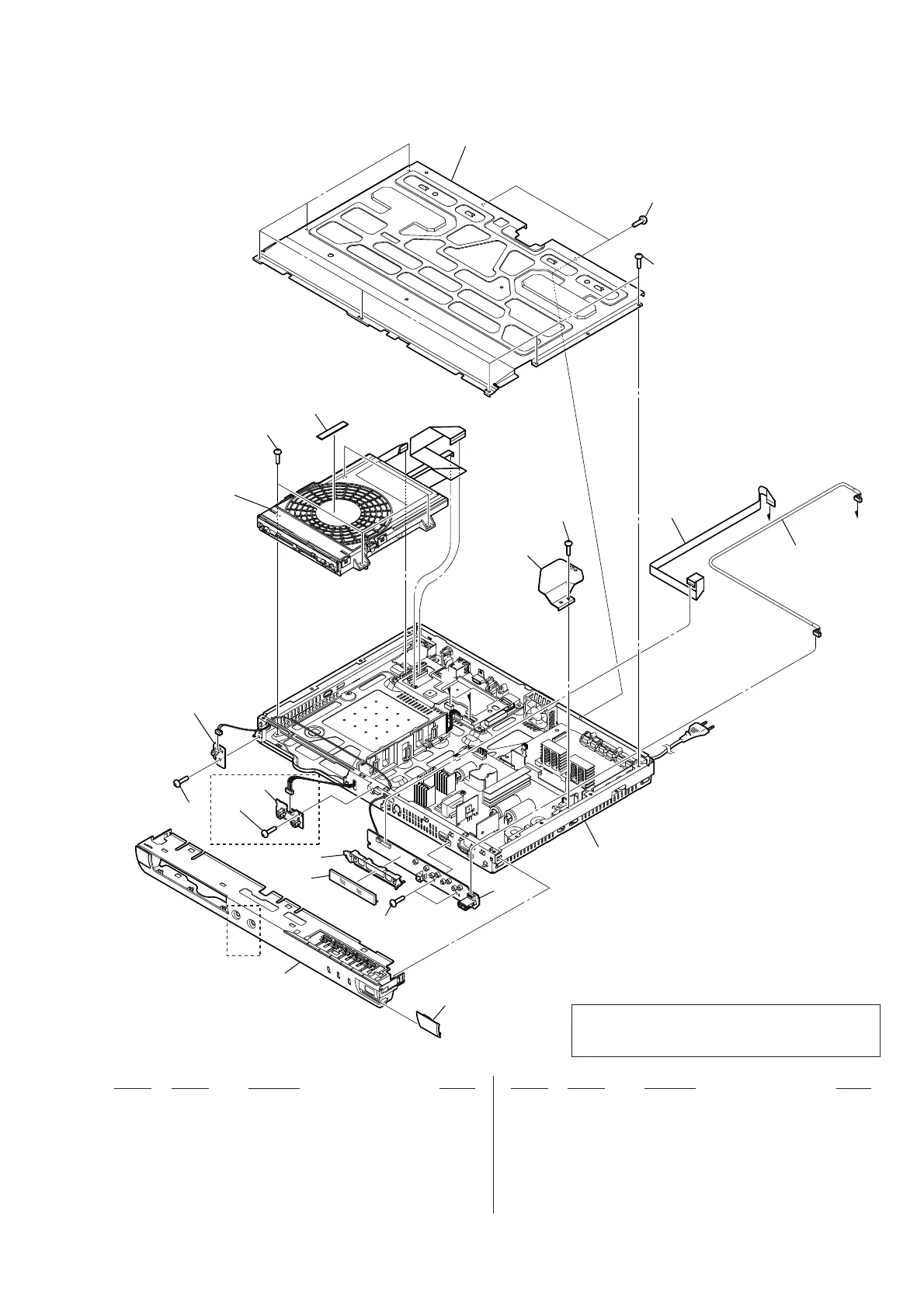

6-2. FRONT PANEL SECTION
Note: Wires (fl at type) for service is all straight.
Please bend it referring go “HOW TO BEND FFC”
on page 13 when you install it in the unit.
51 3-077-331-71 +BV3 (3-CR)
52 X-2582-916-2 FRONT PANEL ASSY (E190: EXCEPT RU)
52 X-2582-917-2 FRONT PANEL ASSY (E190: RU)
52 X-2582-918-2 FRONT PANEL ASSY (E290: EXCEPT RU)
52 X-2582-919-2 FRONT PANEL ASSY (E290: RU)
52 X-2582-922-2 FRONT PANEL ASSY (E490: EXCEPT RU)
52 X-2582-923-2 FRONT PANEL ASSY (E490: RU)
52 X-2582-924-2 FRONT PANEL ASSY (E690: EXCEPT RU)
52 X-2582-925-2 FRONT PANEL ASSY (E690: RU)
53 A-1848-680-A PANEL BOARD, COMPLETE
54 1-968-135-11 HARNESS (USB)
55 1-828-333-61 WIRE (FLAT TYPE) (13 CORE)
56 A-1849-212-A KARAOKE BOARD, COMPLETE (RU)
ND01 1-483-411-11 VACUUM FLUORESCENT DISPLAY
