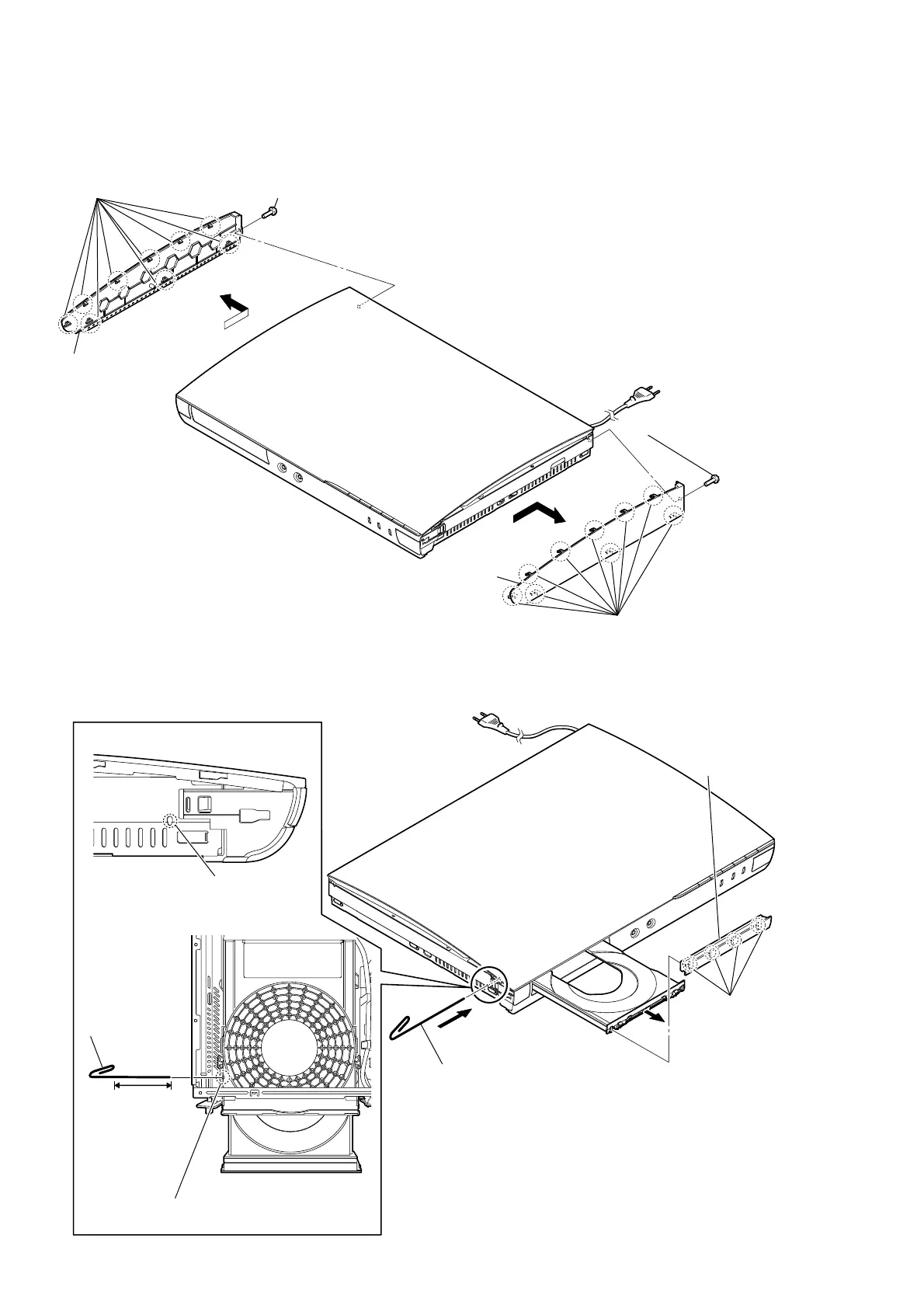

2-4. LOADING PANEL
Note: Follow the disassembly procedure in the numerical order given.
2-3. LEFT PANEL, RIGHT PANEL
1 one screw (+BV3 (3-CR))
2 nine claws
4 panel, left
2 nine claws
1 one screw (+BV3 (3-CR))
3
3
4 panel, right
3 four claws
4 panel, loading
1 Insert the clip etc.
2
tray
BD drive
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
