HBD-E370/E470/E570/E870/T57
17

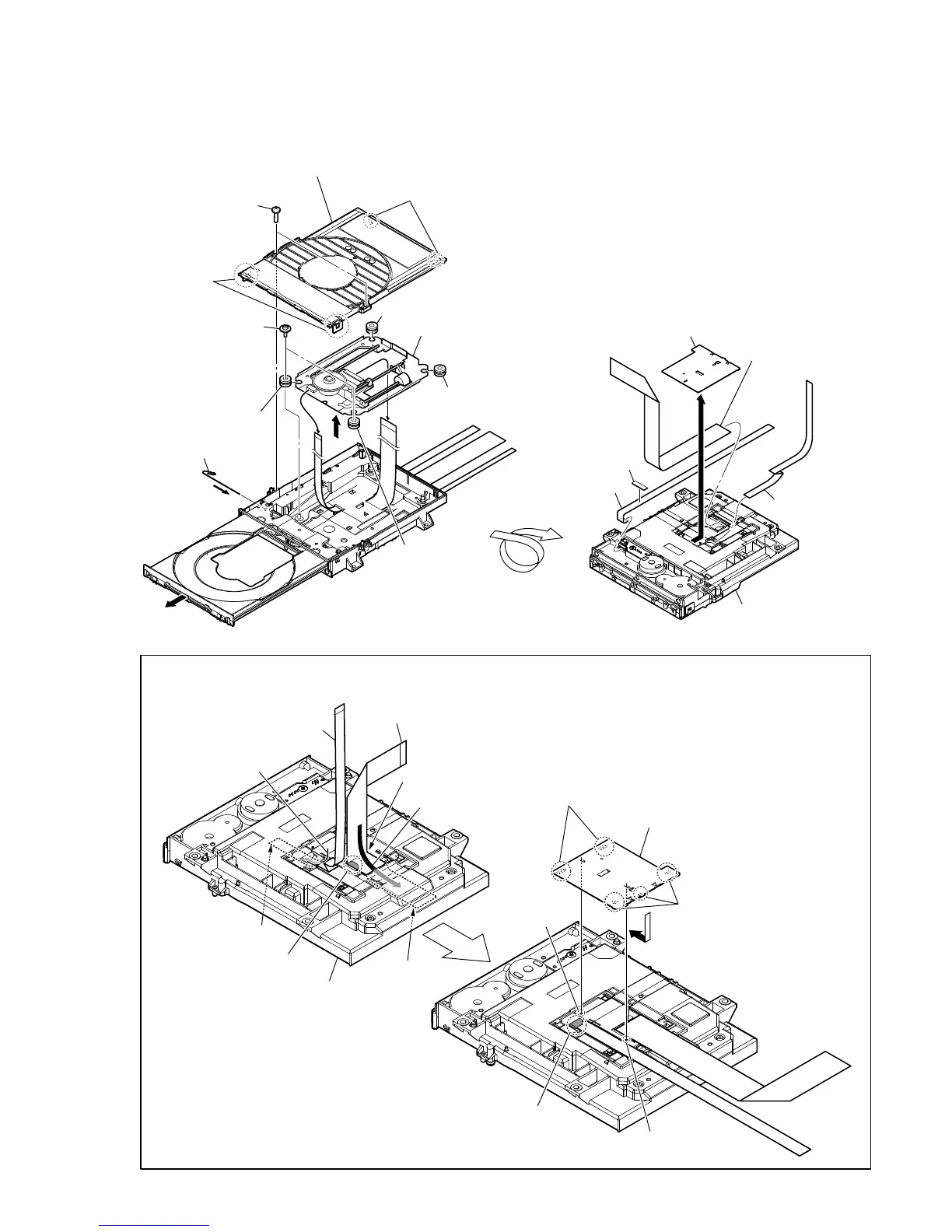

2-12. OPTICAL DEVICE (KEM-460AAA), WIRE (FLAT TYPE)
Note: Please prepare the thin wire (clip etc.).
1 two screws
(BVTP 2.6)
7 two float screws (S)
qa insulator
5 Insert the thin
wire (clip etc.).
qa insulator
qa insulator
qs optical device
(KEM-460AAA)
qa insulator
qd non-halogene tape
qf wire (flat type) (5 core)
qk wire (flat type)
(45 core)
qj wire (flat type)
(9 core)
loading assy (D)
qh ffc holder (rear)
2 two claws
6
8
9
qg
0
3 two claws
4 chuck holder assy (D)
– Bottom view –
1 wire (flat type) (45 core)
Fold.
Under the guide.
Under the guide.
(Fold area)
boss
boss
loading assy (D)
terminal face
terminal face
2 Through the hole.
4 Through the hole.
3 wire (flat type) (9 core)
5 ffc holder (rear)
7 two claws
7 three claws
6
,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH
Note: This illustration sees the loading assy (D) from bottom side.
