Sony HCD-CPZ1DAB - Case; Front Panel Section

HCD-CPZ1DAB
7

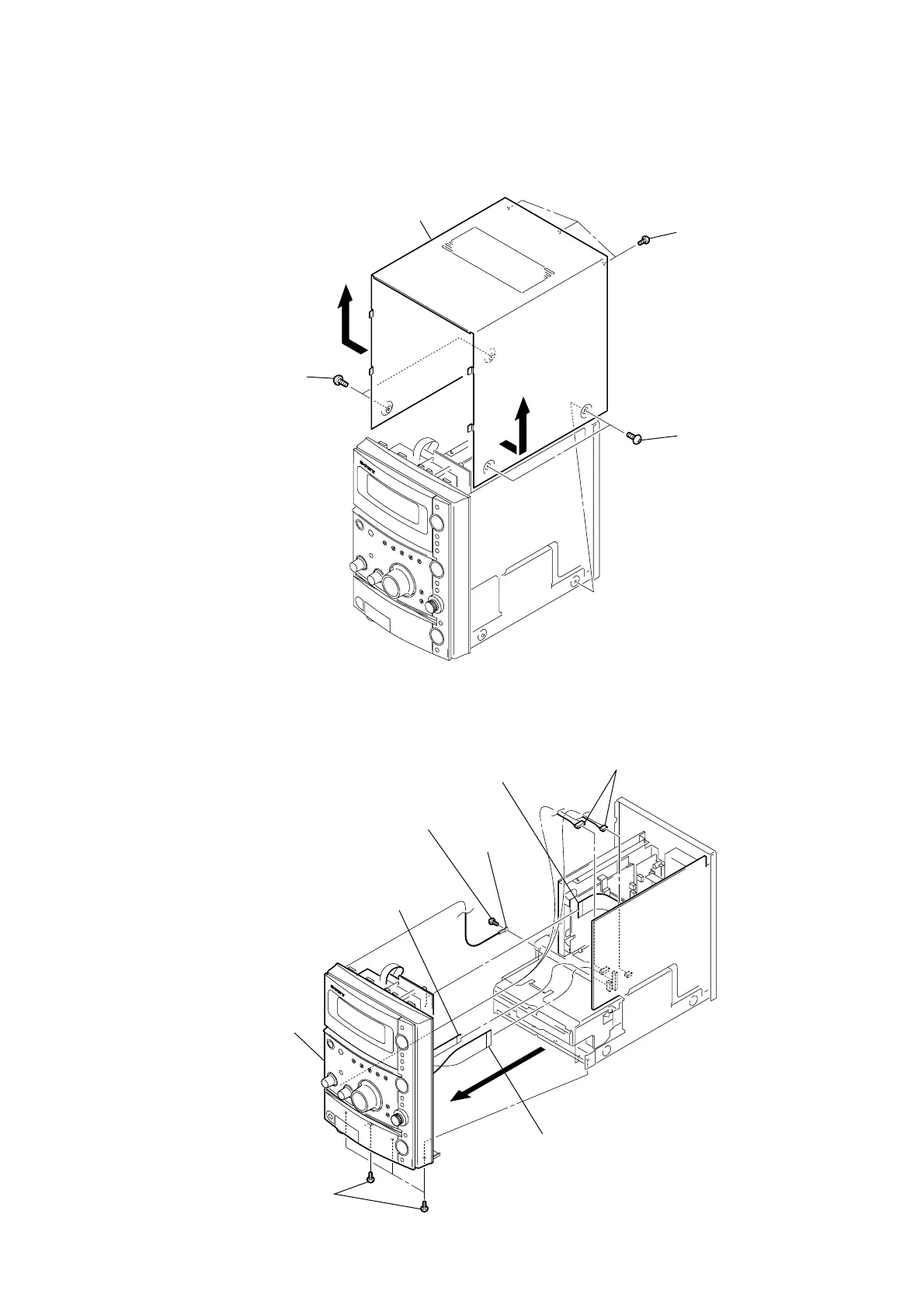

3-3. FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
1 two screws
(case 3 TP2
)
1 two screws
(case 3 TP2)
2 three screws
(B3)
3
3
4 case
4 four screws
(B3)
2 screw (BVTP3 × 6)
9 front panel section
6 wire (flat type) (19 core)
(CN305)
5
7 wire (flat type) (9 core)
(CN304)
1 wire (flat type) (19 core)
(CN603)
8 two connectors
(CN303, CN307)
3 terminal
