HCD-CX4iP/CX5iP
HCD-CX4iP/CX5iP
1717
For Schematic Diagrams.
Note:
All capacitors are in µF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in and 1/4 W or less unless otherwise
specifi ed.
f
: Internal component.
C : Panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A : B+ Line.
B : B– Line.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– BD94D-V Board –
no mark
: CD PLAY
– Other Boards –
no mark
: TUNER
*
: Impossible to measure
Voltages are taken with VOM (Input impedance 10 M:).
Voltage variations may be noted due to normal production
tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
• Signal path.
F : TUNER
J : CD PLAY
d : USB
i : iPod/iPhone
f : AUDIO IN
• Abbreviation
AR : Argentina model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
E2 : 120V AC area in E model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
For Printed Wiring Boards.
Note:
X : Parts extracted from the component side.
Y : Parts extracted from the conductor side.
f
: Internal component.
: Pattern from the side which enables seeing.
(The other layers’ patterns are not indicated.)
Indication of transistor.
C
B
These are omitted.
E
Q
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.

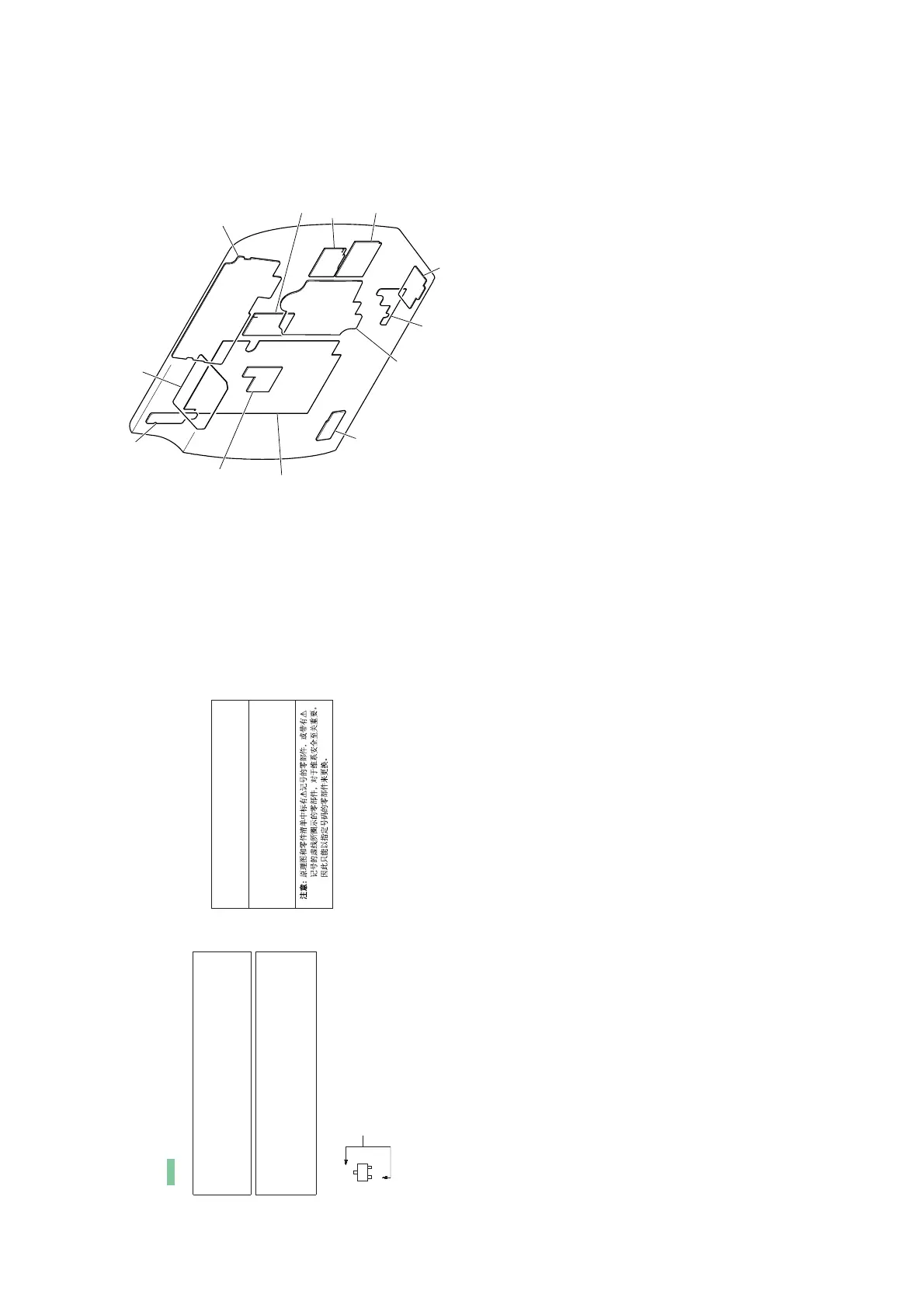

Circuit Boards Location.
• Abbreviation
AR : Argentina model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
E2 : 120V AC area in E model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TW : Taiwan model
Note:
The components identifi ed by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specifi ed.
Note:
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant
le numéro spécifi é.
FL board
POWER-KEY board
USB-JACK board
(CX5iP)
MAIN board
DC-JACK board
AUDIO-JACK board
BD94D-V board
DRIVER board
TUNER board
SP board
IP board
RMC board
