Sony HCD-CX4iP - Schematic Diagram - PANEL Section

HCD-CX4iP/CX5iP HCD-CX4iP/CX5iP
2828

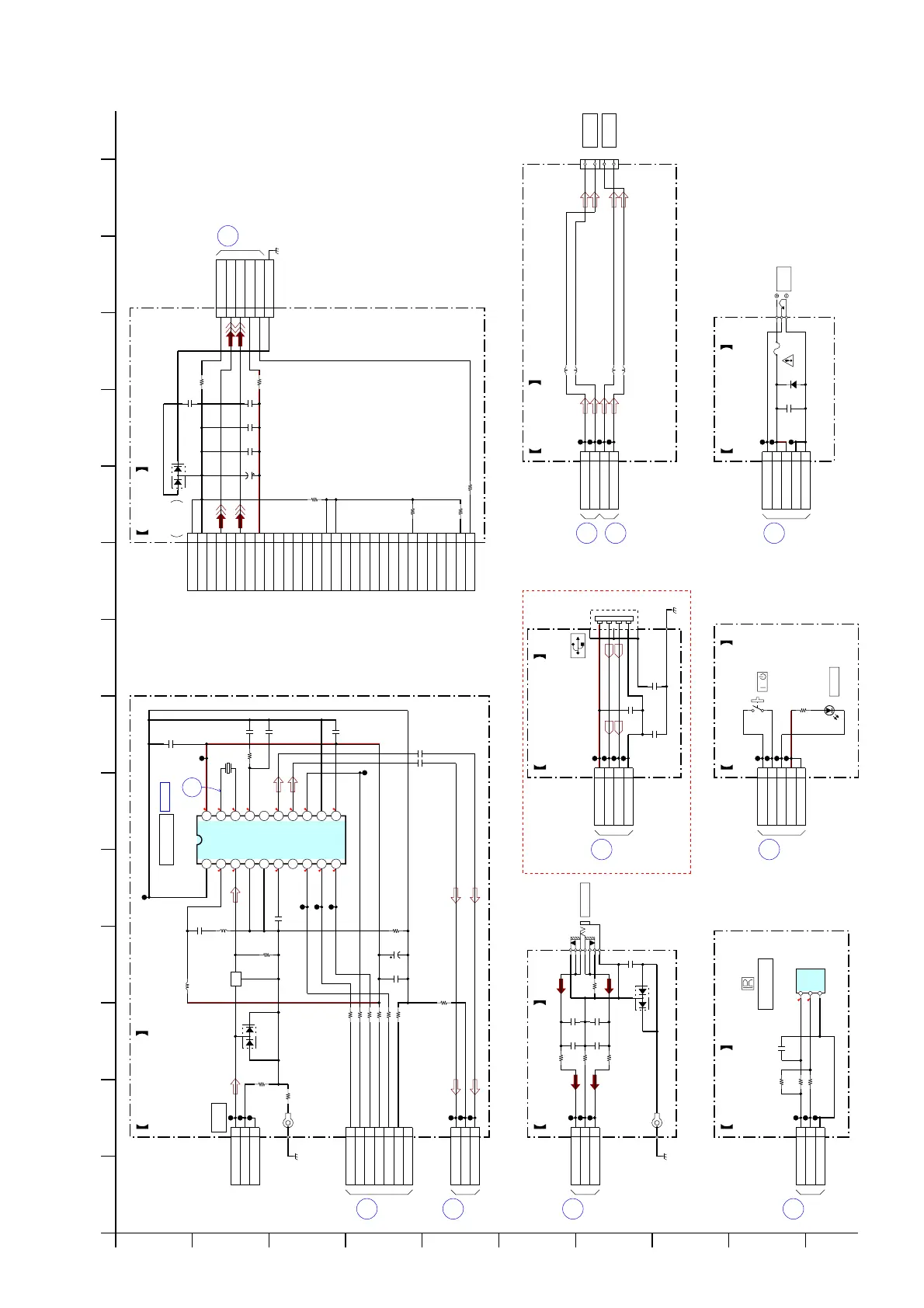

4-13. SCHEMATIC DIAGRAM - PANEL Section -
• See page 29 for Waveforms. • See page 30 for IC Block Diagrams.
BOARD
(1/4)
MAIN
E
CN1161
BOARD
(4/4)
MAIN
J
CN671
IC B/D
31
MAIN
H
CN690
BOARD
(4/4)
BOARD
(2/4)
MAIN
F
CN301
(3/4)
BOARD
MAIN
G
CN471
(1/4)
MAIN
CN1240
B
BOARD
MAIN
CN1235
D
BOARD
(1/4)
BOARD
(3/4)
MAIN
Z
CN491
CN702
L
BOARD
MAIN
(4/4)
CN701
K
BOARD
MAIN
(4/4)
0
3.3 0.8
0
3.3 3.3
3.3 0.6 0.4 0.8 1.3 1.3 3.3 3.3
3.3 3.3
1 2 3
3P
CN901
GND
FM
BPF
G
IO
FL901
MC2840-T112-1
D901
32.768kHz
X901
E
ET901
JL901 JL902 JL903
RS5B700-0002E2
IC901
1
GND
2
VDDRF
3
FRF1
4
FRF2
5
GNDRF
6
CP2
7
NC
8
IIC/RDSI
9
LA
10
CK
11
VDD
12
GND
13
DA
14
ROUT
15
LOUT
16
IISD
17
CP1
18
X1
19
X2
20
VDD
CL910
CL913
L902
1uH
CL911
CL907 CL909
CL912
1 2 3 4 5 6 7
7P
CN902
1 2 3
3P
CN903
CL908
CL914
CL915
L903
0.33uH
2200p
C913
1
C912
100k
R910
C911
680p
C910
680p
0.047
C909
1
C908
10
R908
0
R919
100
R907
0
R918
0.1
C903
6.3V
100
C907
0
R904
R906
0
0
R901
10
R902
10
R903
1
C901
1
C902
0
R913
0
R921
DGND
ST_DATA
RDSI
NC
ST_CLK
D +3.3V
ST_LATCH
AGND
ROUT
LOUT
IC901
FM RECEIVER
TUNER BOARD
(CHASSIS)
FM
ANTENNA
NC
13
A
15
E
D
C
4 148
G
B
1 113 10
I
9
J F
H
6257 12
1 2 3
3P
CN1501
JL1503 JL1502 JL1501
J1501
MC2840-T112-1
D1509
E
ET1501
0
R1508
1k
R1511
1k
R1501
C1511
10p
C1512
47p
C1502
47p
C1501
10p
0
R1509
C1509
0.1
AIN-L
AIN-R AGND
AUDIO IN
(CHASSIS)
AUDIO-JACK BOARD
J1701
5P
CN1702
1SW_PLUG 2ADP_19.5V 3ADP_19.5V 4ADP_GND 5ADP_GND
0.1
C1752
1N5401-C352
D1701
250V
3.15A
F1701
CL1711 CL1712 CL1714
DC-JACK BOARD
DC IN 19.5V
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
30P
CN851
1
C856
MC2840-T112-1
D851
6.3V
220
C853
15p
C854
68p
C855
1 2 3 4 5 6
6P
CN852
0
R853
0
R854
100
R856
0
R857
0.1
C852
0
R860
0
R859
DGND DGND
TPA+
USB D+
USB D-
TPA-
TPB-
TPB+
VBUS(USB 5V)
Accessory Identify
FireWire PWR+(12V) FireWire PWR+(12V)
Accessory Power
Reserved
DGND DGND
Reserved
RXD
TXD
Accessory Detect
S-VIDEO-C
S-VIDEO-Y
Composite Video
Remote Sense
LINE-IN L
LINE-IN R
LINE-OUT L
LINE-OUT R
AGND
DGND
VBUS GND D- VBUS D+ iPOD-DET CHASSIS GND
IP BOARD
iPod/iPhone
CONNECTOR
(CHASSIS)
SLR-325VCT31P
D695
5P
CN695
1 2 3 4 5
S695
CL695 CL696 CL697 CL698
820
R695
KEY_POWER
DGND
STANDBY-LED
LED_POWER LED_POWER
POWER-KEY BOARD
/
STANDBY
1 2 3
3P
CN691
JL692 JL693 JL691
VCC OUT GND
PNA4823M02S0
IC691
1 2 3
47
R691
0
R693
22k
R692
1
C692
DGND
EVER+3.3V
RMC-DOUT
IC691
REMOTE CONTROL RECEIVER
RMC BOARD
JL801 JL802 JL803 JL804
1 2 3 4
4P
CN811
1 2 3 4
4P
CN801
C813
10
C814
0.1
C815
0.1
VBUS
D-
D+
VBUS GND
USB-JACK BOARD
(CHASSIS)
JL805
(CX5iP)
+
–
+
–
TB1701
0.6uH
L1802
0.6uH
L1801
0.6uH
L1702
0.6uH
L1701
1 2 3 4
4P
CN1701
CL1701 CL1702 CL1703 CL1704
R-
R+
L-
L+
SPEAKERS
L
R
SPEAKERS
SP BOARD
(Page 22)
(Page 25)
(Page 25)
(Page 22)
(Page 24)
(Page 22)
(Page 23)
(Page 25)
(Page 25)
(Page 24)
