SECTION 8
EXPLODED VIEWS

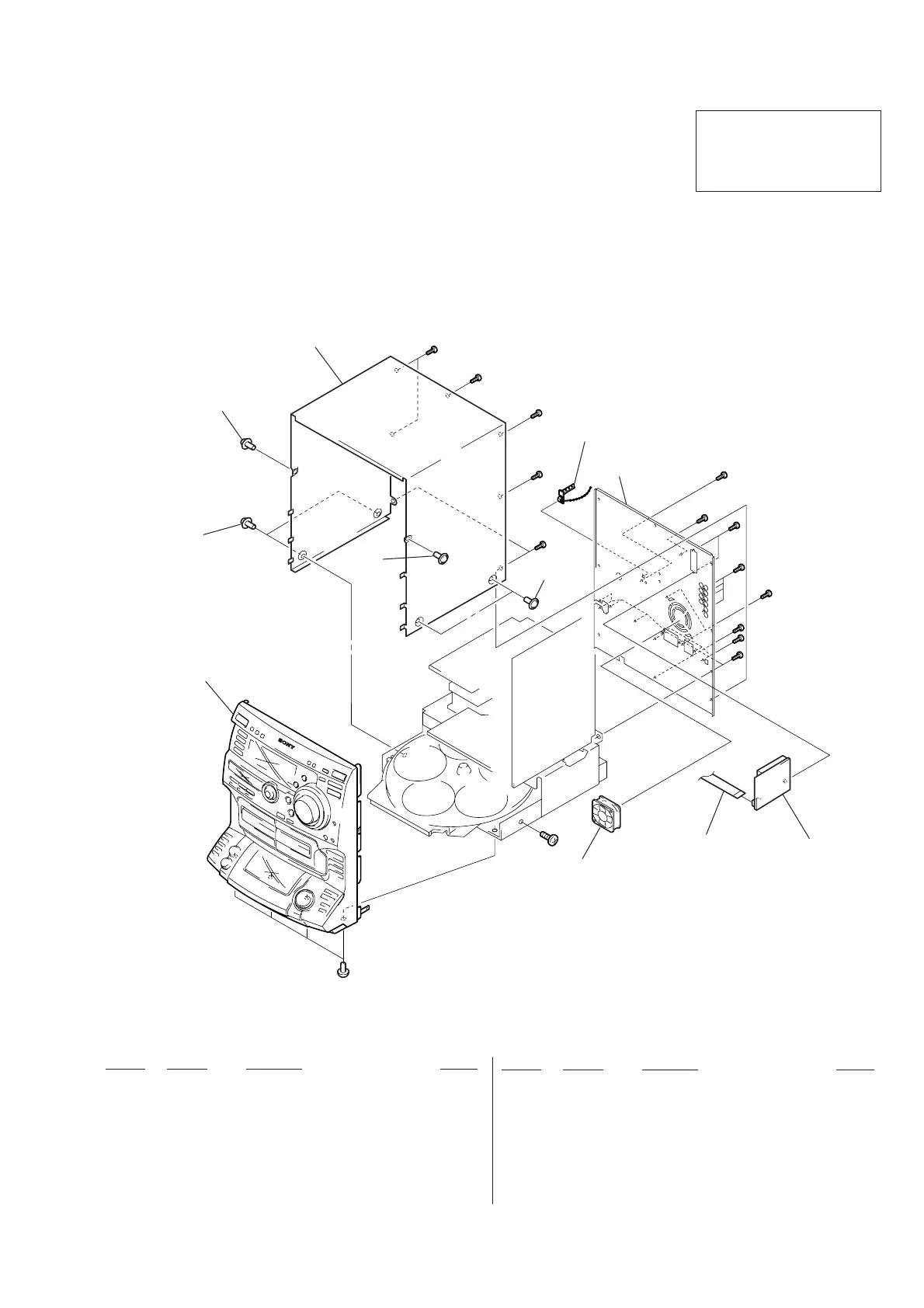

8-1. CASE AND BACK PANEL SECTION
NOTE:
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)(DR7AV)
1 1-773-009-11 WIRE (FLAT TYPE) (15 CORE)(XB800AV)
* 2 4-214-777-11 CASE
* 3 4-214-785-31 PANEL, BACK (XB800AV)(INDONESIA PRODUCT)
* 3 4-214-788-01 PANEL, BACK (DR7AV:SP)
* 3 4-214-788-11 PANEL, BACK (DR7AV:EA)
* 3 4-214-788-21 PANEL, BACK (DR7AV:AUS)
• Abbreviation
EE : East European model
EA : Saudi Arabia model
SP : Singapore model
AUS : Australian model
TH : Thailand model
* 3 4-214-788-61 PANEL, BACK (DR7AV:TH)
* 3 4-214-785-41 PANEL, BACK (XB800AV)(THAI PRODUCT)
4 3-363-099-01 SCREW (CASE 3 TP2)
5 1-233-545-11 TUNER (FM/AM)(DR7AV)
5 1-693-443-11 TUNER (FM/AM)(XB800AV)
6 4-956-370-12 BAND, PLUG FIXED (UK,AUS)
M901 1-698-792-11 FAN, DC (DR7AV)
4
4
4
2
3
4
5
1
M901 (DR7AV)
FRONT PANEL
#3
#3 (XB800AV)
#3
#3
#3
#3
#3
#3
#3 (DR7AV)
#2
#3
#1
#1
#1
#1
6 (UK,AUS)
