Sony HCD-DR7AV - Front Panel Section 1

– 108 –

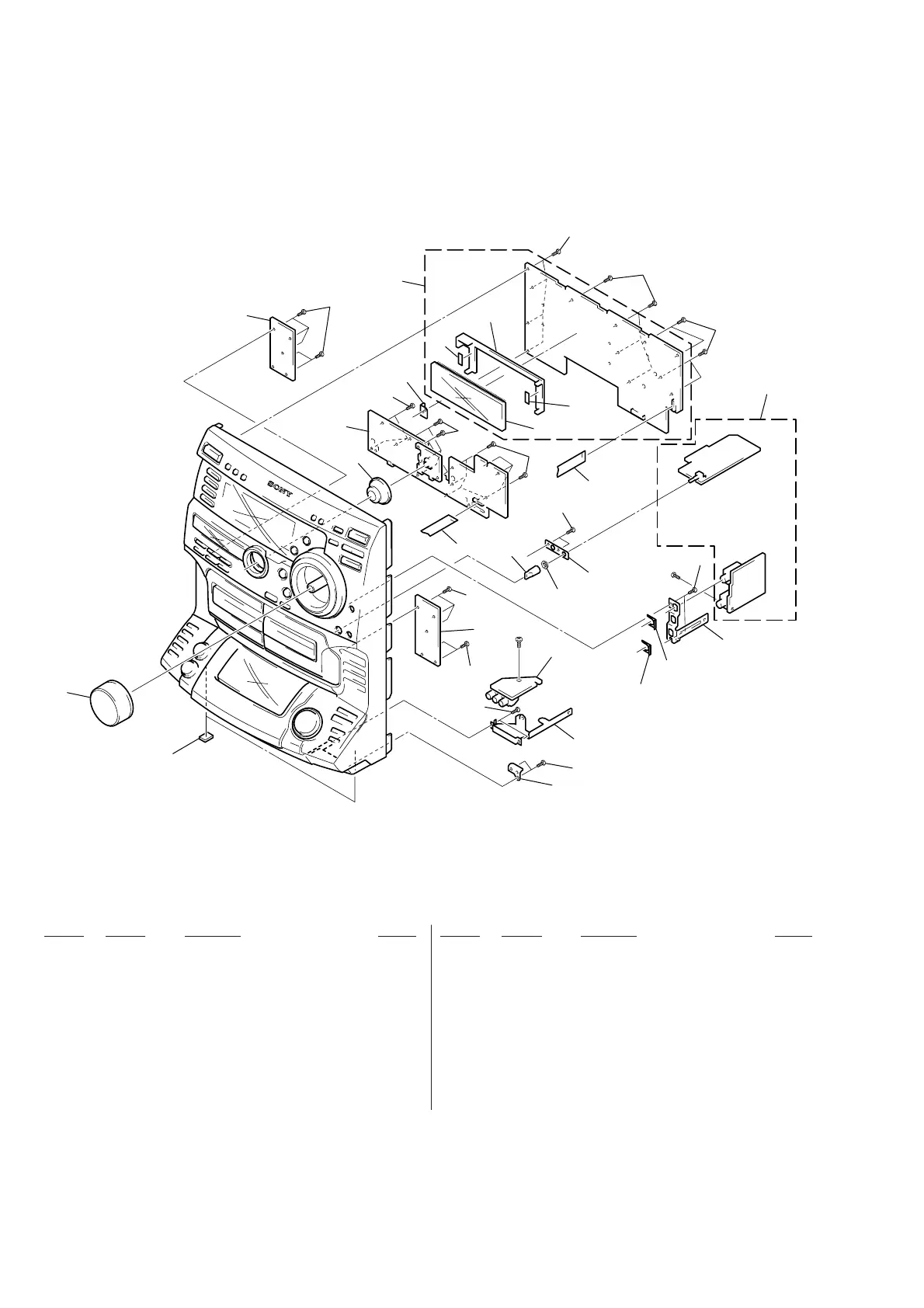

8-2. FRONT PANEL SECTION 1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
59 4-214-717-01 CURSOR
60 4-214-756-01 KNOB (MICROPHONE)
61 1-773-002-11 WIRE (FLAT TYPE) (15 CORE)(80mm)
62 1-773-034-11 WIRE (FLAT TYPE) (15 CORE)(420mm)
* 63 4-949-935-81 CUSHION (FL)
* 64 4-214-749-01 HOLDER (925), FL TUBE
65 4-951-620-01 SCREW (2.6X8), +BVTP
FL601 1-517-839-11 INDICATOR TUBE, FLUORESCENT
51 4-214-716-01 KNOB (VOL)
* 52 1-672-193-11 TC-A BOARD
* 53 1-672-194-11 TC-B BOARD
* 54 1-672-190-11 FRONT INPUT BOARD
* 55 A-4417-530-A JACK BOARD, COMPLETE
* 56 A-4417-490-A PANEL FL BOARD, COMPLETE (XB800AV)
* 56 A-4417-570-A PANEL FL BOARD, COMPLETE (DR7AV)
* 57 A-4417-502-A PANEL VR BOARD, COMPLET
58 4-948-236-21 CUSHION (107)
FL601
Supplied with
J803
not supplied
Supplied with
J801
63
63
64
not supplied
not supplied
not supplied
#3
#3
not supplied
Supplied with
RV850
51
53
61
62
54
55
52
57
65
59
60
56
65
65
65
65
65
65
65
65
65
65
65
65
58
