Sony HCD-DR7AV - Chassis Section

– 110 –

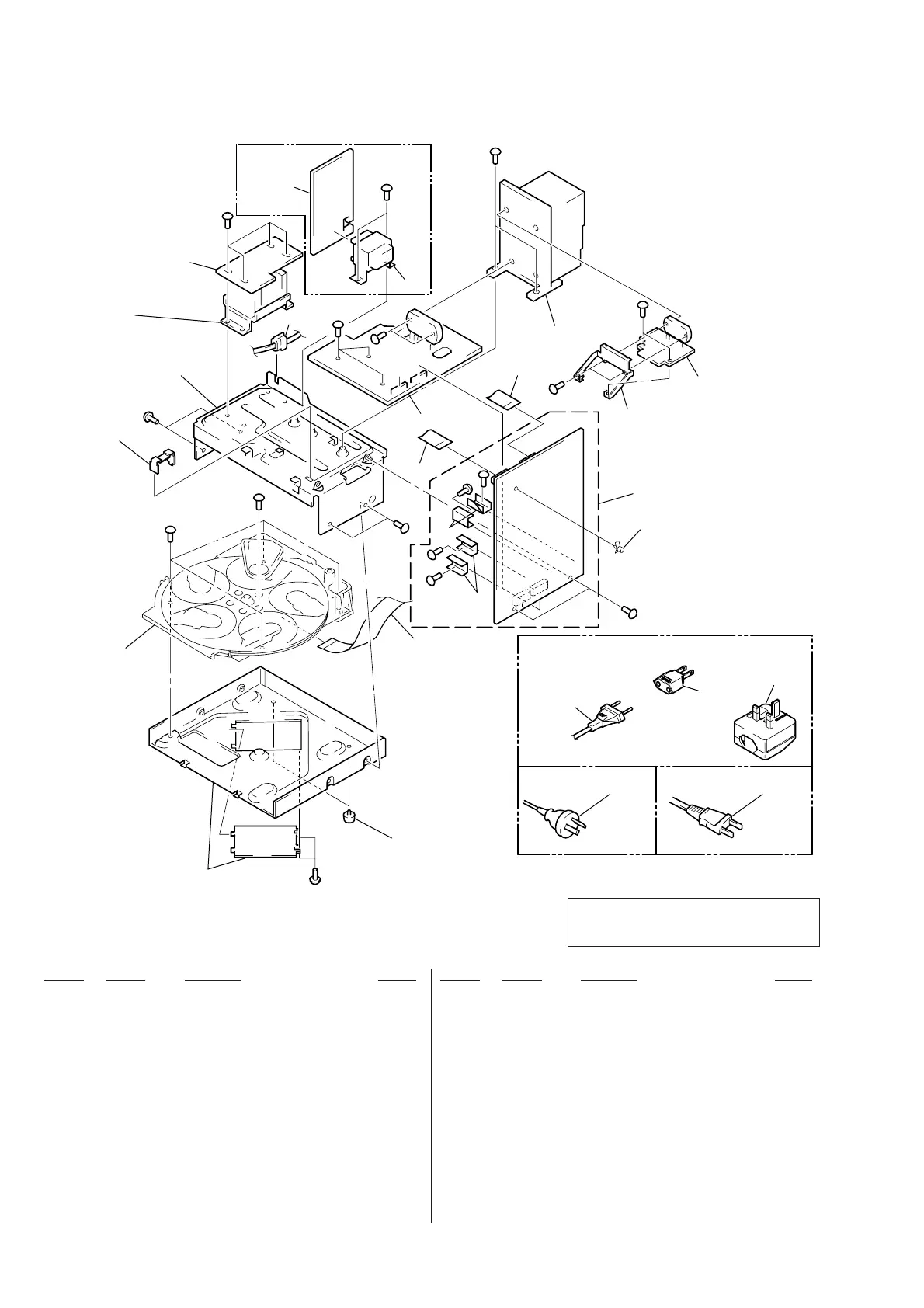

8-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 158 1-672-432-11 SUB TRANS BOARD (XB800AV)
* 159 4-988-533-01 HOLDER, PWB
160 1-773-006-11 WIRE (FLAT TYPE) (15 CORE)
161 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
* 162 A-4417-501-A SURRONUD AMP BOARD, COPLETE
163 4-875-327-31 HEAT SINK
! CNP901 1-558-943-41 CORD, POWER (TH)
! CNP901 1-575-651-21 CORD, POWER (AEP,UK,EE,CIS,SP,EA)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! T901 1-433-619-11 TRANSFORMER, POWER (XB800AV)
! T951 1-433-608-11 TRANSFORMER, POWER (XB800AV)
! T951 1-433-609-11 TRANSFORMER, POWER (DR7AV)
* 151 1-673-110-11 TRANS BOARD (DR7AV)
* 151 1-672-431-11 TRANS BOARD (XB800AV)
152 1-569-008-21 ADAPTOR, CONVERSION 2P (SP,EA)
152 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,EE,CIS)
153 3-703-244-00 BUSHING (FBS001), CORD
* 154 A-4417-477-A PA BOARD, COMPLETE (XB800AV)
* 154 A-4417-479-A PA BOARD, COMPLETE (DR7AV)
* 155 A-4417-468-A MAIN BOARD, COMPLETE (DR7AV:XB800AV)
* 155 A-4417-470-A MAIN BOARD, COMPLETE (SP,TH,AUS)
* 155 A-4419-301-A MAIN BOARD, COMPLETE (EA)
156 1-790-287-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
(SP,EA)
(UK,EE,CIS)
(AEP,UK,EE,CIS,EA,SP)
(AUS)
151
159
157
156
155
160
154
161
163
163
153
158
#8
#3
#3
#3
#3
#3
#3
#3
#3
#7
#3
CNP901
CNP901
#3
#3
T951
not supplied
not supplied
not supplied
XB800AV
not supplied
CDM37M-5BD32L
152
152
(TH)
CNP901
T901
#2
#3
#7
#3
162
not supplied
