HCD-DX400
7
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.

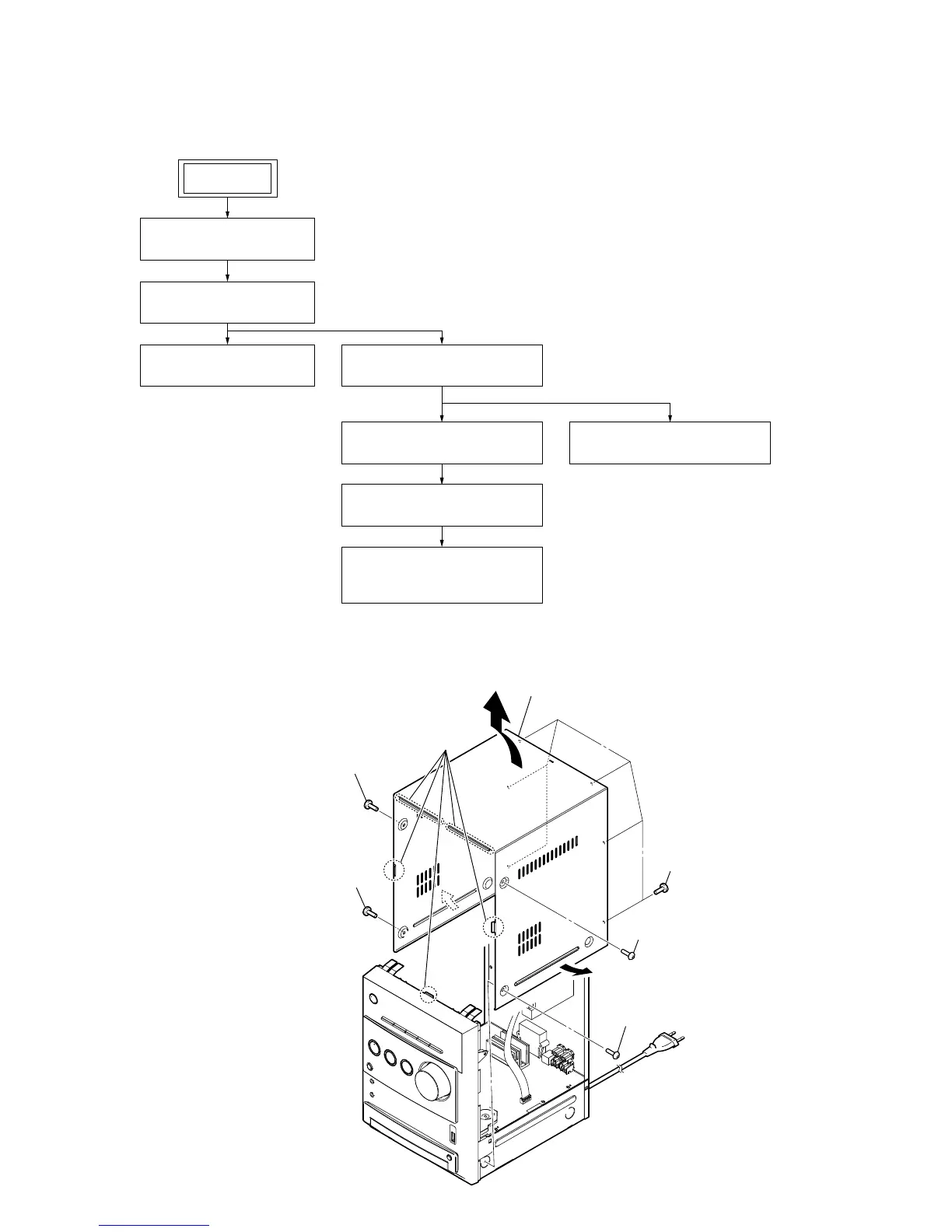

2-1. DISASSEMBLY FLOW
Note: Follow the disassembly procedure in the numerical order given.
2-2. COVER (TOP)
SET
2-3. FRONT PANEL BLOCK
(Page 8)
2-7. FFC HOLDER
(Page 10)
2-4. KNOB (VOLUME)
(Page 8)
2-8. OPTICAL PICK-UP BLOCK
(KHM-313CAA)
(Page 11)
2-5. DVD BLOCK
(Page 9)
2-9. BELT
(Page 11)
2-6. MAIN BOARD
(Page 10)
2-2. COVER (TOP)
(Page 7)
1
screw (BVTP3
u
10)
2
screw (BVTT3
u
6)
3
five claws
6
cover (top)
5
4
4
2
screw (BVTT3
u
6)
2
six screws
(BVTT3
u
6)
1
screw (BVTP3
u
10)
