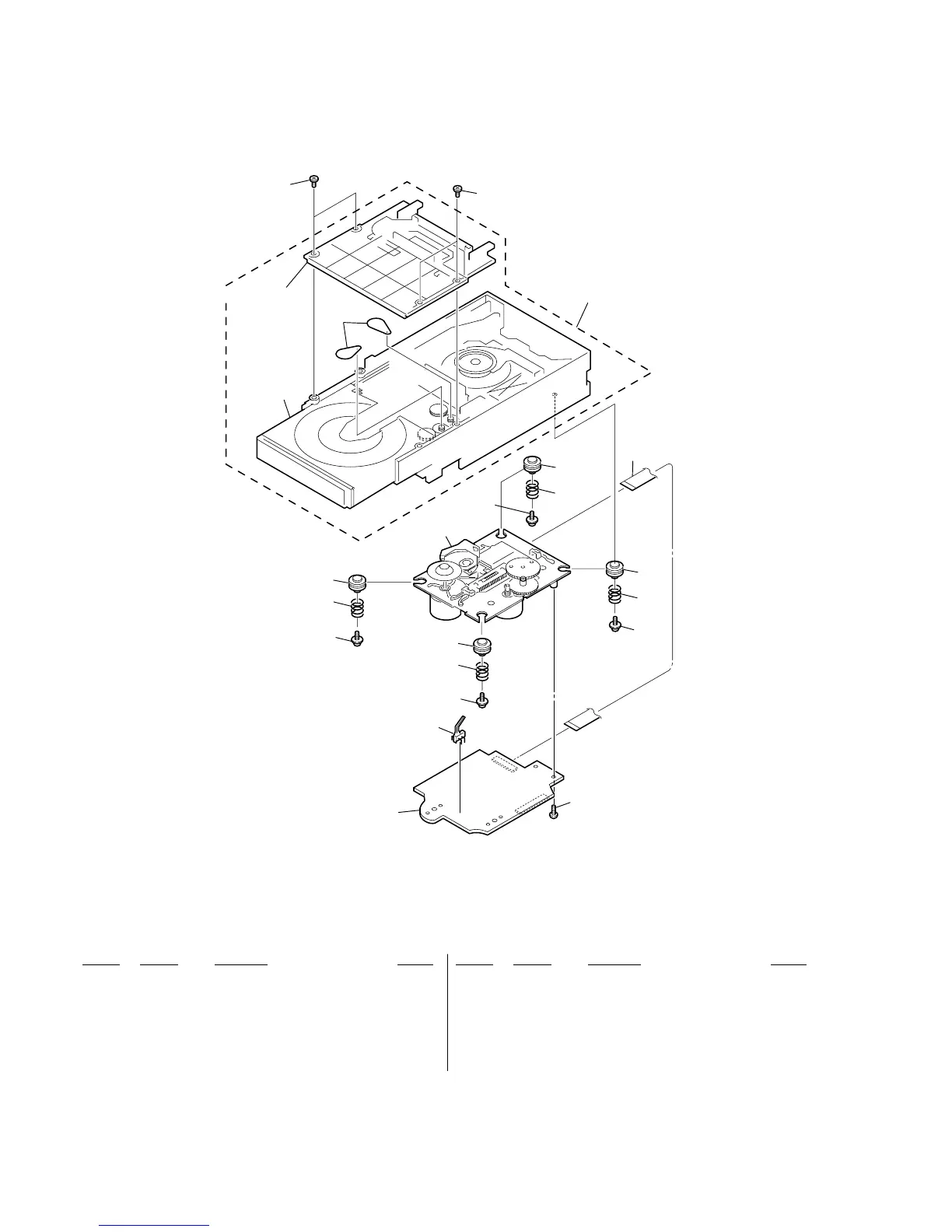

7-5. CD SECTION AND BASE UNIT (BU-K6BD83S-WOD) SECTION
208
201
205
204
20 2
S201
209
205
204
202
202
205
204
202
202
205
204
210
207
206
206
not
supplied
not
supplied
201 A-1134-279-A BD83S BOARD, COMPLETE
(US, CND, E3, SP, AUS)
201 A-1179-506-A BD83S BOARD, COMPLETE (AEP, UK, CET, KR)
202 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
204 4-227-045-31 SPRING (INSULATOR), COIL
205 4-227-549-11 INSULATOR
206 4-951-620-01 SCREW (2.6X8), +BVTP
207 1-797-193-12 MECHANICAL, CD (DLM3A23-11)
208 1-827-992-11 WIRE (FLAT TYPE) (16 CORE)
0209 A-4735-357-A OP BASE ASSY (KSM213DHAP/ZRP1)
210 2-632-062-01 BELT (DLM3A)
S201 1-771-853-11 SWITCH, DETECTION (LIMIT)
