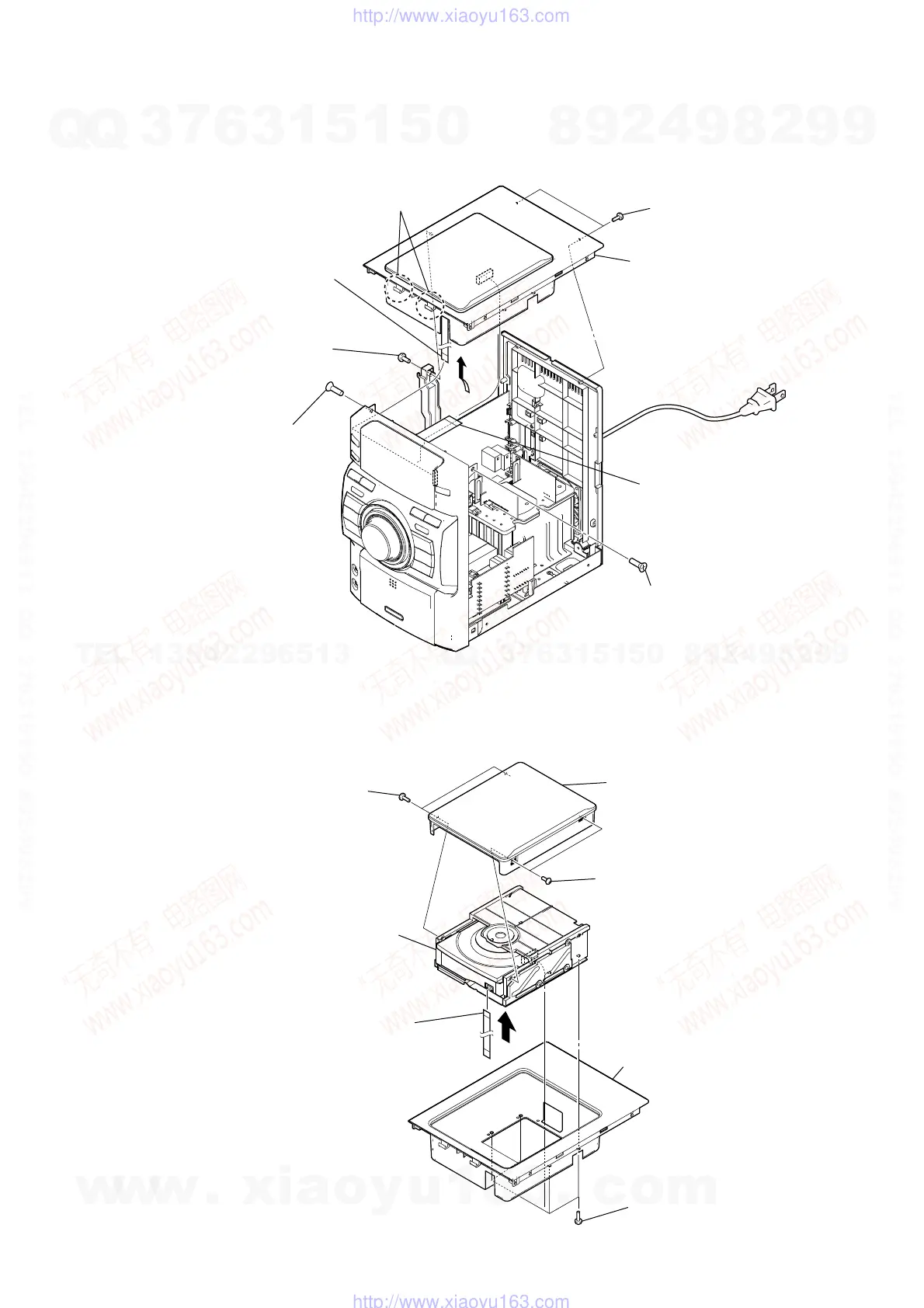

3-11. TOP PANEL BLOCK
(HCD-EC79i: UK, Australian/EC99i)
screw
(KTP3
×
10)
screw
(KTP3
×
10)
screw
(BVTP3
×
10)
two screws
(BVTP3
×
10)
flexible flat cable (5 core)
(CN302)
flexible flat cable (21 core)
(CN201)
top panel block
two claws
3-12. CD MECHANISM DECK (CDM76A-K6BD90-WOD)
(HCD-EC79i: UK, Australian/EC99i)
two screws
(B2.6)
two screws
(B2.6)
top lid
CD mechanism deck block
(CDM76A-K6BD90-WOD)
flexible flat cable (5 core)
four screws
(BVTP3
×
10)
top panel (loading)
