HCD-EC69i/EC79i/EC99i

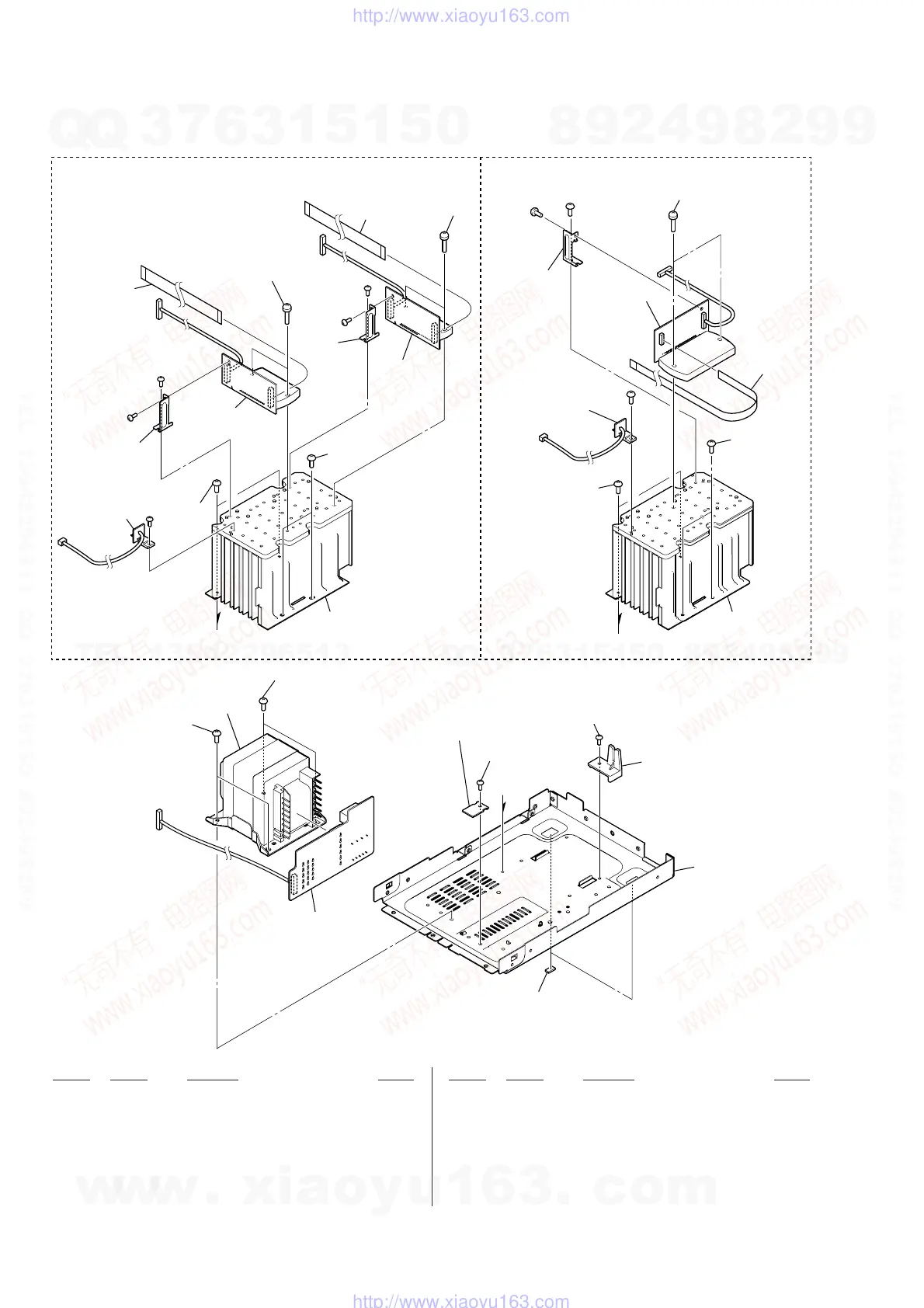

7-9. CHASSIS SECTION
(HCD-EC79i/EC99i)
A
A
A
#1
#1
#1
#1
#1
#1
#1
#1
401
402
402
402
403
404
404
404
407
404
404
404
405
405
406
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
(REG board)
not supplied
(3CH AMP board)
not supplied
(2CH-4CH
AMP board)
not supplied
(2CH-4CH
AMP board)
not supplied
(REG board)
not supplied
(PT-SINGLE board)
not supplied
(CABLE HOLD board)
PT005
(EC99i) (EC79i)
401 1-832-806-21 CABLE, FLEXIBLE FLAT (7 CORE) (EC99i)
402 3-905-609-31 SCREW (TRANSISTOR)
403 1-831-744-21 CABLE, FLEXIBLE FLA
T (5 CORE) (EC99i)
404 3-077-331-01 +BV3 (3-CR)
405 4-900-386-01 SCREW
406 1-832-795-21 CABLE, FLEXIBLE FLAT (5 CORE) (EC79i)
407 4-225-252-01 CUSHION (FOOT)
0 PT005 1-445-565-11 TRANSFORMER, POWER (EC79i: US, CND/
EC99i: US, CND)
0 PT005 1-445-566-11 TRANSFORMER, POWER (EC79i: UK/EC99i: UK)
0 PT005 1-445-569-11 TRANSFORMER, POWER (EC79i: AUS/EC99i:
AUS)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
