Sony HCD-EX770 - (2) MECHANISM DECK SECTION-1 (MDM-3 A); SECTION 8 ELECTRICAL PARTS LIST

– 37 –

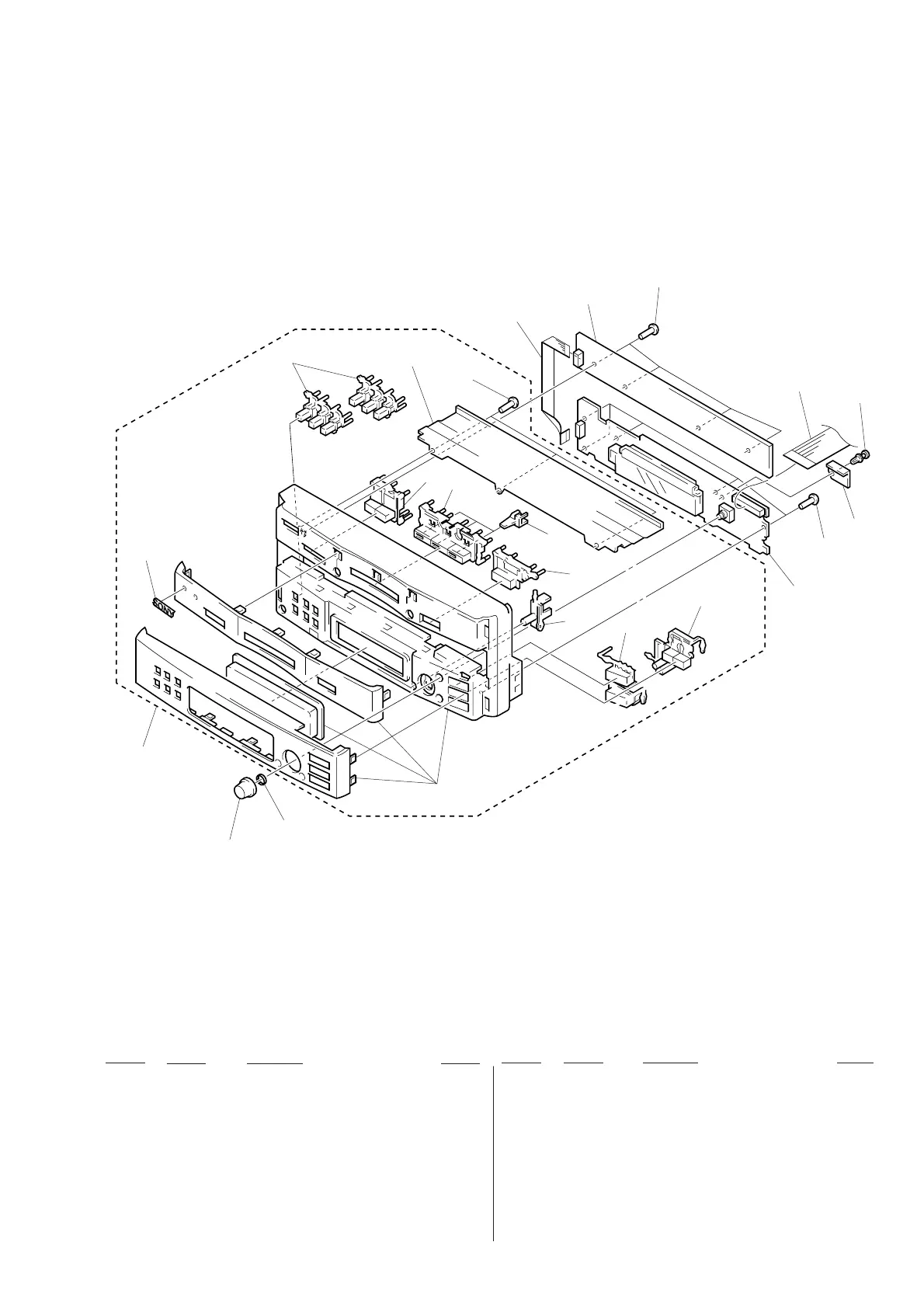

(2) FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-985-925-01 KNOB (JOG)
52 X-4947-654-1 PANEL ASSY, FRONT
53 4-962-708-01 EMBLEM (4-A), SONY
54 4-985-890-01 BUTTON (MODE)
55 4-951-620-01 SCREW (2.6X8), +BVTP
56 4-985-894-01 BUTTON (EDIT) (EX-CHANGE, SKIP)
57 4-985-909-01 BUTTON (CD3) (DISC1, DISC2, DISC3)
58 4-985-913-01 INDICATOR (CD)
59 4-985-910-01 BUTTON (O/C) (§, OPEN/CLOSE)
60 4-985-911-01 BUTTON (EX)
61 X-4947-763-1 BUTTON (F/R) ASSY (0, ))
62 4-985-892-01 BUTTON (PLAY) (fl, p)
* 63 A-4699-278-A PANEL BOARD, COMPLETE
64 1-777-861-11 WIRE (FLAT TYPE) (29 CORE)
* 65 A-4699-659-A DISPLAY BOARD, COMPLETE
66 1-777-860-11 WIRE (FLAT TYPE) (9 CORE)
67 4-812-134-11 RIVET (DIA. 3.5), NYLON
68 4-987-952-01 INSULATOR
69 4-988-161-01 SPRING, RING
