HCD-FLX5D/FLX7D

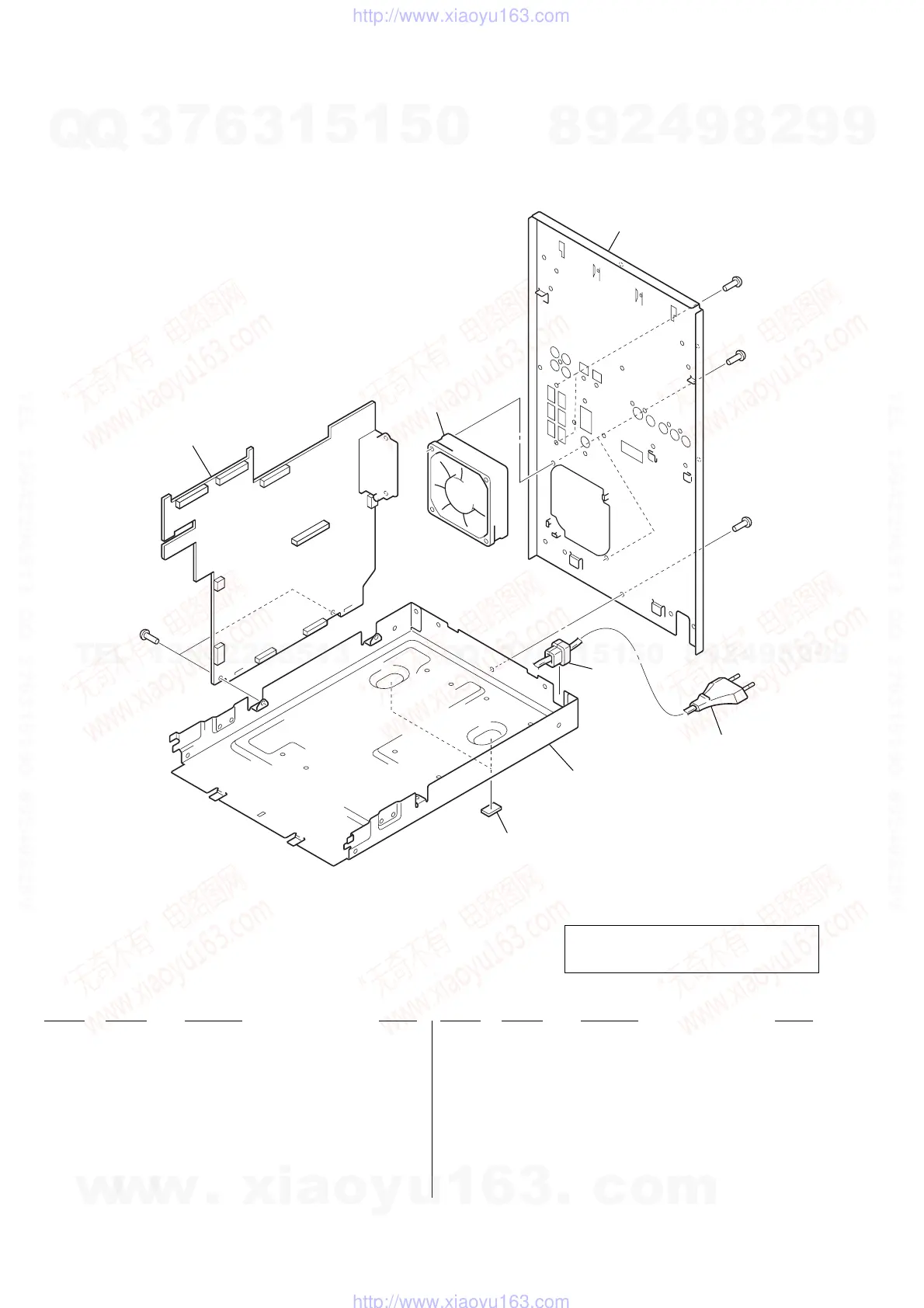

8-9. SP RELAY BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
451 4-225-252-01 CUSHION (FOOT)
452 A-4753-509-A SP RELAY BOARD, COMPLETE
(EXCEPT FLX5D: KR, TH)
452 A-4753-523-A SP RELAY BOARD, COMPLETE (FLX5D: KR)
452 A-4753-573-A SP RELAY BOARD, COMPLETE (FLX5D: TH)
* 454 3-703-244-00 BUSHING (2104), CORD
(EXCEPT FLX5D: E2, E3, E15/FLX7D: E15)
454 3-703-571-11 BUSHING (S) (4516), CORD
(FLX5D: E2, E3, E15/FLX7D: E15)
0455 1-769-079-23 CORD, POWER (FLX5D: KR)
0455 1-775-786-21 CORD, POWER (FLX5D: EA/FLX7D: EA)
0455 1-777-071-83 CORD, POWER (FLX5D: SP, MY, PH)
0455 1-783-203-13 CORD, POWER (FLX5D: AUS)
0455 1-824-818-11 CORD, POWER (WITH CONNECTOR)
(FLX5D: TH)
0455 1-827-226-11 CORD, POWER
(FLX5D: E2, E3, E15/FLX7D: E15)
M801 1-763-488-51 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
451
452
455
454
#1
not supplied
not supplied
M801
#1
#1
#1
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
