Sony HCD-FR1 - Front Panel Section Exploded View

42
HCD-FR1/FR8/FR9

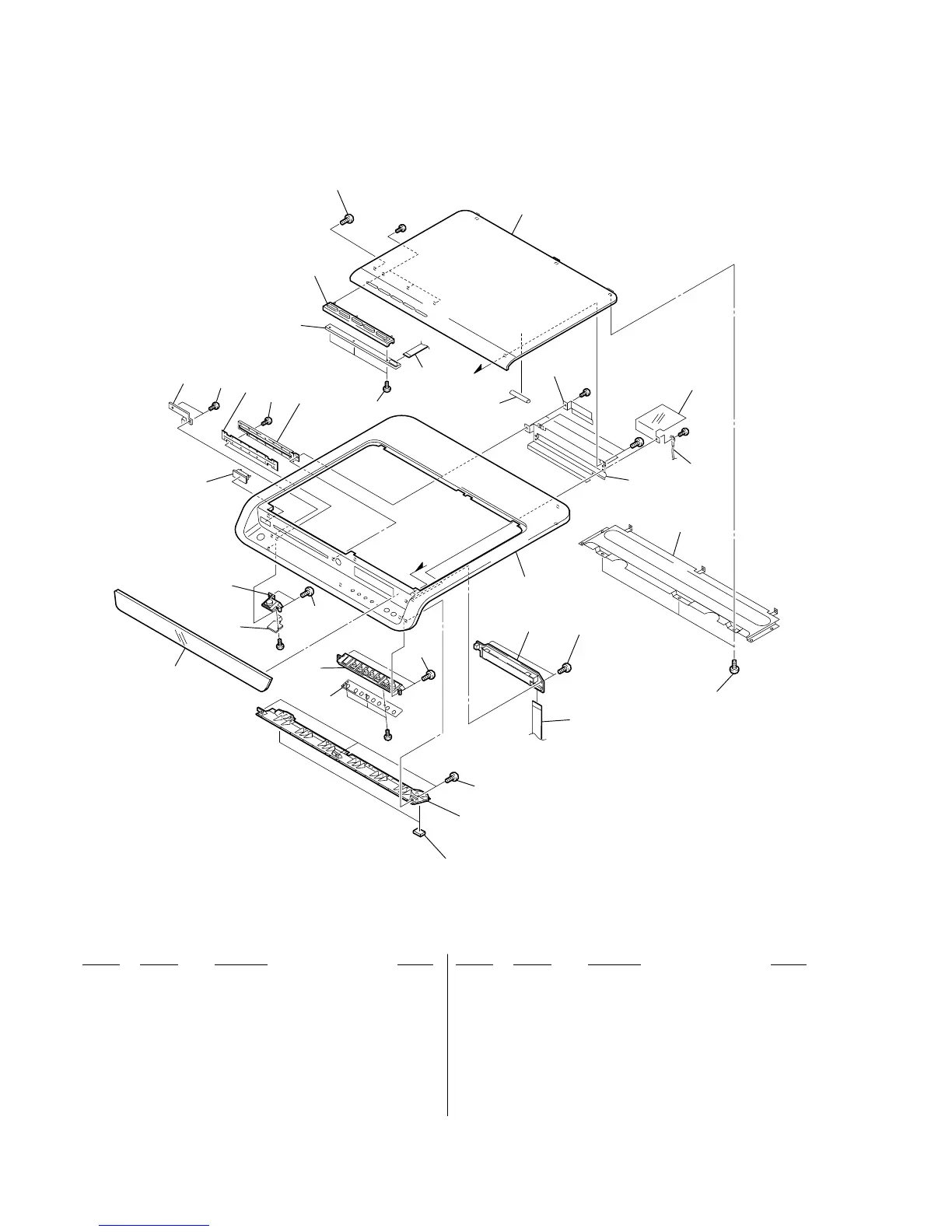

4-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-077-331-21 +BV3 (3-CR)
52 X-4956-316-1 BUTTON SUB ASSY, DISC
53 4-253-902-01 CUSHION, SLOT
54 X-4956-308-1 BUTTON (POWER) SUB ASSY
55 X-4956-319-1 WINDOW SUB ASSY
56 4-253-918-01 PANEL (AL), FRONT
57 4-253-910-01 PANEL (ML), FRONT (FR1)
57 4-253-910-11 PANEL (ML), FRONT (FR8)
57 4-253-910-21 PANEL (ML), FRONT (FR9)
58 A-4751-757-A FL BOARD, COMPLETE
59 X-4956-315-1 BUTTON SUB ASSY, PLAY
60 4-253-909-01 PANEL, BOTTOM
61 4-232-478-31 FOOT
62 1-829-320-11 FLEXIBLE FLAT CABLE (13 CORE)
63 1-829-321-11 FLEXIBLE FLAT CABLE (17 CORE)
64 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
65 7-685-133-19 SCREW +P2.6X6, TYPE 2
#3 7-685-133-19 SCREW +P2.6X6 TYPE2
a
a
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
#3
#3
#3
#3
#3
#3
not
supplied
52
62
64
64
64
63
53
54
55
56
51
51
51
57
58
59
65
65
65
60
61
