Sony HCD-FR1 - Chassis Section

43
HCD-FR1/FR8/FR9
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

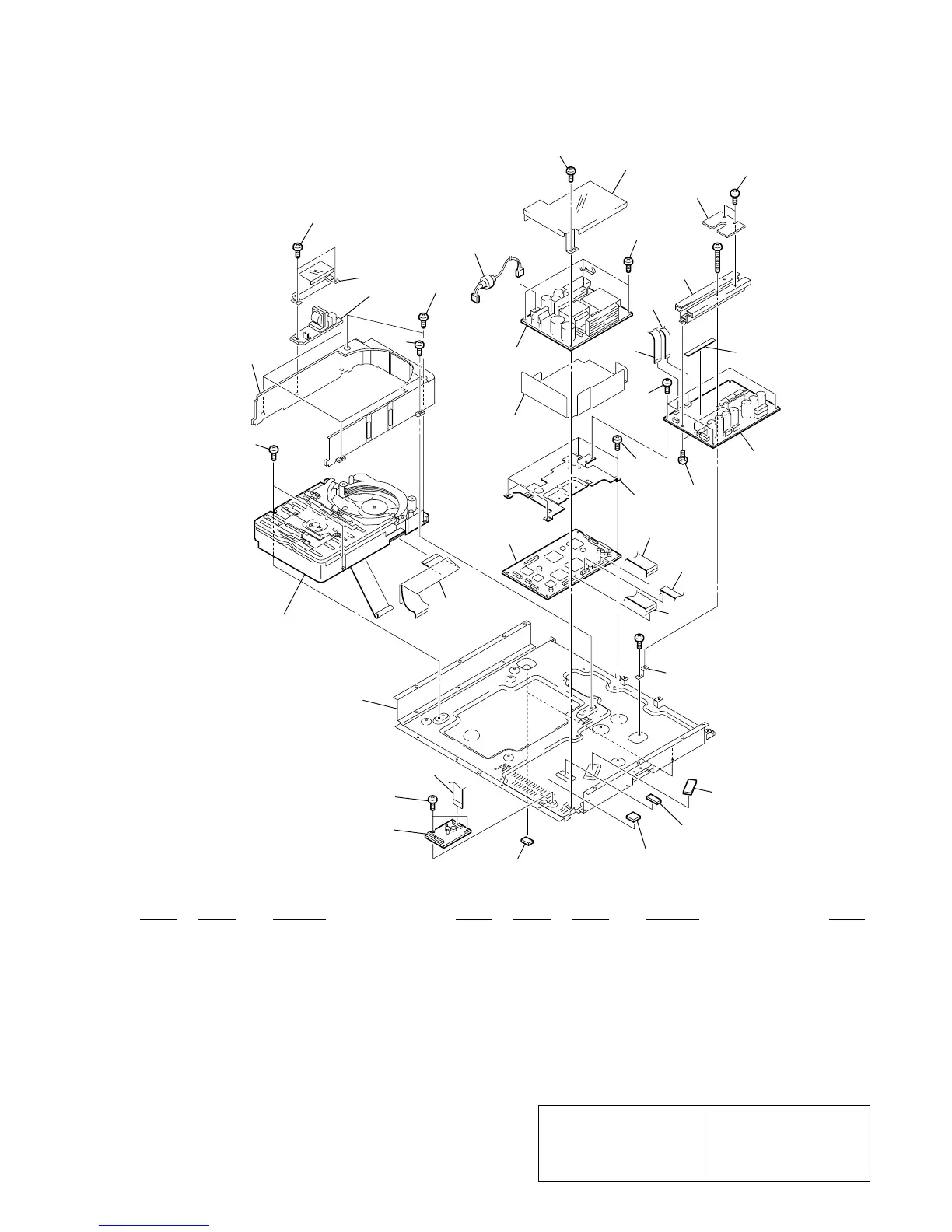

4-3. CHASSIS SECTION
101 3-077-331-01 +BV3 (3-CR)
102 A-4751-785-A DMB08 BOARD, COMPLETE (FR1)
102 A-4753-404-A DMB08 BOARD, COMPLETE (FR8)
102 A-4753-472-A DMB08 BOARD, COMPLETE (FR9)
103 A-4751-769-A DDCON BOARD, COMPLETE
104 A-4751-783-A AMP BOARD, COMPLETE (FR1)
104 A-4753-468-A AMP BOARD, COMPLETE (FR8)
104 A-4753-478-A AMP BOARD, COMPLETE (FR9)
105 4-232-478-31 FOOT
106 1-829-322-11 FLEXIBLE FLAT CABLE (9 CORE)
107 1-829-319-11 FLEXIBLE FLAT CABLE (17 CORE)
108 1-828-349-11 WIRE (FLAT TYPE) (17 CORE)
109 1-829-323-11 FLEXIBLE FLAT CABLE (29 CORE)
110 1-829-326-11 FLEXIBLE FLAT CABLE (15 CORE)
111 1-829-325-11 FLEXIBLE FLAT CABLE (29 CORE)
112 1-829-324-11 FLEXIBLE FLAT CABLE (28 CORE)
113 1-500-657-11 CORE, FERRIET
0114 1-468-838-11 REGULATOR, SWITCHING
#2 7-685-650-79 SCREW +BVTP3X16 TYPE2 IT-3
#4 7-621-775-10 SCREW +B2.6X4
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
not
supplied
mechanism deck
section-1
(CDM69-DVBU16)
not
supplied
not
supplied
not
supplied
#2
#4
not
supplie
d
101
101
101
101
101
101
101
101
101
102
103
108
109
110
111
112
113
104
105
106
107
101
101
not
supplied
114
Ver 1.3
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
