SECTION 2
DISASSEMBLY

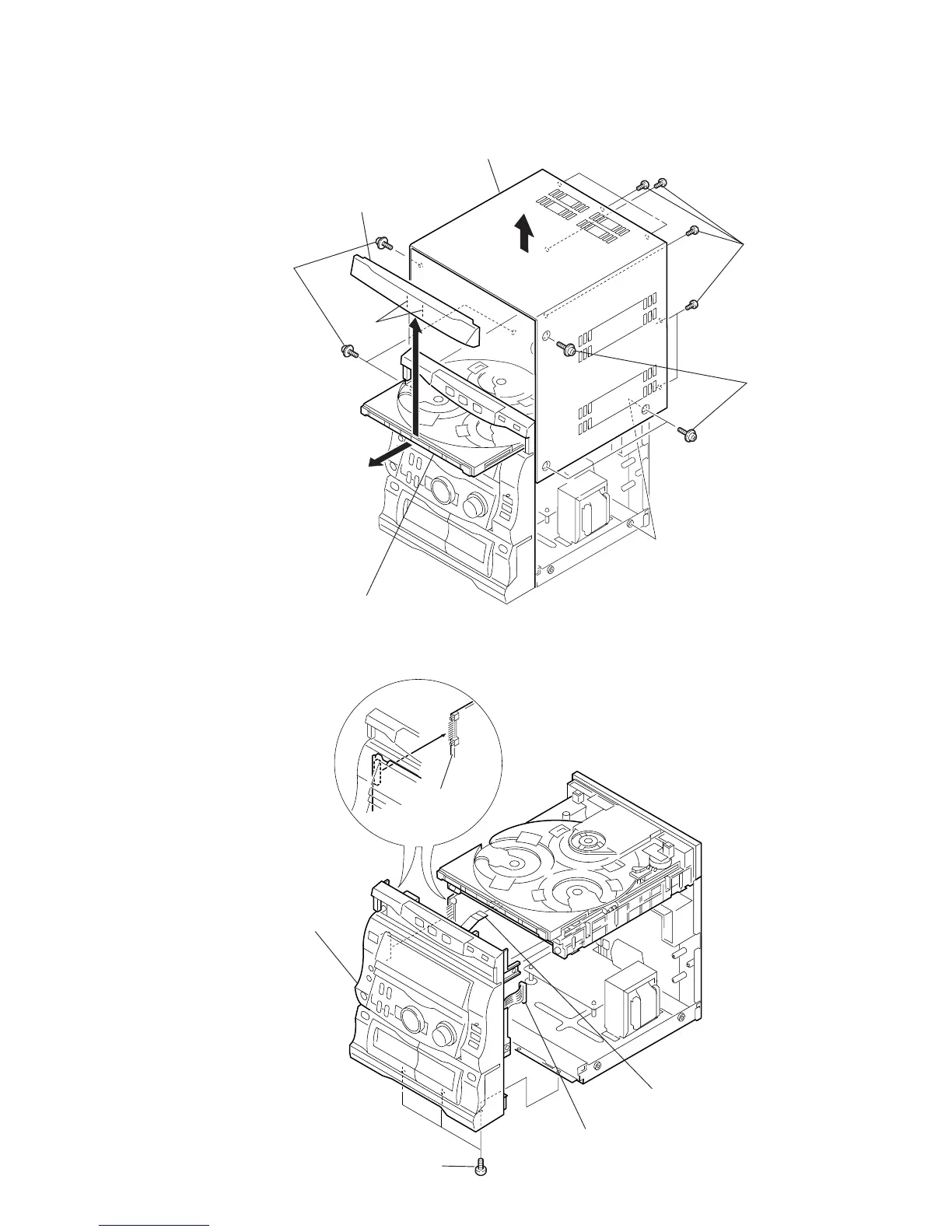

2-1. UPPER COVER AND CD DOOR
Note : Follow the disassembly procedure in the numerical order given.
2-2. FRONT PANEL
1 Three srews
2 Three screws
3 Seven screw
s
4 Upper cover
5 Pull out the CD tray and remove the
CD door with releasing craws into the
directioin of arrow.
6 CD door
claws
4 Flat type wire
(CN09)
2 Connector
(CN302)
1 Three screws
5 Front panel
3 Flat type wir
e
(CN09)
