Sony HCD-GRX90AV - Disassembly Procedures

– 8 –
SECTION 3
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

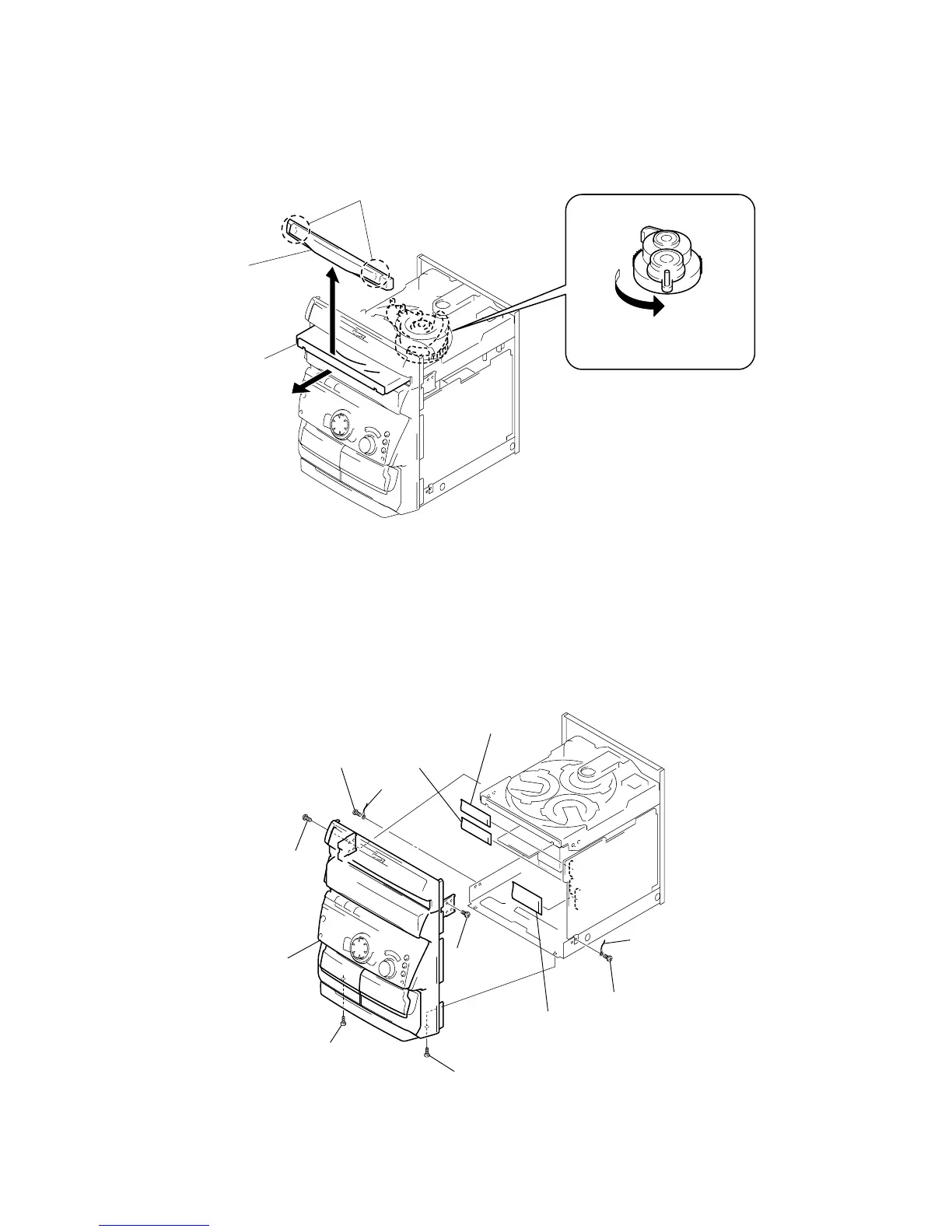

3-1. LOADING PANEL
3-2. FRONT PANEL
3 Loading panel
assembly
2 Pull-out the disc tray.
1 Turn the cam to the direction
of arrow.
Claws
3 Screw
(
BVTT3x6
)
4 Screw (BVTT3x6)
0 Front panel
2 Screw (BVTT3x6)
6 Screw (BVTT3x10)
5 Screw
(BVTT3x10)
1 Screw (BVTT3x6)
7 Flat type wire
(CN141)
8 Flat type wire
(CN131)
Lead wire
Lead wire
9 Flat type wire
(CN132)
