HCD-GT22/GT44/GT55
SERVICE POSITION

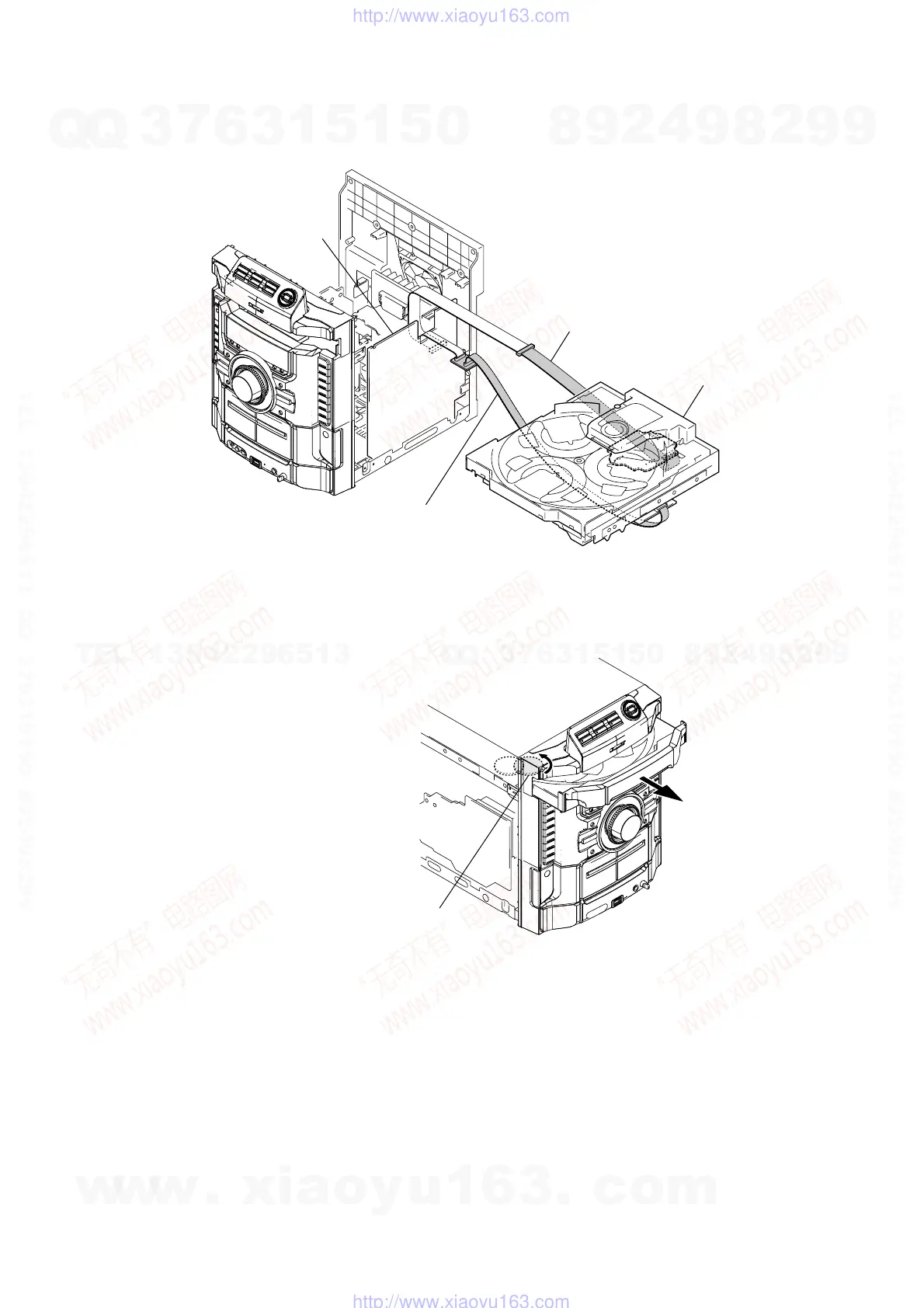

In checking the CD mechanism deck, prepare jig (extension cable J-2501-248-A (27 core/300 mm))/J-2501-077-A (13 core/300 mm)
Connect jig (extension cable J-2501-248-A
to the flexible flat cable (27 core) and
CD board (CN202).
MAIN board
CD mechanism deck
Connect jig (extension cable J-2501-077-A)
to the flexible flat cable (13 core) and
DRIVER board (CN701).
HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
1
Turn the gear (loading A)
to the direction of the arrow.
