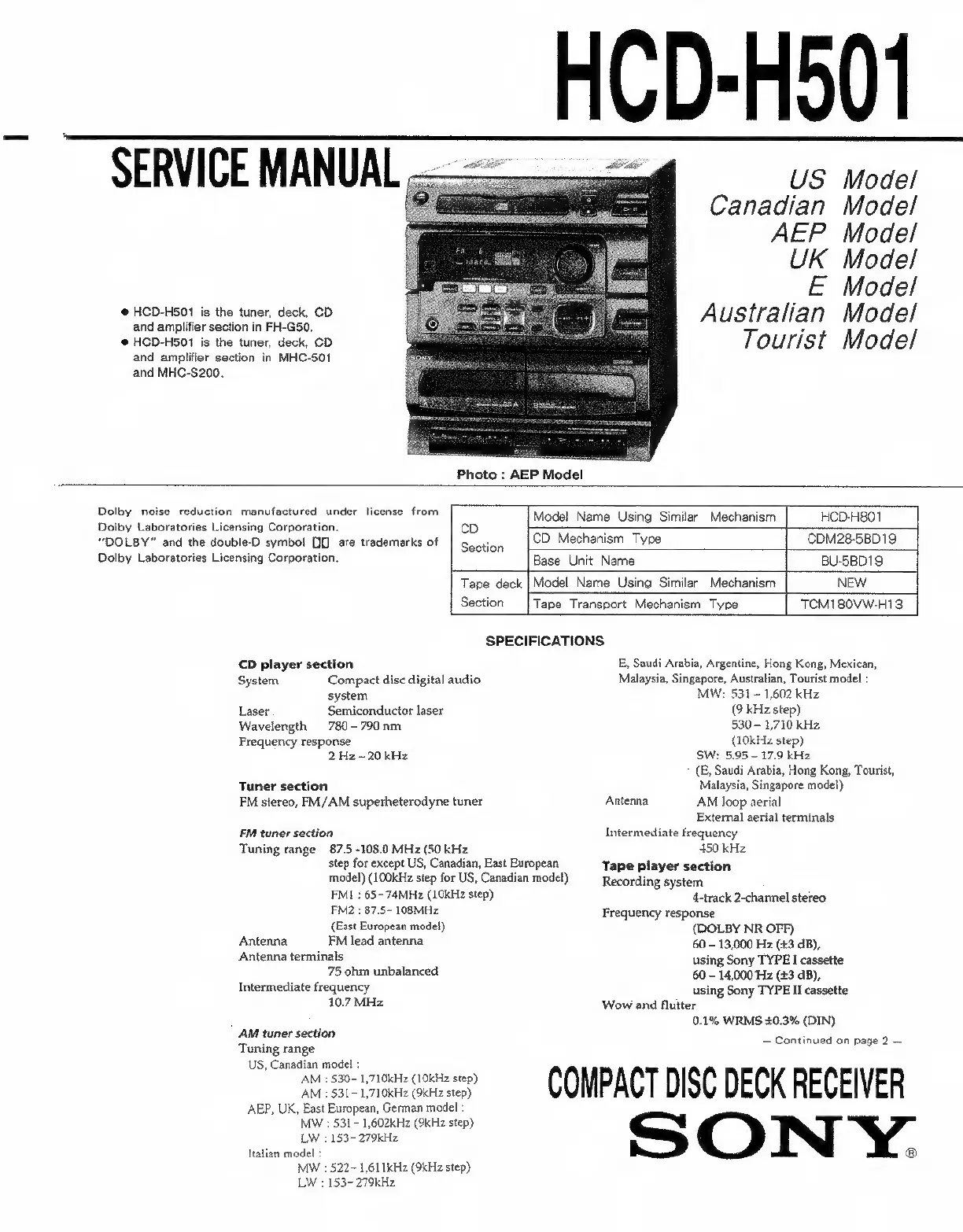

SERVICE MANUAL
@ HCD-H501 is the tuner, deck, CD
and amplifier section in FH-G50.
@ HCD-H501 is the tuner, deck, CD
and amplifier section in MHC-501
and MHC-S200.
HCD-H501
US Model
Canadian Model
AEP. Model
UK Model
E Model
Australian Model
Tourist Model
Photo : AEP Model
Dolby noise reduction manufactured under license from Model Name Using Similar Mechanism HOD-H801
Dolby Laboratories Licensing Corporation, cD .
“DOLBY” and the double-D symbol DO are trademarks of | section CD Mechanism Type CDM28-5BD19
Dolby Laboratories Licensing Corporation. Base Unit Name BU-5BD19
Tape deck |Model Name Using Similar Mechanism NEW
Section Tape Transport Mechanism Type TCM180VW-H13
SPECIFICATIONS
CD player section
System Compact disc digital audio
system
Laser Semiconductor laser
Wavelength 780-790. nm
Frequency response
2 Hz~20 kHz
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 -108.0 MHz (50 kHz
step for except US, Canadian, East European
model) (100kHz step for US, Canadian model)
FMI : 65- 74MHz (LOkHz step)
FM2 : 87.5- 108MHz
(East European model)
Antenna FM lead antenna
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
US, Canadian model :
AM : $30~ 1,710kHz (10kHz step)
AM : $31 1,710kHz (9kHz step)
AEP, UK, East European, German model :
MW : 531~ 1,602kHz (9kHz step)
LW : 153-279kHz
Italian model
MW : 522- 1,611kHz (9kHz step)
LW : 153-279kHz
E, Saudi Arabia, Argentine, Hong Kong, Mexican,
Malaysia, Singapore, Australian, Tourist model :
MW: 531 - 1,602 kHz
(9 kHz step)
530 - 1,710 kHz
(10kHz step)
SW: 5.95 - 17.9 kHz
(E, Saudi Arabia, Hong Kong, Tourist,
Malaysia, Singapore model)
AM loop aerial
External aerial terminals
Intermediate frequency
450 kHz
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
60 ~ 13,000 Hz (3 dB),
using Sony TYPE I cassette
60 - 14,000 Hz (£3 dB),
using Sony TYPE II cassette
Wow and flutter
0.1% WRMS +0.3% (DIN)
— Continued on page 2 ~
Antenna
COMPACT DISC DECK RECEIVER
SONY.
