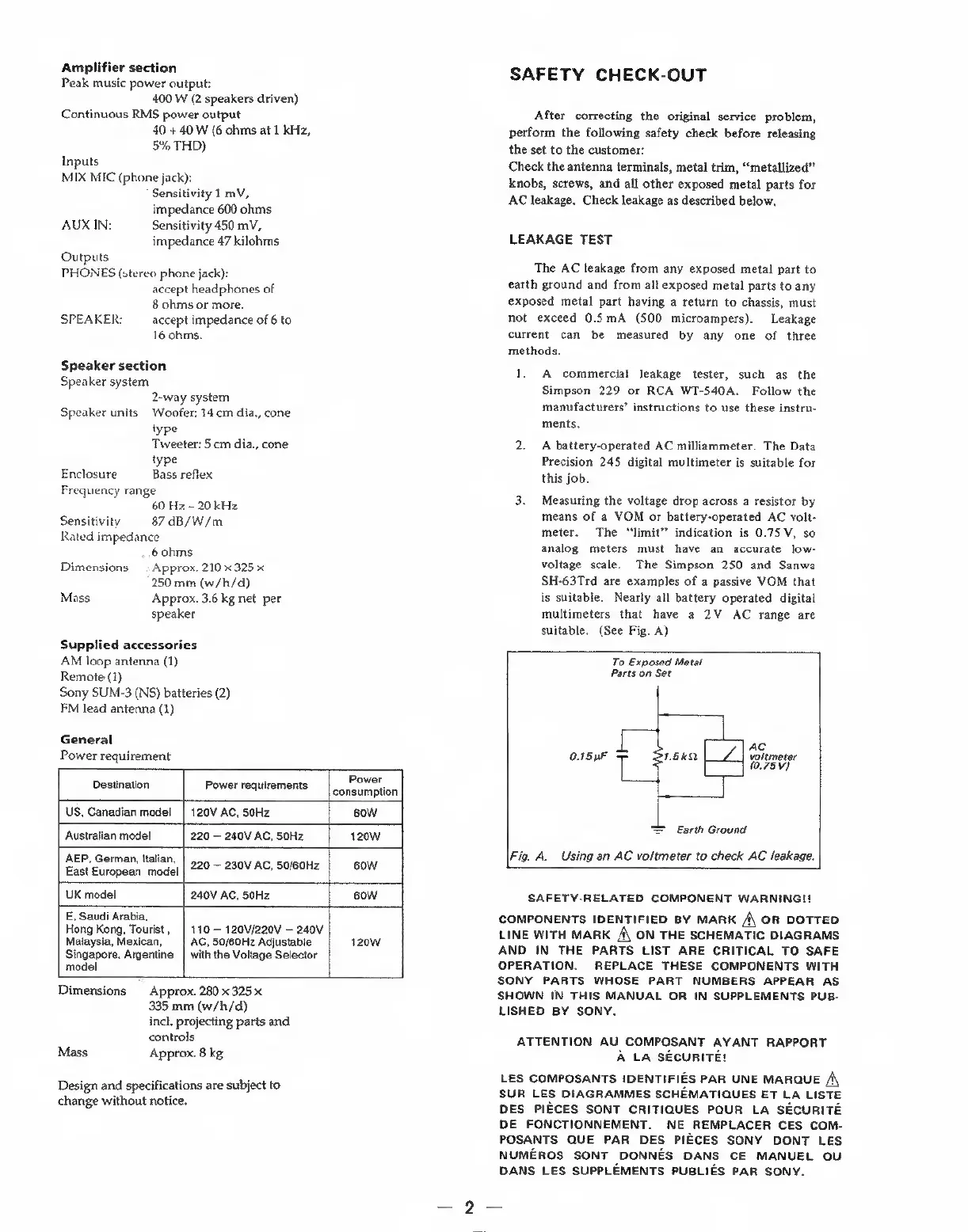

Amplifier section
Peak music power output:
400 W (2 speakers driven)
Continuous RMS power output
40 + 40 W (6 ohms at 1 kHz,
5% THD)
Inputs
MIX MIC (phone jack):
Sensitivity 1 mV,
impedance 600 ohms
AUX IN: Sensitivity 450 mV,
impedance 47 kilohms
Outputs
PHONES (stereo phone jack):
accept headphones of
8 ohms or more.
accept impedance of 6 to
16 ohms.
SPEAKER:
Speaker section
Speaker system
2-way system
Speaker units Woofer: 14 cm dia., cone
type
Tweeter: 5 cm dia. cone
type
Enclosure Bass reflex
Frequency range
60 Hz, - 20 kHz
Sensitivity 87 dB/W/m
Rated impedance
6 ohms
Dimensions _ Approx. 210 x 325 x
250 mm (w/h/d)
Mass Approx. 3.6 kg net per
speaker
Supplied accessories
AM loop antenna (1)
Remote (1)
Sony SUM-3 (NS) batteries (2)
FM lead antenna (1)
General
Power requirement
" 1 Power
Destination Power requirements consumption
US, Canadian model_| 120V AC, S0Hz 60W
‘Australian model 220 — 240V AC, S0Hz 120W
AEP, German, Italian, 5
East European model 220 — 230V AC, 50/60Hz 60W
UK model 240V AC, 50Hz 6ow
E, Saudi Arabia,
Hong Kong, Tourist , 110 — 120V/220V — 240V
Malaysia, Mexican, | AC, 50/60Hz Adjustable 120W
Singapore, Argentine | with the Voltage Selector
model
Dimensions — Approx. 280 x 325 x
335 mm (w/h/d)
incl. projecting parts and
controls
Mass Approx. 8 kg
Design and specifications are subject to
change without notice.
SAFETY CHECK-OUT
After correcting the original service problem,
perform the following safety check before releasing
the set to the customer:
Check the antenna terminals, metal trim, “metallized”
knobs, screws, and all other exposed metal parts for
AC leakage, Check leakage as described below.
LEAKAGE TEST
The AC leakage from any exposed metal part to
earth ground and from all exposed metal parts to any
exposed metal part having a return to chassis, must
not exceed 0.5mA (S00 microampers). Leakage
current can be measured by any one of three
methods.
1. A commercial leakage tester, such as the
Simpson 229 or RCA WT-540A. Follow the
manufacturers’ instructions to use these instru-
ments.
2. A battery-operated AC milliammeter. The Data
Precision 245 digital multimeter is suitable for
this job.
3. Measuring the voltage drop across a resistor by
means of a VOM or battery-operated AC volt-
meter. The “limit” indication is 0.75V, so
analog meters must have an accurate low-
voltage scale. The Simpson 250 and Sanwa
SH-63Trd are examples of a passive VOM that
is suitable. Nearly all battery operated digital
multimeters that have a 2V AC range are
suitable. (See Fig. A)
To Exposed Metal
Parts on Set
ac
0.15 uF 1.542 |_L£ | voltmeter
(0.75 V)
= Earth Ground
Fig. A. Using an AC voltmeter to check AC leakage.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK /\ OR DOTTED
LINE WITH MARK A\ ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY,
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE MARQUE /\,
SUR LES DIAGRAMMES SCHEMATIQUES ET LA LISTE
DES PIECES SONT CRITIQUES POUR LA SECURITE
DE FONCTIONNEMENT. NE REMPLACER CES COM-
POSANTS QUE PAR DES PIECES SONY DONT LES
NUMEROS SONT DONNES DANS CE MANUEL OU
DANS LES SUPPLEMENTS PUBLIES PAR SONY.
