SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

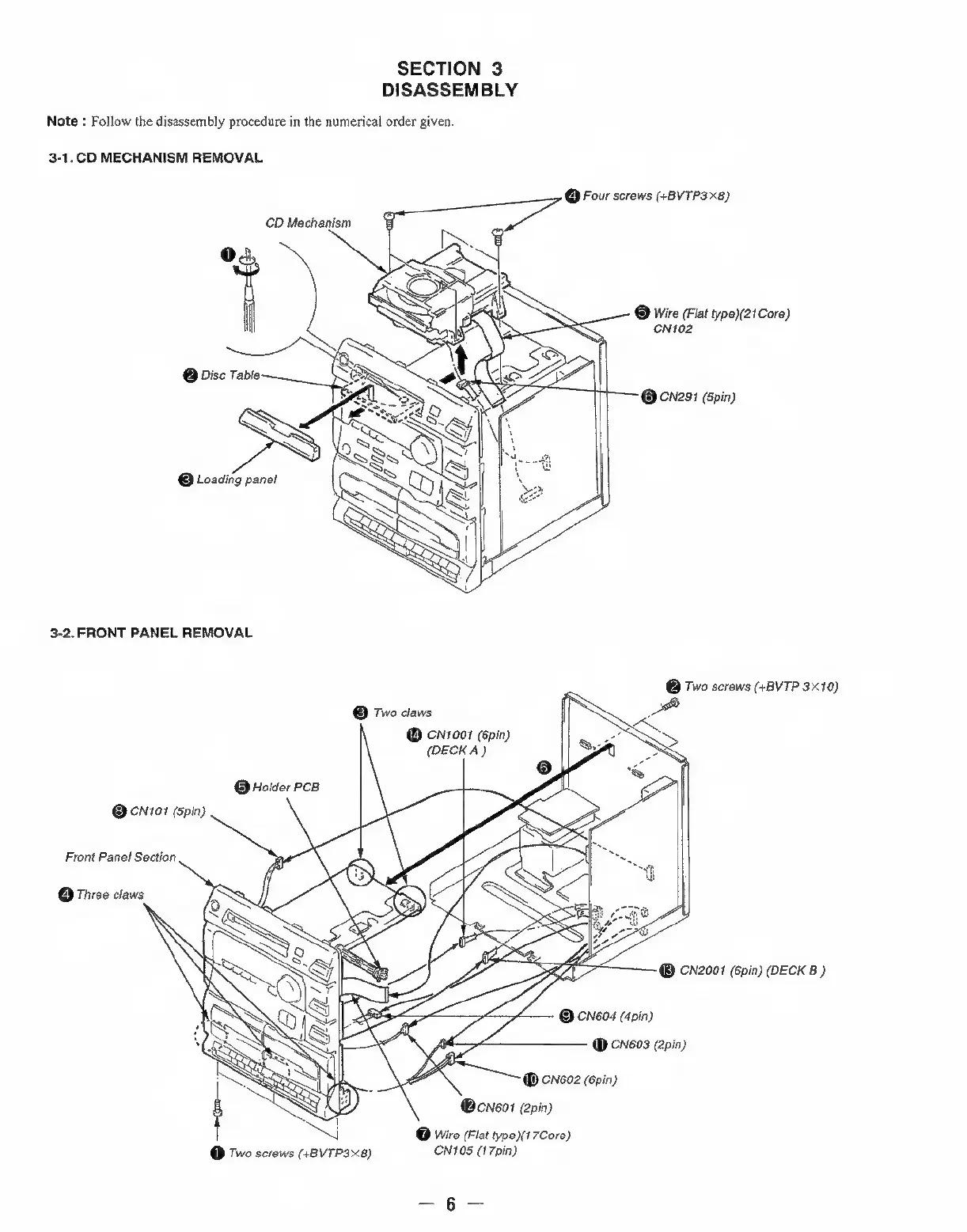

3-1. CD MECHANISM REMOVAL
@ Four screws (+BVTP3X8)
CD Mechanism
Wire (Flat type)(21Core)
CN102
@cnz291 (Spin)
© Loadirig panel
3-2. FRONT PANEL REMOVAL
@ Two screws (+BVTP 3X10)
© Two claws ie
@CN101 (Spin)
Front Panel Section
@ Three claws
@® €N2001 (6pin) (DECK B )
© CN604 (4pin)
® cn603 (2pin)
@ CN602 (6pin)
@ecneot (2pin)
—~Gn
I
Pei @ Wire (Flat type)(17Core)
@ Two screws (+BVTP3X8) CN105 (17pin)
6s
