Sony HCD-HDX265 - SERVICE PROCEDURES: BOARD AND HARNESS; Main Board Service Position; Harness Setting Checks

8
HCD-HDX265/HDX266/HDX267W/HDX465/HDX466/HDX665

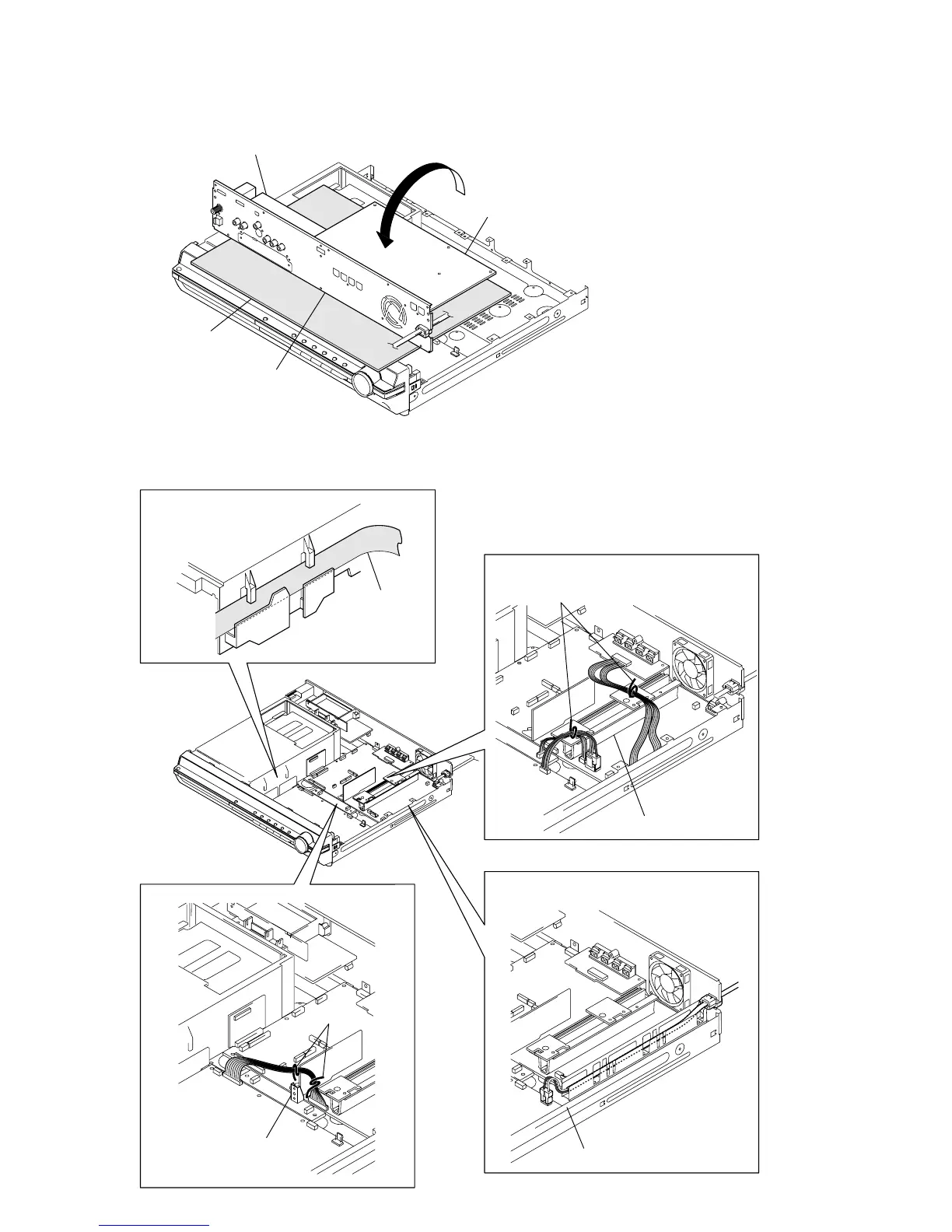

HARNESS SETTING
MAIN BOARD SERVICE POSITION
MAIN board
IO board
back panel
insulation sheet
1 Remove the back panel with IO board .
2 Remove the MAIN board.
3 Assemble the MAIN board to back panel block.
4 Reverse the back panel block.
Check not touch the heat sink.
lead pin
lead pin
flexible wire
Check not touch
the heat sink.
Check not touch the chassis.
