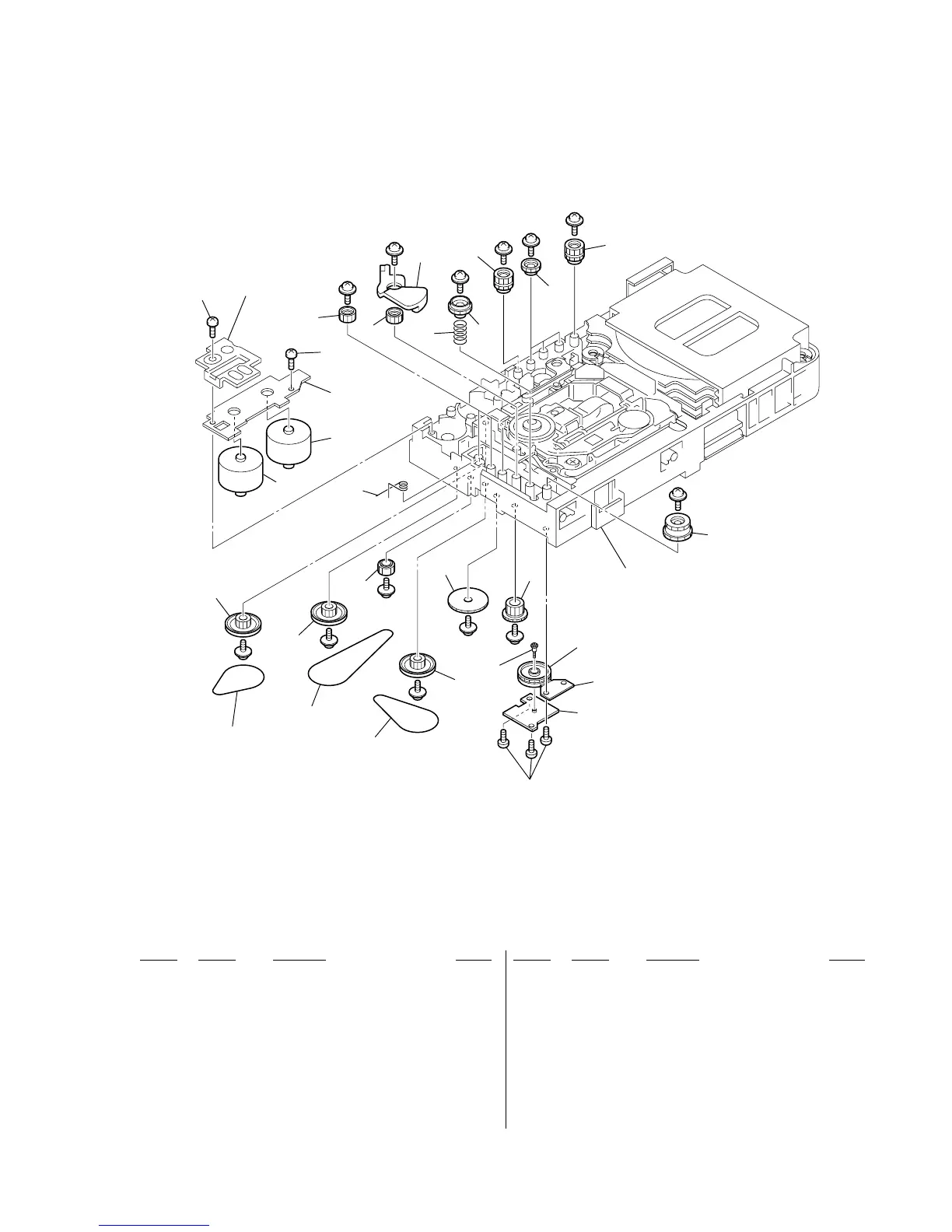

Sony HCD-HDX265 - DVD MECHANISM DECK EXPLODED VIEWS (CONTINUED); DVD Mechanism Deck Section-2 Exploded View

91
HCD-HDX265/HDX266/HDX267W/HDX465/HDX466/HDX665
7-5. DVD MECHANISM DECK SECTION-2
(CDM81C-DVBU101)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 4-251-868-01 BELT (SUB TRAY)
202 4-251-869-01 BELT (MAIN TRAY)
203 4-251-850-01 GEAR (MAIN TRAY 1)
204 4-251-873-01 SPRING (MODE), COMPRESSION
205 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
206 4-251-872-01 SPRING (LEVER), TORSION
207 4-251-870-01 BELT (BU)
208 4-251-853-01 PULLEY (BU)
209 4-251-834-01 LEVER (MAIN TRAY)
210 4-251-852-01 GEAR (MAIN TRAY 3)
211 4-251-856-01 GEAR (BU2)
212 4-251-841-01 GEAR (SUB TRAY 1)
213 4-251-854-01 GEAR (BU1)
214 4-251-842-01 GEAR (SUB TRAY 2)
215 4-251-851-01 GEAR (MAIN TRAY 2)
216 4-218-253-52 SCREW (M2.6), +BTTP
M761 A-4713-174-A MOTOR (81) ASSY (LD/ST MOTOR)
M762 A-4713-174-A MOTOR (81) ASSY (BU U/D MOTOR)
S771 1-478-552-11 ENCODER, ROTARY (MD)
#7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
not supplied
not supplied
not supplied
(MOTOR board)
201
202
203
203
204
209
214
215
212
214
210
206
216
216
216
207
208
208
208
203
213
211
205
#7
#7
#7
#7
#7
#7
#7
M761
M762
#7
#7
#7
#7
#7
#7
S771
DVD mechanism deck section-3
(CDM81C-DVBU101)
not supplied
(ENCODER board included in RELAY board
)
