Sony HCD-HDX265 - DISASSEMBLY: GEAR (BU1) INSTALLATION; Gear (BU1) Installation Precautions

HCD-HDX265/HDX266/HDX267W/HDX465/HDX466/HDX665
22

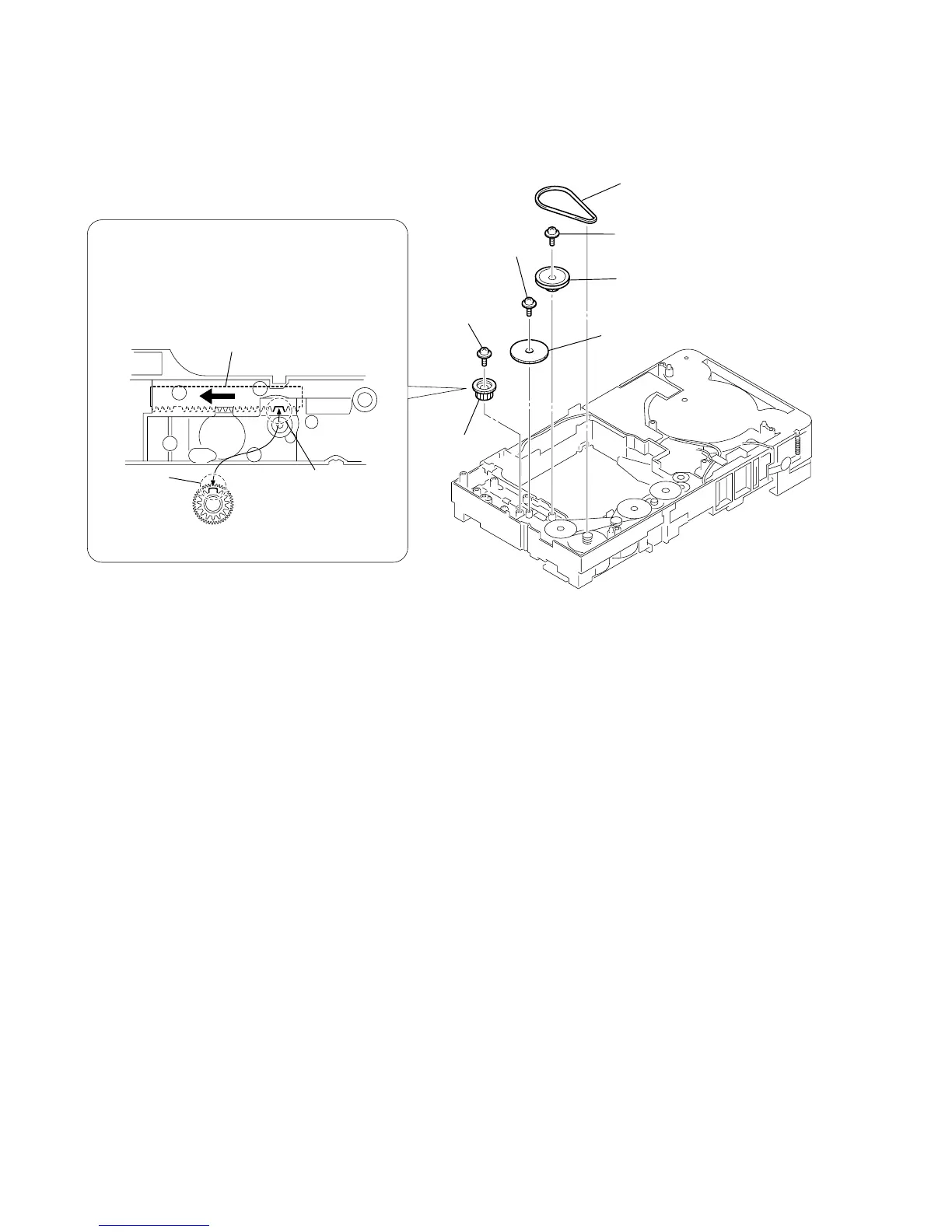

3-22. GEAR (BU1)
2 screw
(PTPWH2.6
× 8)
4 screw
(PTPWH2.6
× 8)
6 screw
(PTPWH2.6
× 8)
3 pulley (BU)
5 gear (BU1)
7 gear (BU2)
1 belt (sub tray)
gear (BU2)
cam (BU)
PRECAUTION DURING GEAR (BU2) INSTALLATION
Before re-assembling, slide the cam (BU) in the direction of
the arrow.
Assemble the gear (BU2) in such a manner that the groove
of the cam (BU) is aligned with the rib of the gear (BU2).
rib
groove
– CD mechanism deck bottom view –
