Sony HCD-HDX265 - MAIN SECTION EXPLODED VIEWS; Main Section Exploded View

89
HCD-HDX265/HDX266/HDX267W/HDX465/HDX466/HDX665

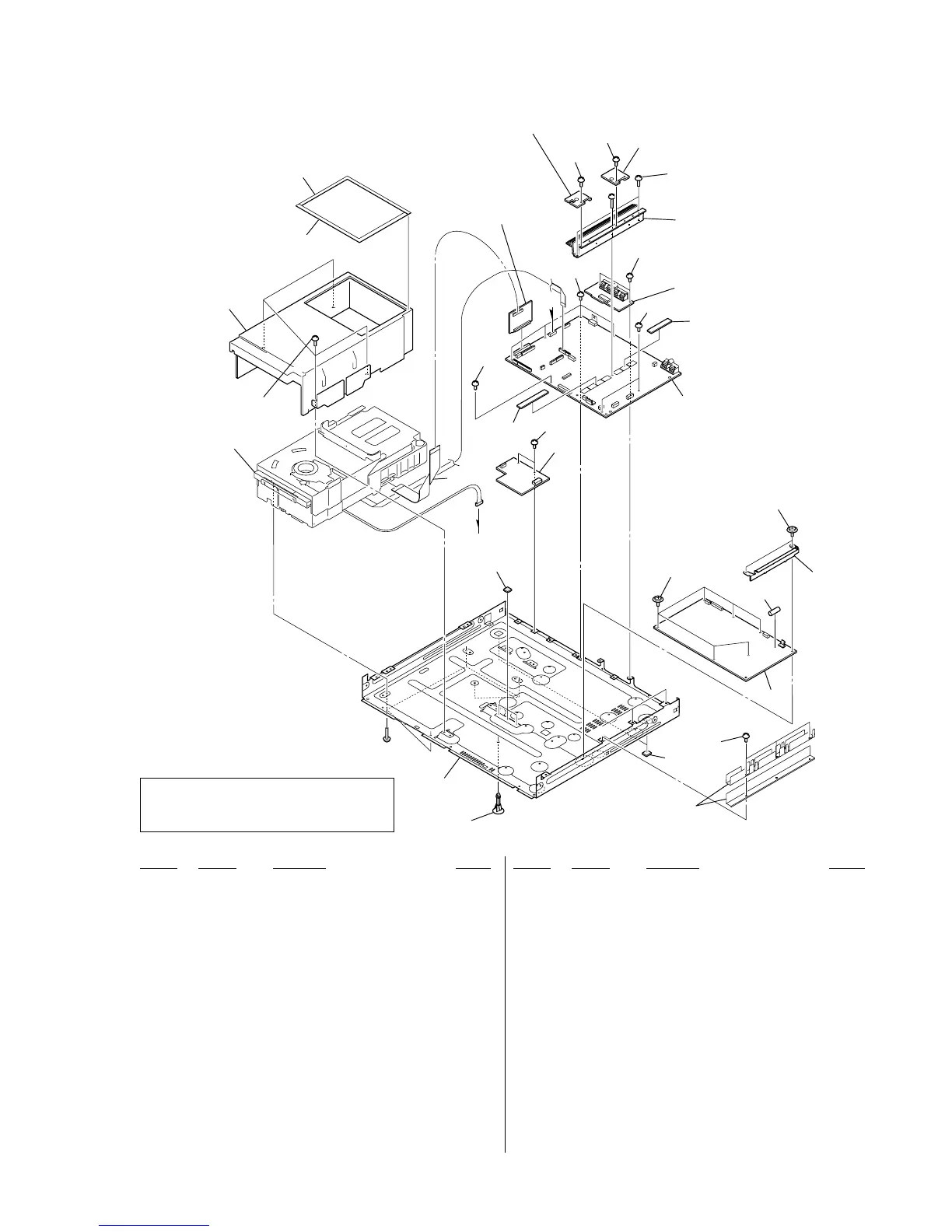

7-3. MAIN SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-232-478-31 FOOT
102 3-077-331-21 +BV3 (3-CR)
104 A-1221-025-A DMPORT BOARD, COMPLETE
105 3-077-331-11 +BV3 (3-CR)
106 2-597-972-51 SHEET, RADIATION (HDX265: US/HDX267W/
HDX465/HDX466/HDX665)
106 2-597-972-61 SHEET, RADIATION (HDX266)
106 3-100-158-01 SHEET, RADIATION (HDX265: E, AUS)
107 2-597-972-41 SHEET, RADIATION (HDX265: US/HDX266/
HDX267W/HDX465/HDX466/HDX665)
107 3-100-158-11 SHEET, RADIATION (HDX265: E, AUS)
9 108 A-1244-171-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX265: US/HDX267W)
9 108 A-1244-172-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX265: AUS)
9 108 A-1244-173-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX266)
9 108 A-1244-175-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX465/HDX466)
9 108 A-1244-177-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX665)
9 108 A-1256-691-A MAIN BOARD, COMPLETE (for SERVICE)
(HDX265: E)
109 2-677-839-01 +PWH 3X8 (SUMITITE)
111 A-1221-008-A POWER BOARD, COMPLETE (HDX265: US/
HDX266/HDX267W/HDX465/HDX466/HDX665)
111 A-1221-034-A POWER BOARD, COMPLETE (HDX265: E, AUS)
112 1-828-369-11 WIRE (FLAT TYPE) (21 CORE)
0 F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5) (8A/125V)
(HDX265: US/HDX266/HDX267W/HDX465/
HDX466/HDX665)
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3AL/250V) (HDX265: E, AUS)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
101
109
111
109
102
102
107
104
106
108
102
102
102
105
102
102
102
not supplied
(HEATSINK A board) not supplied
(HEATSINK B board)
not supplied
(SPEAKER board)
not supplied
(SIRIPARA board)
not supplied
#2
#3
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
not
supplied
F901
not supplied
DVD mechanism deck section-1
(CDM81C-DVBU101)
102
112
Note: If wire (flat type) is replaced, install it after
bending it in the same form as that before
replacement.
