Sony HCD-HDX265 - GENERAL UNIT INFORMATION; Front Panel Overview; Rear Panel Overview

9
HCD-HDX265/HDX266/HDX267W/HDX465/HDX466/HDX665
SECTION 2
GENERAL
This section is extracted from
instruction manual.

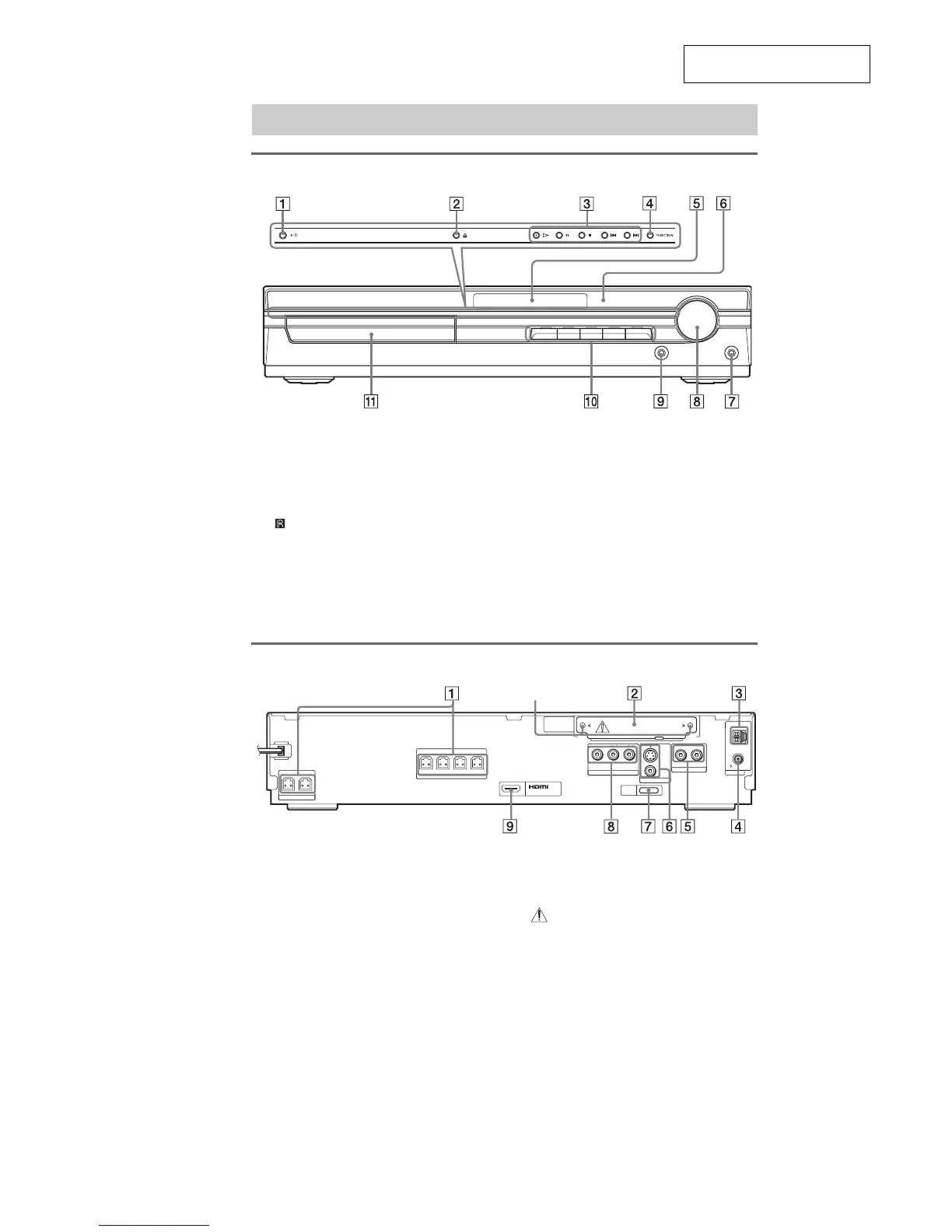

Front panel
A "/1 (on/standby)
B A (open/close)
C Disc operation
D FUNCTION
E Front panel display
F (remote sensor)
G PHONES jack
H VOLUME control
I AUDIO IN/A.CAL MIC jack
J DISC 1-5 buttons/indicators
K Disc tray
Index to Parts and Controls
Rear panel
A SPEAKER jacks
B DIR-TC1 slot for the WAHT-SD1
C AM terminal
D FM 75 Ω COAXIAL jack
E TV/VIDEO (AUDIO IN R/L) jacks
F MONITOR OUT (S VIDEO/VIDEO) jacks
G DMPORT (DIGITAL MEDIA PORT) jack
H COMPONENT VIDEO OUT jacks
I HDMI OUT jack
* CAUTION
Please do not remove the screws before
installing the WAHT-SD1.
FRONT R
CENTER WOOFER
FRONT L SUR R SUR L
MONITOR OUT
TV/VIDEO
ANTENNA
SPEAKER
DIR-TC1
SPEAKER
COMPONENT VIDEO OUT
COAXIAL
AM
FM
75
RLAUDIO IN
YP B /C B P R /C R
VIDEO
(DVD ONLY)
S VIDEO
(DVD ONLY)
(DVD ONLY)
OUT
DMPORT
Screws*
