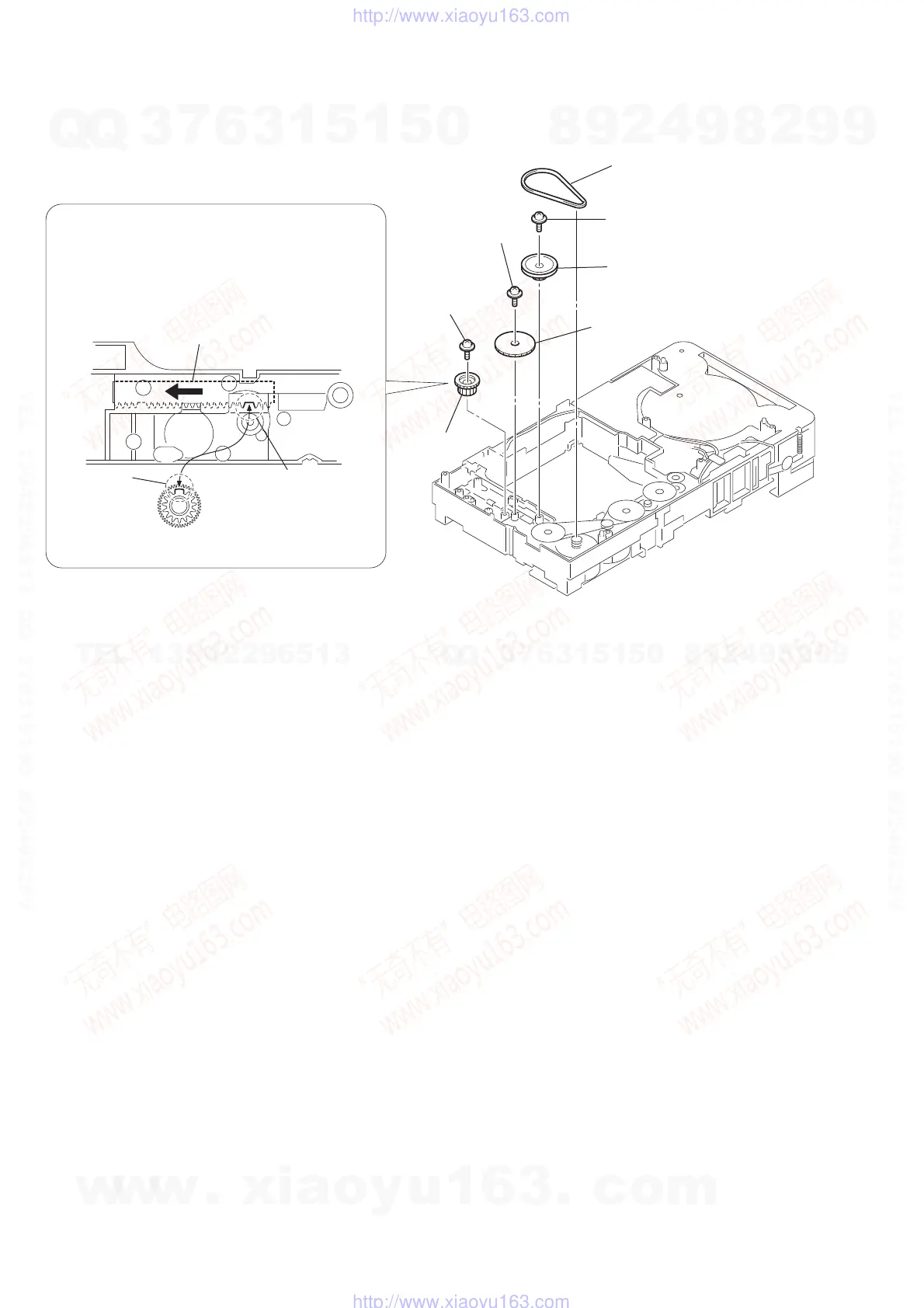

3-20. GEAR (BU1)
screw
(PWH2.6 × 8)
screw
(PWH2.6 × 8)
screw
(PWH2.6 × 8)
pulley (BU)
gear (BU1)
gear (BU2)
belt (sub tray)
gear (BU2)
cam (BU)
PRECAUTION DURING GEAR (BU2) INSTALLATION
Before re-assembling, slide the cam (BU) in the direction of
the arrow.
Assemble the gear (BU2) in such a manner that the groove
of the cam (BU) is aligned with the rib of the gear (BU2).
rib
groove
