82
HCD-HDX275/HDX277WC/HDX279W/HDX475/HDX576WF/HDX675
51 2-892-548-01 KNOB (VOL)
52 3-278-567-03 PLATE (DCR), ORNAMENT (HDX675)
52 3-278-567-13 PLATE (DCR), ORNAMENT (EXCEPT HDX675)
53 3-273-728-01 BUTTON (PLAY-SP) (A, H, S, s, l, L,
FUNCTION) (EXCEPT HDX675)
53 3-273-729-02 BUTTON (PLAY) (A, H, S, s, l, L,
FUNCTION) (HDX675)
54 3-943-995-01 EMBLEM (NO.5), SONY
55 3-278-565-11 WINDOW (DCR-1), INDICATION (HDX675)
55 3-278-565-41 WINDOW (DCR-1), INDICATION (HDX576WF)
55 3-278-565-51 WINDOW (DCR-1), INDICATION (HDX475)
55 3-278-565-61 WINDOW (DCR-1), INDICATION (HDX277WC)
55 3-278-565-81 WINDOW (DCR-1), INDICATION (HDX275)
55 3-278-566-01 WINDOW (DCR-2), INDICATION (HDX279W)
56 3-282-922-01 SHEET (DCR WINDOW), ADHESIVE
57 3-278-564-23 PANEL, FRONT (DCR-1)
(HDX277WC/HDX279W/HDX576WF)
57 3-278-564-33 PANEL, FRONT (DCR-1) (HDX275: E3, AUS)
57 3-278-564-43 PANEL, FRONT (DCR-1)
(HDX275: US/HDX475/HDX675)
58 3-278-570-01 BUTTON (POWER-DCR)
59 3-087-053-01 +BVTP2.6 (3CR)
60 3-278-571-01 BUTTON (DISC)
61 3-278-572-01 INDICATOR (DISC)
62 1-828-306-11 WIRE (FLAT TYPE) (9 CORE)
63 1-828-374-11 WIRE (FLAT TYPE) (21 CORE)
64 A-1436-204-A JACK-KEY BOARD, COMPLETE
65 3-273-732-01 FILTER, COLOR
66 A-1436-203-A FL BOARD, COMPLETE
S112 1-480-136-31 ENCODER, ROTARY (12 TYPE) (VOLUME)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

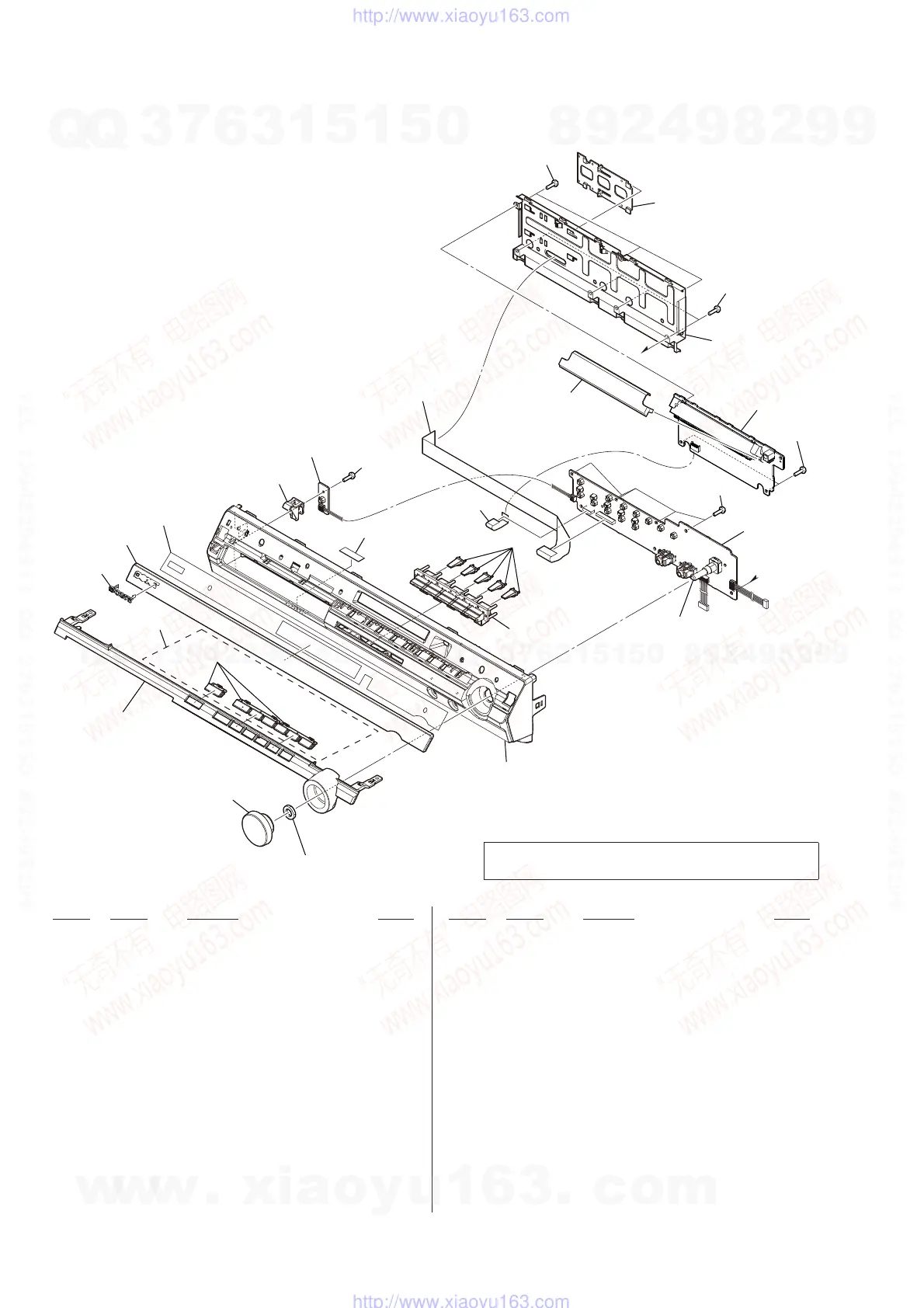

7-2. FRONT PANEL SECTION
not supplied
not supplied
59
59
65
66
59
59
64
S112
61
62
63
59
not supplied
(PW-SW board)
58
not supplied
55
56
54
53
not supplied
supplied with S112
51
52
57
60
Note: If wire (fl at type) is replaced, install it after bending it
in the same form as thet before replacement.
